AirFusion™ Inflatable Kayak Owner’s Manual
7
3. ASSEMBLY/INFLATING/DEFLATION INSTRUCTION
3.1 Assembly
Your kayak comes from the factory pre-assembled with the Bow and Stern Ribs, and Main
Inflation Chambers in place.
The rest of the kayak components will be with the kayak, but not installed; these include:
1. Front and rear inflatable thwarts: 1 each.
2. Foam Floor x 1
3. Seat x 1
4. Pole #1 x 1
5. Pole #2 x 1
6. Locking Sleeve #3 x 1
7. Pole #4 x 2
8. Pole #5 x 2
9. Pole #6 x 1

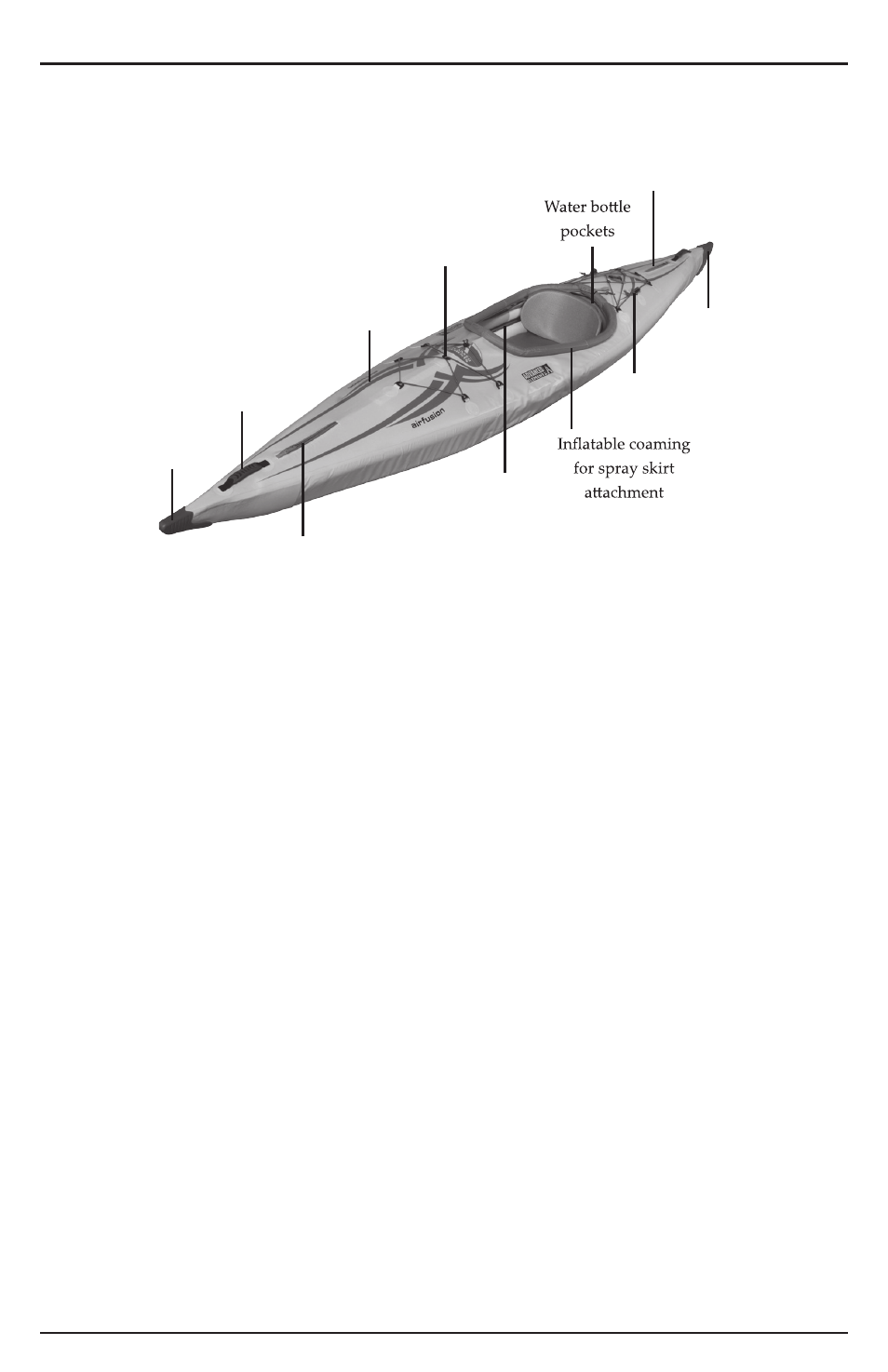

See Figure 1.
Zippered access to
below deck storage
compartment
Bungee deck
lacing
Bungee deck
lacing
Adjustable foot
brace/thwart
Molded
end cap
Molded
end cap
Rubber
molded
handle
Hybrid frame
design
Zipper lips
