490
uu Fuses u Fuse Locations
Han
d
lin
g the U
n
expected

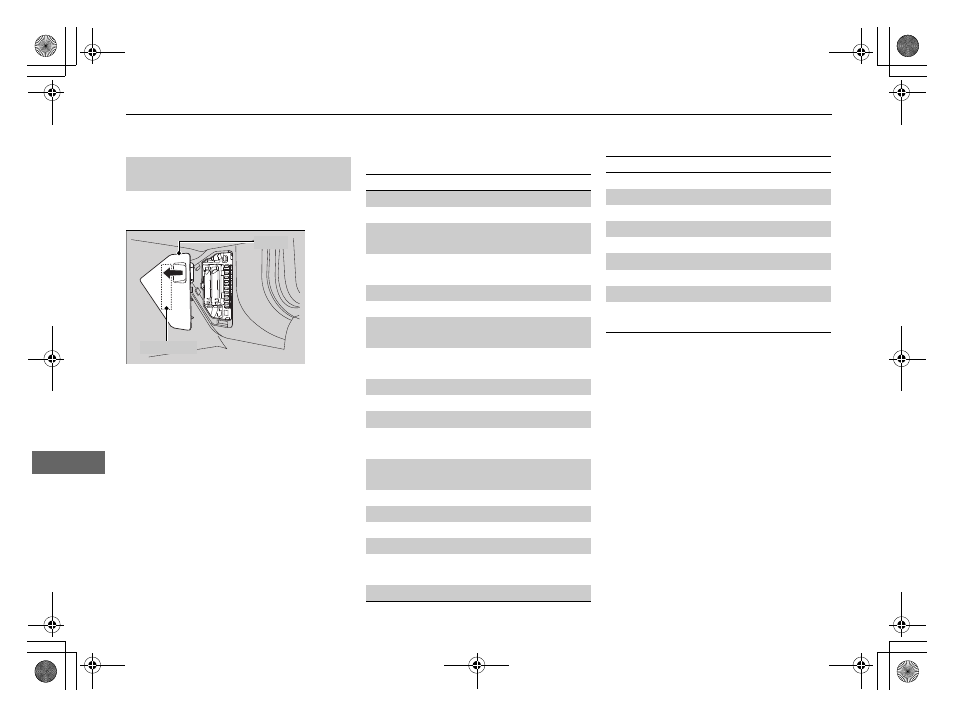

Located on the lower side panel. Take off
the cover to open.
Fuse locations are shown on the cover.
■ Passenger’s Side Interior Fuse
Box
Fuse Label
Cover
■ Circuit protected and fuse rating
Circuit Protected Amps
1 − −
2 Front Seat Heaters/AVS 20 A
3
Rear Passenger’s Side
Power Window
20 A
4
Front Passenger’s Lumbar
Support
7.5 A
5 − −
6 − −
7
Passenger’s Power Seat
Sliding
20 A
8
Passenger’s Power Seat
Reclining
20 A
9 Rear Seat Heaters * (20 A)
10 − −
11 Fly Start 15 A
12
Accessory Power Socket
(Console Compartment)
20 A
13
Accessory Power Socket
(Center Pocket)
20 A
14 AS ECU 7.5 A
15 Glove Box 7.5 A
16 − −
17 − −
18
Front Passenger’s Power
Window
20 A
19 SRS1 10 A
*1:Except ADVANCE and U.S. TECH-AUDIO
models
*2:ADVANCE and U.S. TECH-AUDIO
models
20 ABS/VSA 7.5 A
21 − −
22 e-pretensioner * (7.5 A)
23 − −
24 SRS2 7.5 A
25 Illumination 7.5 A
26 Right e-pretensioner * (20 A)
27 Heated Steering Wheel * 10 A
28 Audio AMP
30 A *1
40 A *2
Circuit Protected Amps
* Not available on all models
