Maintenance Under the Hood

u

Engine Compartment Cover

Main

tenan

ce

Engine Compartment Cover

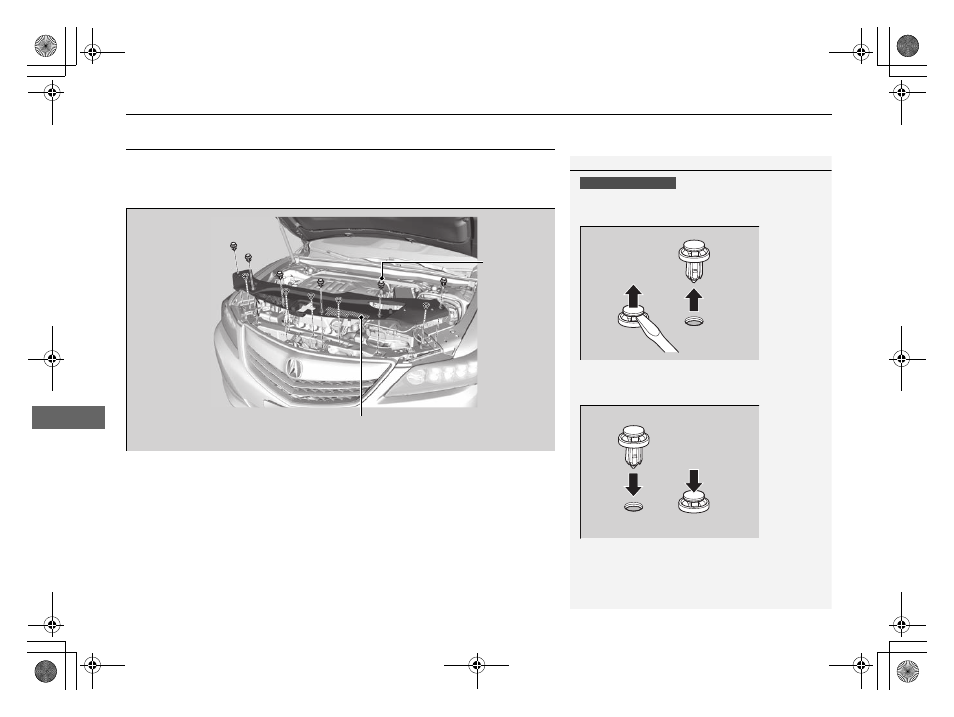

The component parts in the engine compartment are protected by a cover.
You may need to remove the cover when you perform certain maintenance work.
To remove the cover:

1

Engine Compartment Cover

Insert a flat-tip screwdriver, lift and remove the center
pin to remove the clip.

Insert the clip with the center pin raised, and push
until it is flat.

Holding clip (A-type)

Push until the
pin is flat

Engine Compartment Cover
Remove the holding clips

Clip (A)
