HANDLING THe UNexPeCTeD HANDLING THe UNexPeCTeD

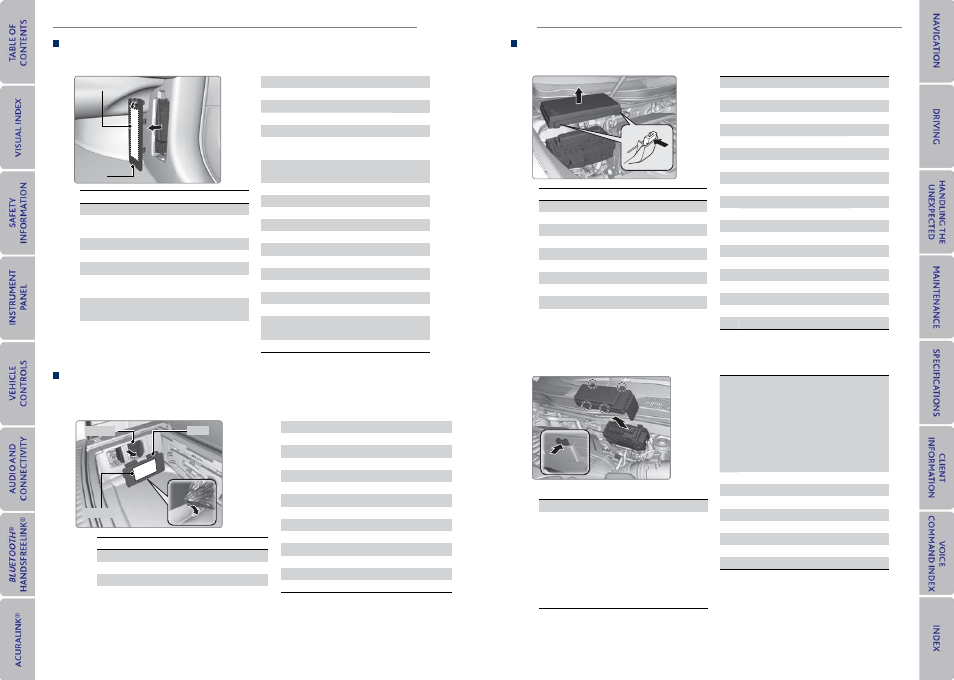

Passenger’s Side Interior Fuse Box
Located on the lower side panel. Remove the cover to access.
Circuit Protected Amps
1 Right e-pretensioner * (30 A)
2
Rear Passenger’s Side
Power Window
20 A
3 ACM 20 A
4 Front DEF * (15 A)
5 AVS/Seat Heaters 20 A
6
Front Passenger’s Power
Window
20 A
7
Passenger’s Power Seat
Sliding
20 A
8
Passenger’s Power Seat
Reclining
20 A
9 Passenger’s Lumbar * (7.5 A)
10 − −
11 HSW * (10 A)
12 − −
13 − −
14
Rear Accessory Power
Socket
20 A
15
Front Accessory Power
Socket
20 A
16 − −
17 − −
18 Premium AMP 30 A
19 SRS1 10 A
20 Passenger’s ECU 7.5 A
21 SVTM4 7.5 A
22 − −
23 − −
24 IG1 OPDS 7.5 A
25 Illumination 7.5 A
26 Left e-pretensioner * (30 A)
27
Center Accessory Power
Socket
20 A
28 AC Inverter (30 A)
rear Fuse Box
Located on the left side of the cargo area. Remove the cover using a cloth-wrapped flat-
tip screwdriver to access.
Circuit Protected Amps
1 Power Tailgate Closer 20 A
2 Trailer Small Light * (20 A)
3 − −
4 Fuel Lid 7.5 A
5 Seat Slide 20 A
6 − −
7 Rear H/Seat * (20 A)
8 − −
9 Trailer Charge * (20 A)
10 Trailer Back Light * (7.5 A)
11 Trailer Hazard * (7.5 A)
12 Rear Wiper 10 A
13 ECU RR 7.5 A
14 − −
15 − −
16 − −
17 Trailer E-Brake * (20 A)
18 Power Tailgate Motor 40 A
Fuse label
Cover
Cover
Fuse label
Fuse box
*if equipped
Circuit Protected Amps
1 − −
2 − −
3 ACG FR 15 A
4 IG1 Washer 15 A
5 IG1 VBSOL 7.5 A
6 IG1 ECU FR 7.5 A
7 − −
8 FI SUB 15 A
9 DBW 15 A
10 FI Main 15 A
11 IG Coil 15 A
12 DRL R 10 A
13 DRL L 10 A
14 INJ 20 A
15 Radio 20 A
16 Back Up 10 A
17 MG Clutch 7.5 A
18 Front Fog * (20 A)
19 − −
20 Right Headlight High Beam 7.5 A
21 − −
22 Small 10 A
23 − −
24 Left Headlight High Beam 7.5 A
25 − −
26 Right Headlight Low Beam 10 A
27 Left Headlight Low Beam 10 A
28 IGPS Oil LVL 7.5 A
29 Cooling Fan 30 A
30 Sub Fan 30 A
31 WIP Main 30 A
Located near the battery. Push the tabs to open the box.
Circuit Protected Amps
1 Main Fuse 150 A
2
VSA MTR 40 A
VSA FSR 20 A
Stop/Horn/Hazard 30 A
Rear Blower/BMS 30 A
FI Main 40 A
Rear F/B 2 60 A
AS F/B 2 60 A
EPS 60 A
3
H/L Washer 30 A
IG1B Main 30 A
R/B Main 60 A
DR F/B 1 50 A
AS F/B 1 50 A
Rear F/B 1 60 A
IG1A Main 30 A
DR F/B 2 50 A
4 STM 4 30 A
5 Front Blower 40 A
6 Rear Def 40 A
7 IG Main 1 40 A
8 Stop & Horn 20 A
9 Hazard 15 A
10 BMS 7.5 A
11 − −
engine Compartment Fuse Boxes
Located near the brake fluid reservoir. Push the tabs to open the box.
*if equipped
