4
ODSHR Outdoor Woodburning Fireplace
20002264
FP554A
SH Series
1/28/99 djt
Chase Installation
Insulation methods shown are optional
for cold climate, not a requirement for
unit operation.
FP554A

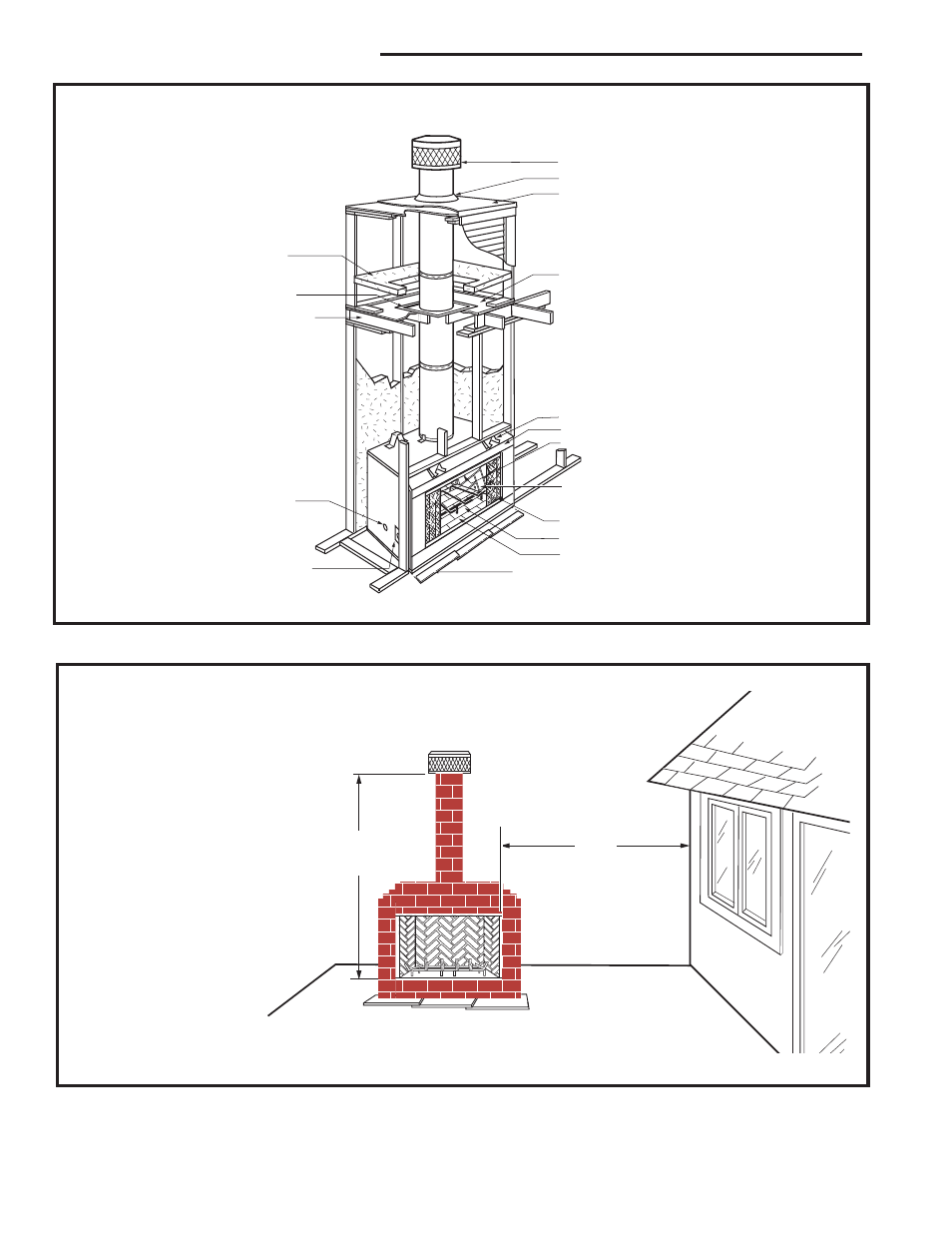

Fig. 2 Fireplace and chase parts identification.
Termination Cap
Storm Collar
Pan Flashing
Batt Insulation
(cut out around
firestop)
Firestop
Ceiling Level
Draftstop
Ledge Bracket
Surround
Damper Control
Gas Line Knockout
(both sides)
Screen
Grate
Firebox
Metal Safety
Strips (1,2 or 3)
Outside Air Cover Plate
Gas Line Access
(both sides)
FP1001
fireplace setting
1/4/00 djt
NOTE: If the fireplace is a
freestanding unit, it must be
located a minimum of 10'
(3m) from the opening of
the firebox to a combustible
structure.
A minimum height of 6'4"
(1.9m) measured from the
base of the firebox to the
bottom of the termination
cap is permitted.
10'
(3m)
Min.
6'4"
(1.9m)
Min.
FP1001
Fig. 3 Freestanding installation.
