Please read and save these instructions. Read carefully before attempting to assemble, install, operate or maintain the product described.
Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or
property damage! Retain instructions for future reference.

IN211104AV 9/99

Operating Instructions & Parts Manual

Models WG3000 and WG3060

Wire Feed
Arc Welder

BUILT TO LAST

TM

This line of Campbell Hausfeld wire feed
welders is designed to be used on
standard 115V household current. The
welders are equipped with infinite wire
speed control to accurately select the
proper wire feed rate needed for various
welding conditions. Internal components
are thermostatically protected.

These welders are designed for use with
Flux Core Arc Welding (Gasless) or Gas
Metal Arc Welding (Mig) process. As
delivered from the factory, this welder
can weld with .024” (.6 mm) to .035”
(.9 mm) diameter wire. A starter spool
of .035” (.9 mm) flux-cored wire and a
.040 tip are included.

Unpacking

Some welder components may be
found in the wire feed compartment.

When unpacking, inspect carefully for
any damage that may have occurred
during transit. Report any damaged or
missing items by calling (800) 746-5641.

Circuit Requirements

This equipment
requires a dedi-

cated 115 volt circuit. Refer to the
following chart for the correct circuit
breaker or fuse rating. Do not run
other appliances, lights, or tools on
this circuit while operating this
equipment. Extension cords are not
recommended. Blown fuses and tripped
circuit breakers can result from failure
to comply with this recommendation.

Components and Controls

1. Work Clamp - connect to work

piece.

2. Wire Feed Gun with .040 tip

3. Power Cord - plug into 115 volt

outlet.

4. On/Off Switch

5. Infinite Wire Speed Control -

turns clockwise to increase wire
speed and counterclockwise to
decrease wire speed.

6. Heat Selector - Selects welding

power. Four selections are possible

7. Polarity Hook-up - Attach torch

cable to (+) for MIG and (-) for flux
core wire.

Heat

Circuit Breaker or

Selector

Slow Blow Fuse

Danger means a

hazard that will

cause death or serious injury if the
warning is ignored.

Warning means a
hazard that could

cause death or serious injury if the
warning is ignored.

Caution means a
hazard that may

cause minor or moderate injury if the
warning is ignored. It also may mean a
hazard that will only cause damage to
property.

NOTE: Note means any additional
information pertaining to the product
or its proper usage.

MODEL WG3000

Low (1-2)

15 amp

High (3-4)

20 amp

Q

UA

LIT

Y

A

SSURANCE

P

ROG

RA

M

Need

Assistance?

Call Us First!

1-800-746-5641

Description

MODEL WG3060

1

1

2

2

3

3

4

4 & 6

5

5

6

7

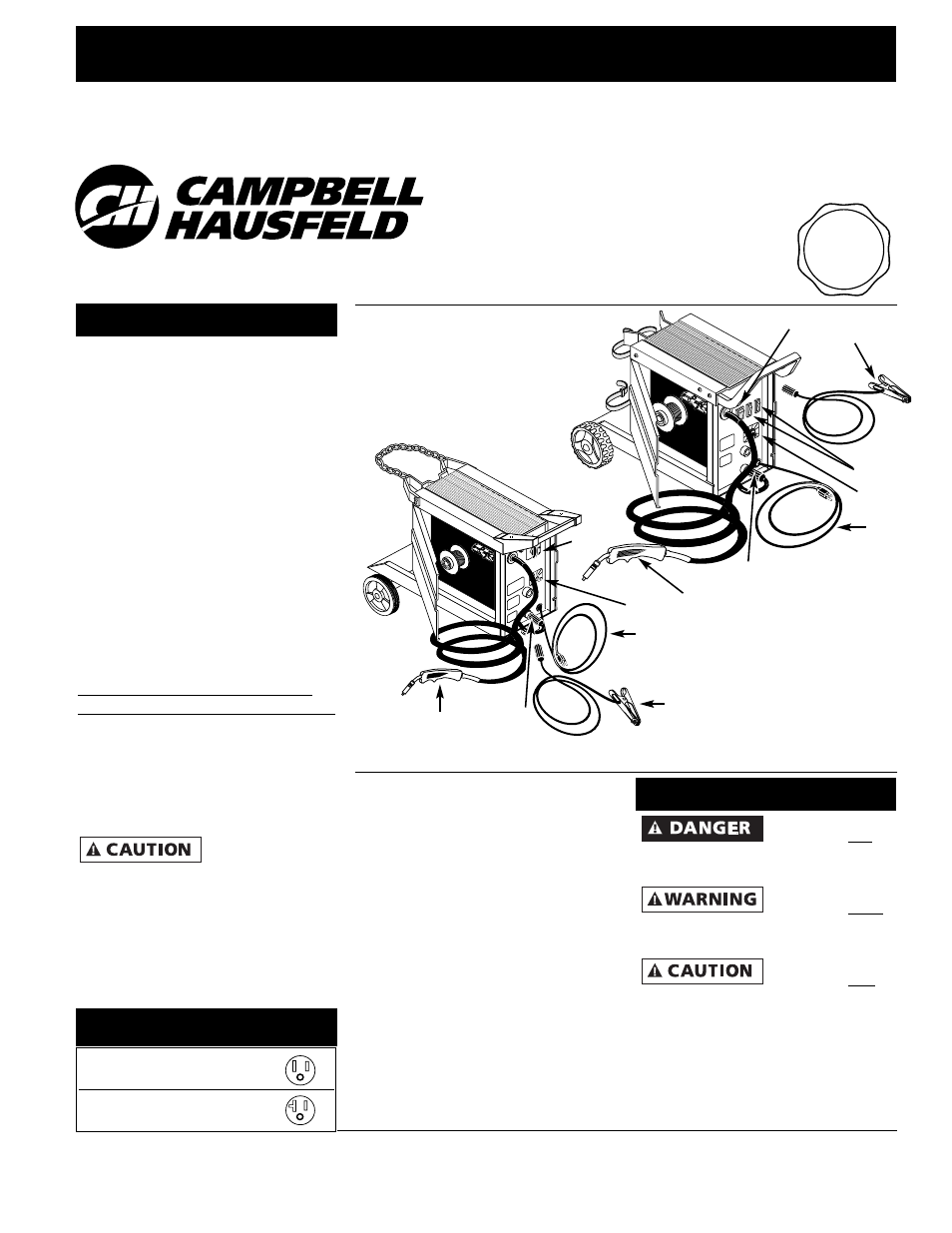

Figure 1

General Safety

© 1999 Campbell Hausfeld / Scott Fetzer

For parts, product & service information

visit www.campbellhausfeld.com
