Clarion APX4241 - Manual (Page 10)

English
10

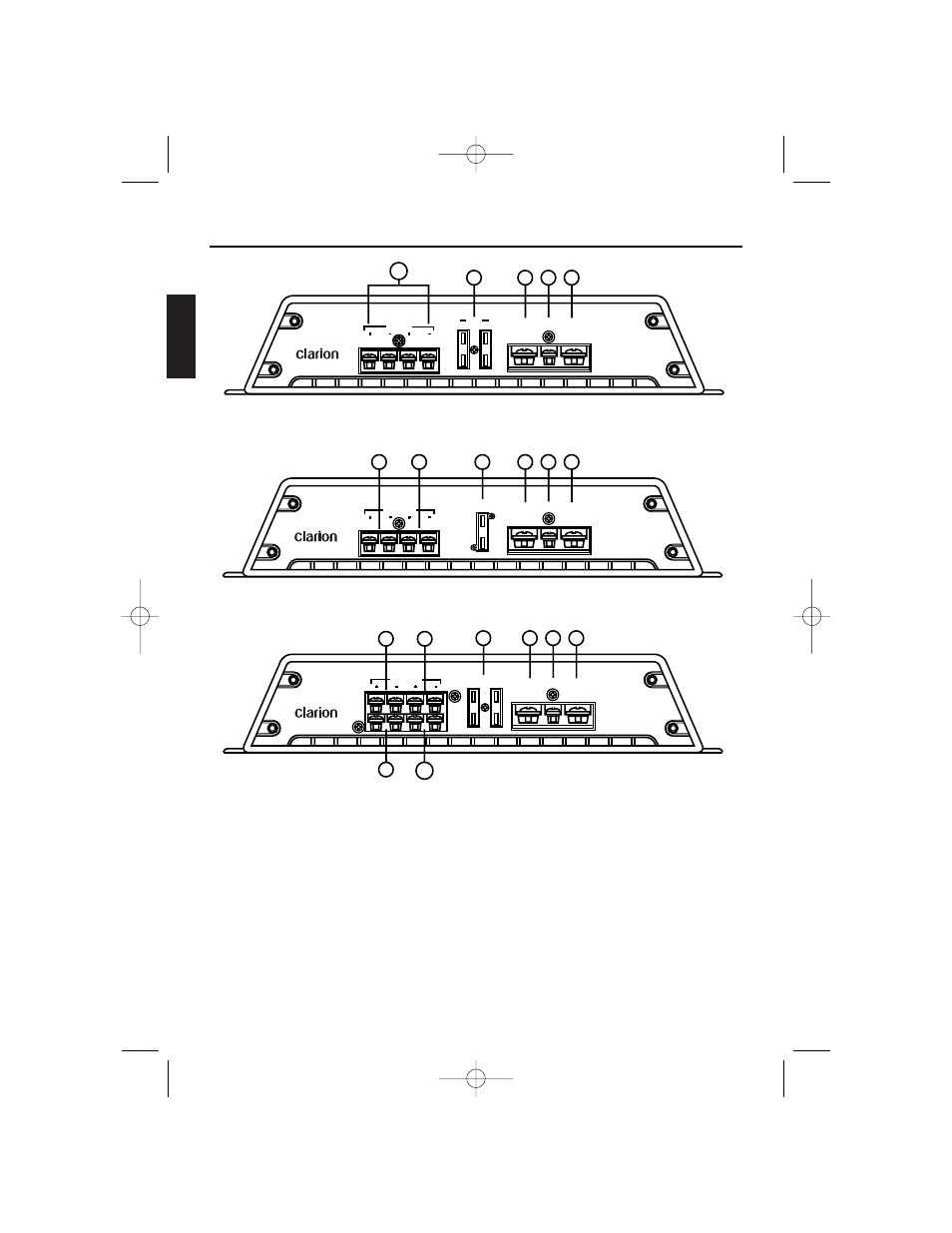

Power and speaker connections
1. Left front speaker output
2. Right front speaker output
3. Left speaker output
4. Right speaker output
5. Remote turn-on input
6. Ground input 7. Battery +12V input
8. Fuse
9. Left rear speaker output
10. Right rear speaker output
11. Mono speaker output
2 Ω MIN
4 Ω 4 Ω
FUSE
25A 25A +12V REM GND
FUSE
30A +12V REM GND 4 Ω BRIDGED
L R
8
11
7 5 6
3 4 8 7 5 6
FRONT
REAR
4 Ω BRIDGED
L R
FUSE
30A 30A +12V REM GND
1 2
9 10
8 7 5 6
APX1301 power and speaker connections
APX4241 power and speaker connections
APX2121 power and speaker connections
