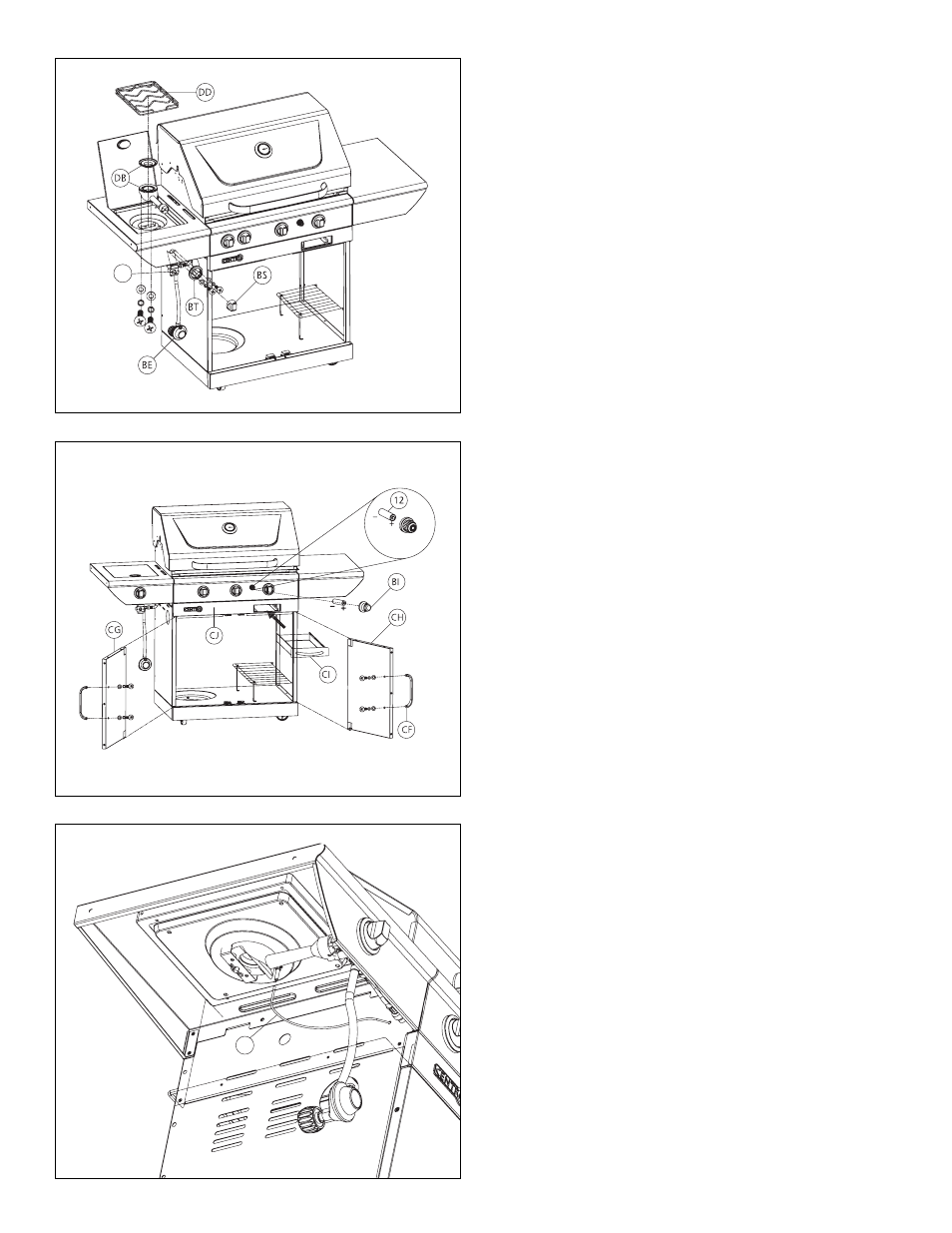

Push the side burner valve stem (BF) and mount it by using screws

and washers included on the valve bracket, threading through the

side burner control panel. Affix the Bezel (BT) onto the valve stem

using hardware provided. Push the knob (BS) onto the valve stem

with the arrow on the knob pointing upwards.

Insert the side burner (DB) into the frame. Affix the side burner to the

side burner bracket using hardware #6, #7 and #8 (x2) as shown.

Gently slide the burner tube over the orifice of the valve.

Then place the side burner cooking grate (DD) as shown.

Remove the screws and washers from the door handles (CF) and

assemble the handles to the left and right door (CG & CH) by using

the same hardware provided on the door handles.

Insert the grease tray (CI) into the upper rail (CJ) as shown.

Unscrew the igniter cap and place the AA battery #12 provided

into igniter (BI) with positive end (+) facing outward. Screw the

ignitor cap onto the ignitor as shown.

Fig. 10

Fig. 11

Attach the side burner igniter wire (BW) as shown.

Fig. 12
