Centro 3000 User Manual
Page 21
1 9
7

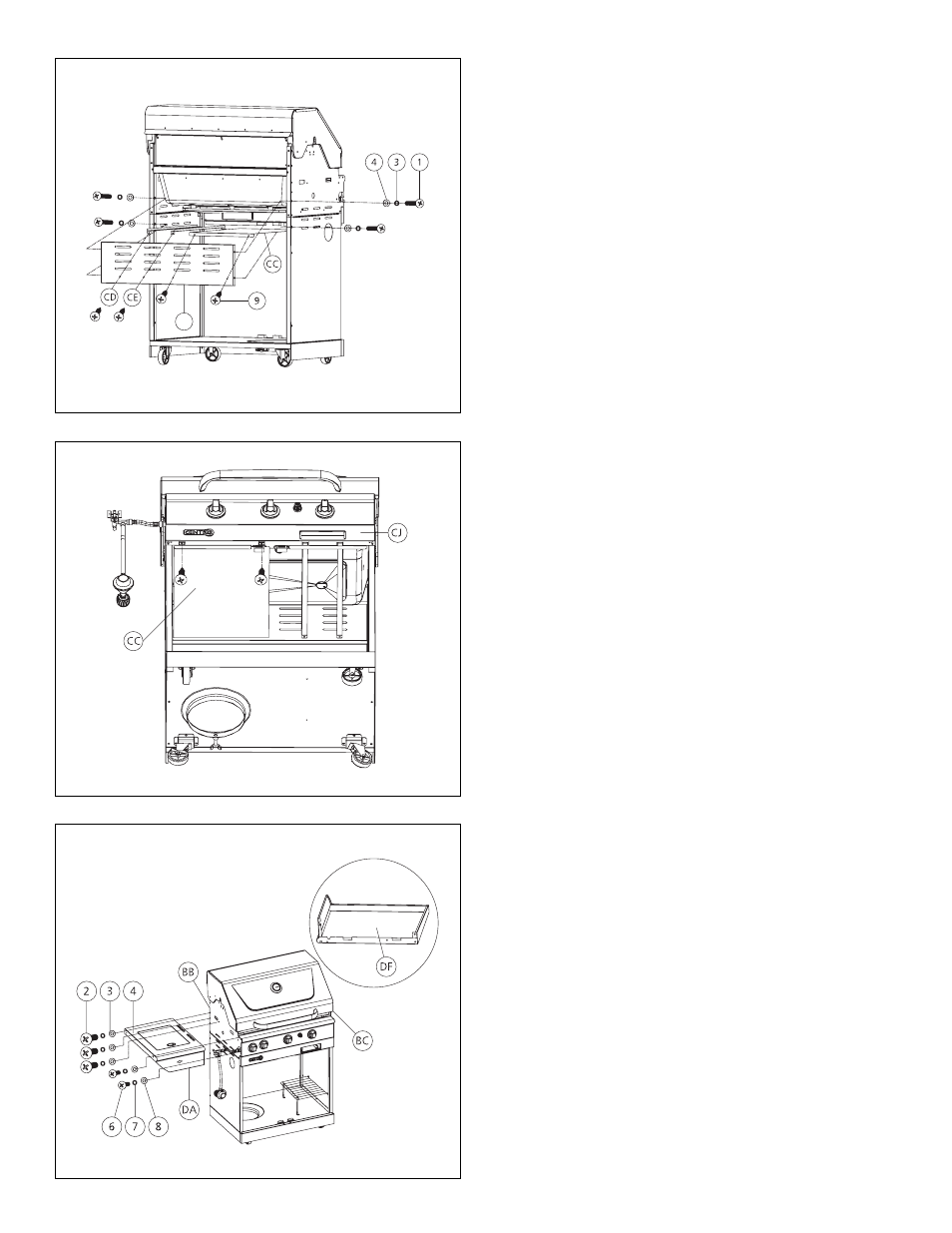

Insert the left and right grease tray bar (CD & CE) into the holes of
upper rail (CJ) as shown.
Assemble the upper rear panel (BQ) to the burner box and cart assem-
bly using hardware #1, #3 and #4 (x4).
Attach the upper rear panel (BQ) to both grease tray rails (CD & CE)
and heatshield (CC) using hardware #9 (x4) as shown.
8
Insert tank heat shield (CC) into the upper rail (CJ) next to the 2
grease tray rails (CD & CE), by using hardware #9 (x2) as shown.
9
Assemble the side burner shelf (DA) to the burner box assembly
using hardware #2, #3 and #4 (x3) to fit the 3 holes at the back
part of the left upper panel (BB) as shown.
Use #6, #7 and #8 (x2) to attach the side burner shelf (DA) through
the 2 front holes as shown with the left upper panel (BB).
Assemble the side shelf (DF) to the upper right panel (BC) by using
the same hardware.
Fig. 8
Fig. 9
BQ
Fig. 7
