How to operate your fixture

Step 1: Move slide switch on bottom of the sen-

sor to “TEST”. Set sensitivity knob to
medium (halfway) (L).

Step 2: Turn on the power to fixture. Allow fix-

ture to warm up approximately 40 sec-
onds before testing. (Lights will come on
and stay on during warm-up
period.)

Step 3: Aim sensor head toward desired detection area, maintaining a 15° down

angle to allow moisture to drain. NOTE: Maintain air spacing between
lamps and sensor head, at least 1”. Make sure sensor head is positioned
with control switches facing towards the ground.

Step 4: Walk across the detection zone at the farthest distance you wish your

detector to detect motion.

Step 5: Adjust sensitivity until you get desired results. Lights will turn off 4 sec-

onds after all motion stops.

Step 6: Move slide switch to 4 MIN or 12 MIN (AUTO mode). At dusk, lights will

operate in the AUTO setting.

How to select your desired feature

4

ENGLISH

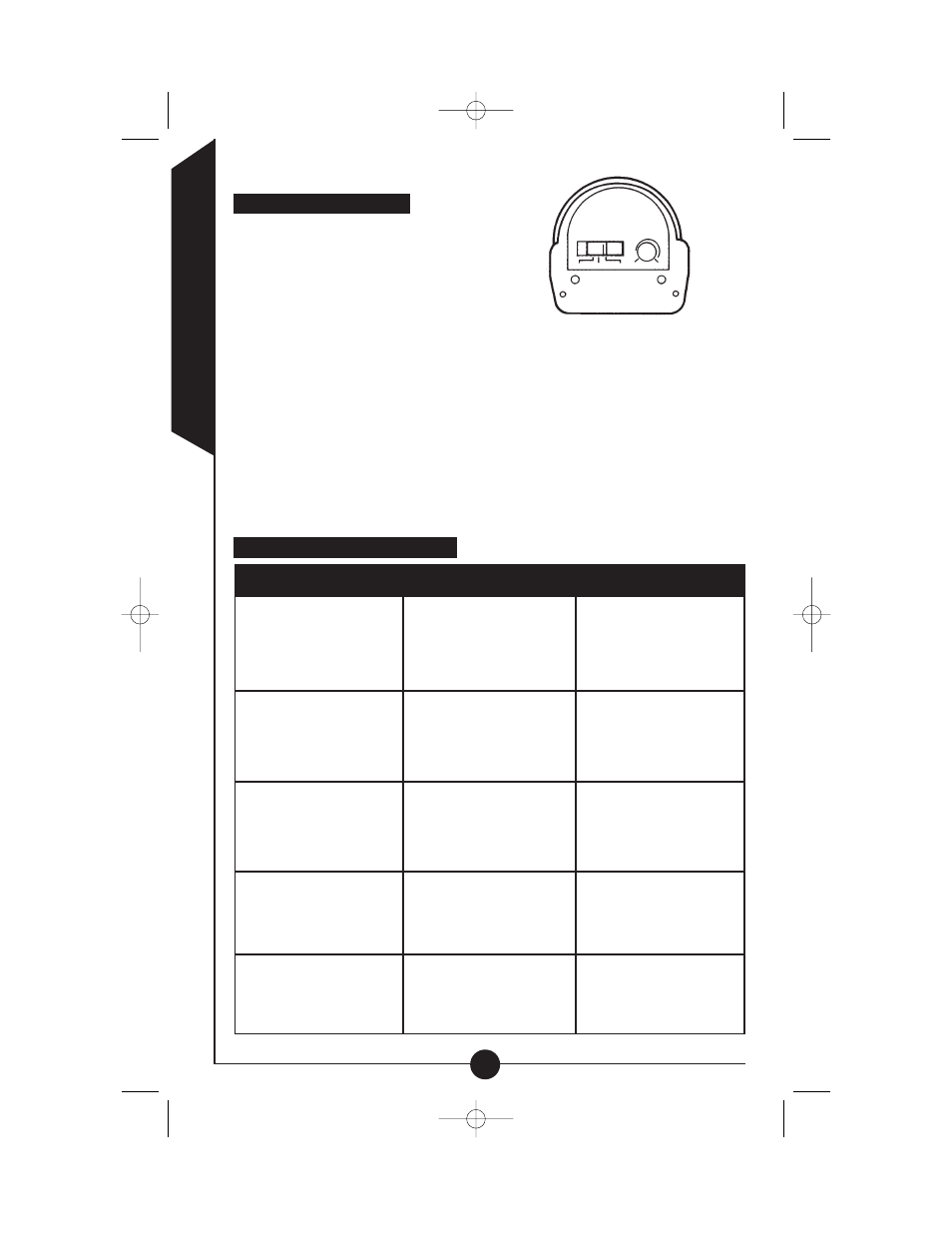

THIS IS THE

BOTTOM SIDE

OF THE MOTION

DETECTOR

L

TEST

4 MIN

12 MIN

SENSITIVITY

Auto Setting

(motion activated)

Lights should turn on with

motion only at night and

should turn off after

4 or 12 minutes.

4 MIN

or

12 MIN

Keep the power to

the fixture on.

Dusk to Dawn Setting

(activated only at night)

Lights should stay on from

dusk to dawn and then reset

to the auto setting next

dawn.

4 MIN

or

12 MIN

Turn power on and off twice

within 3 seconds.

Standard Floodlight

Setting

Lights should stay on

continuously both day and

night (must be reset

manually).

TEST

Turn power on and off twice

within 3 seconds.

Test Setting

Lights should turn on with

motion both day and night.

Lights should turn off after

4 seconds.

TEST

Keep the power to the

fixture on.

Return to Auto Setting

(motion activated)

From any of the above

settings.

4 MIN

or

12 MIN

Turn the power “OFF” for at

least 40 seconds., then

back “ON”.

Mode of

operation:

Set slide switch

on sensor to:

How to set

power switch:

MS185,MS185W I.S. 325-1417 1/7/04 3:59 PM Page 4
