Vermont Casting TBREF36 - Manual (Page 4)

10007572
TBREF Electric Fireplace
4
N
5/8" (16mm)
Recessed
Nailing Flange
G
H
Rough
Opening
Depth
L
Rough
Opening
Height
A
M
M
O K Rough Opening Width
1/2" (13mm)
5/8" (16mm)
B
J
2�����"
(60mm)
3���"
(95mm)
7�����"
(192mm)
E
F D
E
C
7472
TBREF specs
12/04
Fireplace Dimensions

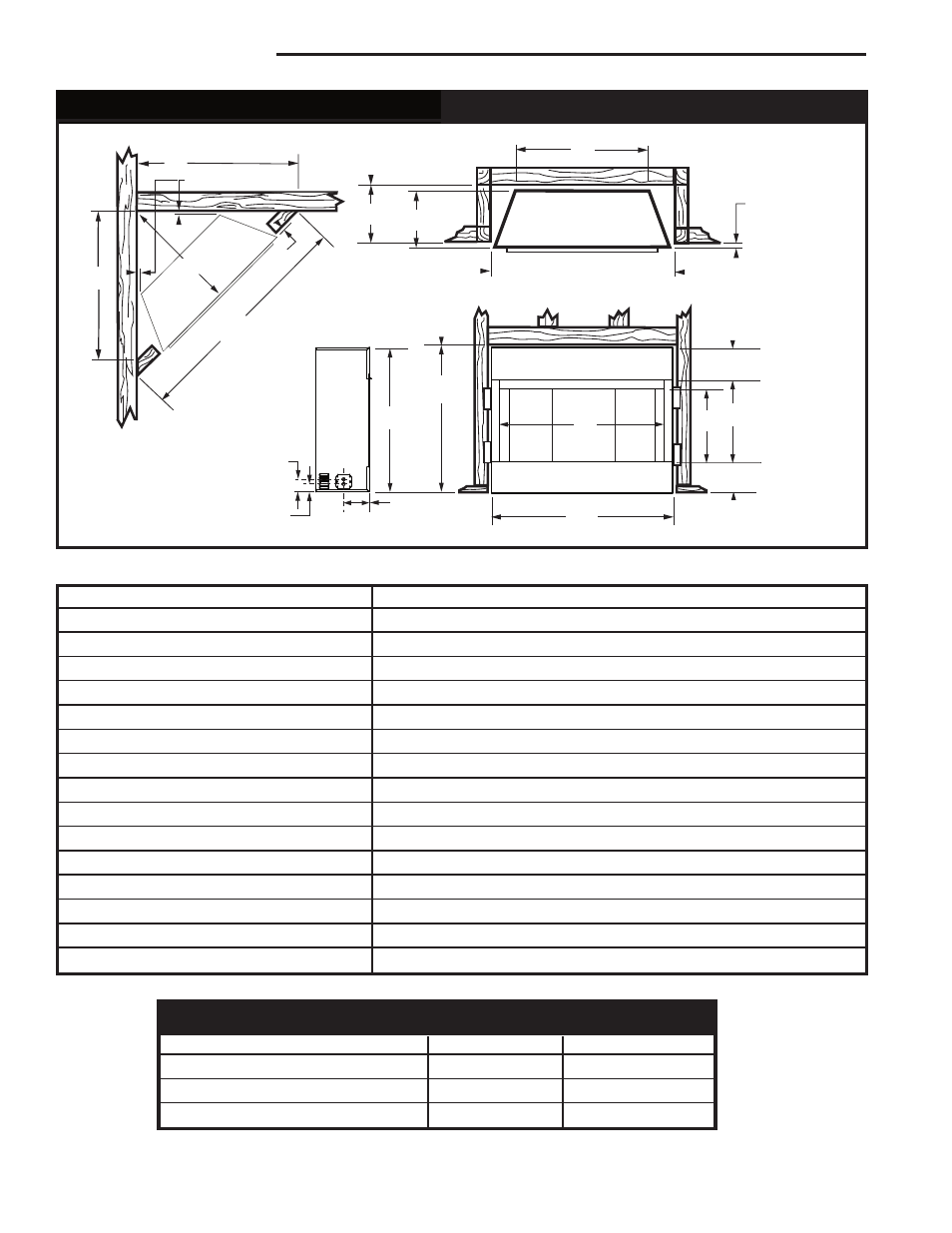

Fig. 1 Fireplace specifications and framing dimensions.
Ref. TBREF36/TBREF36NH
A 40" (1016mm)
B 36" (914mm)
C 36" (914mm)
D 21" (533mm)
E 7¹⁄₂" (191mm)
F 19³⁄₄" (502mm)
G 14" (356mm)
H 27¹⁄₂" (698mm)
Framing Dimensions
J 36¹⁄₂" (927mm)
K 41" (1041mm)
L 14" (356mm)
M 37¹⁄₂" (953mm)
N 54" 1372mm)
O 27" (686mm)
Electrical Specifications
Voltage: 120 Volt 120 Volt (NH) 240 Volt
Total Amps: 13 Amps 2 Amps 12.9 Amps
Total Watts: 1550 Watts 240 Watts 3100 Watts
Heater Rating: 1455 Watts N/A 2855 Watts
