TBREF Electric Fireplace
11
CFM Component Identification
1. Switch
2. Flame Motor
3. Light Bulb
4. Light Socket w/Wiring Assembly
5. Cable Tie Nylon 6" - 1¹⁄₈" Black
6. CFM Wire req'd

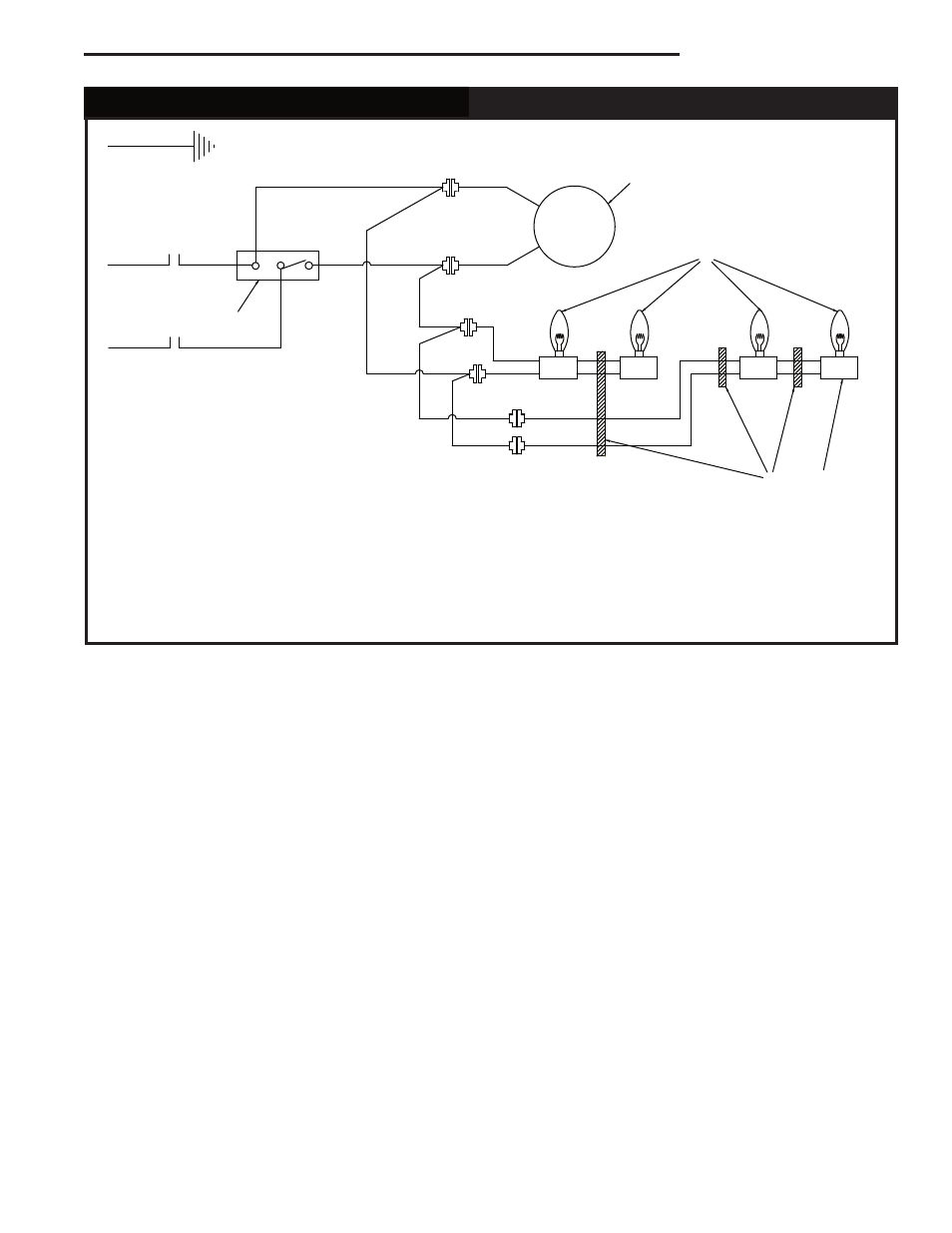

Electrical Wiring Diagram without Heater and Integral Remote Control
FP1540
Fig. 7 Wiring diagram for models without heat.
5 WHITE
2 BLACK
L1
N
G
3 BLACK
6 WHITE
1 BLACK
7 WHITE
4 BLACK
BLACK
WHITE
BLACK
WHITE
MOTOR
FLAME
3
5
4
2
1
8 WHITE
I
O
3
2
1
FP1540
BREF
no heat wiring
1/05
