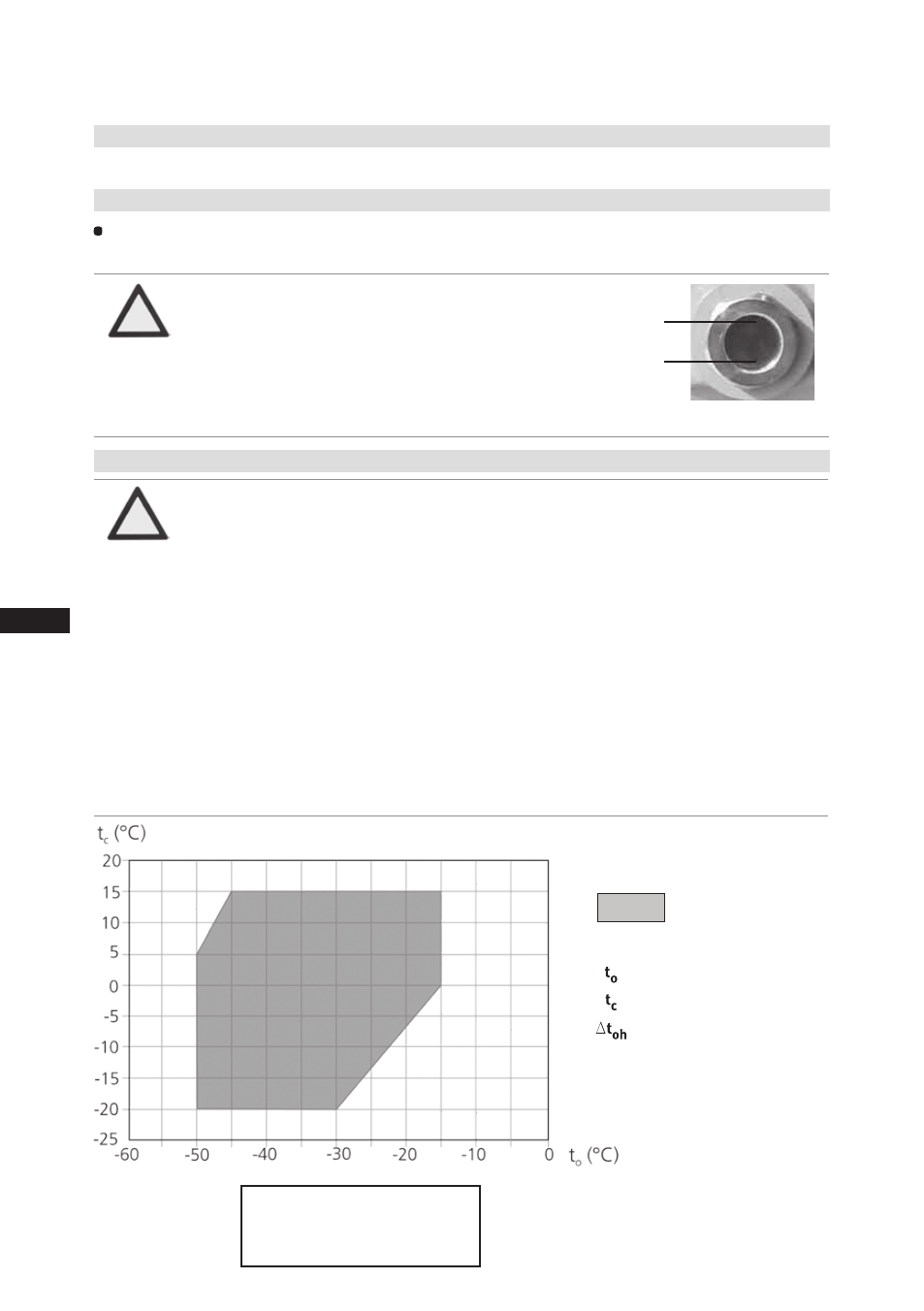

Page 8

background image

8

D
GB
F
E

96282-02.2015-DGbFEI

Evaporation temperature (°C)
Condensing temperature (°C)
Suction gas superheat (K)

R744

3| Areas of application

The compressors are filled at the factory with the following oil type:

GEA Bock C 85 E (only this oils may be used)

3.1 Refrigerants

CO

2

: R744

3.2 Oil charge

Fig. 5

Maximum admissible

operating pressure (g)

(LP/HP)

1)

: 40/55 bar

1)

LP = Low pressure

HP = High pressure

Unlimited
application range

max. oil level

min. oil level

Fig. 4

ATTENTION The oil level must be in the

visible part of the sight
glass; damage to the com-
pressor is possible if over-
filled or underfilled!

∆t

0h

= 10 K

ATTENTION Compressor operation is possible within the operating limits

shown in the diagrams. Please note the significance
of the shaded areas. Thresholds should not be selected as
design or continuous operation points.
- Max. permissible discharge end temperature 160°C.
- Max. permissible ambient temperature -30°C - +60°C
- Max. permissible switching frequency 12x /h.
- A minimum running time of 3 min. steady-state condition
(continuous operation) must be achieved.
For operation with frequency converter:
- The maximum current and power consumption must not be
exceeded. In the case of operation above the mains frequency,
the application limit can therefore be limited.

3.3 Limits of application
