3. Insert the sieve set and pour in the sieving stock.
4. Fit the TorqueMaster clamping lid.

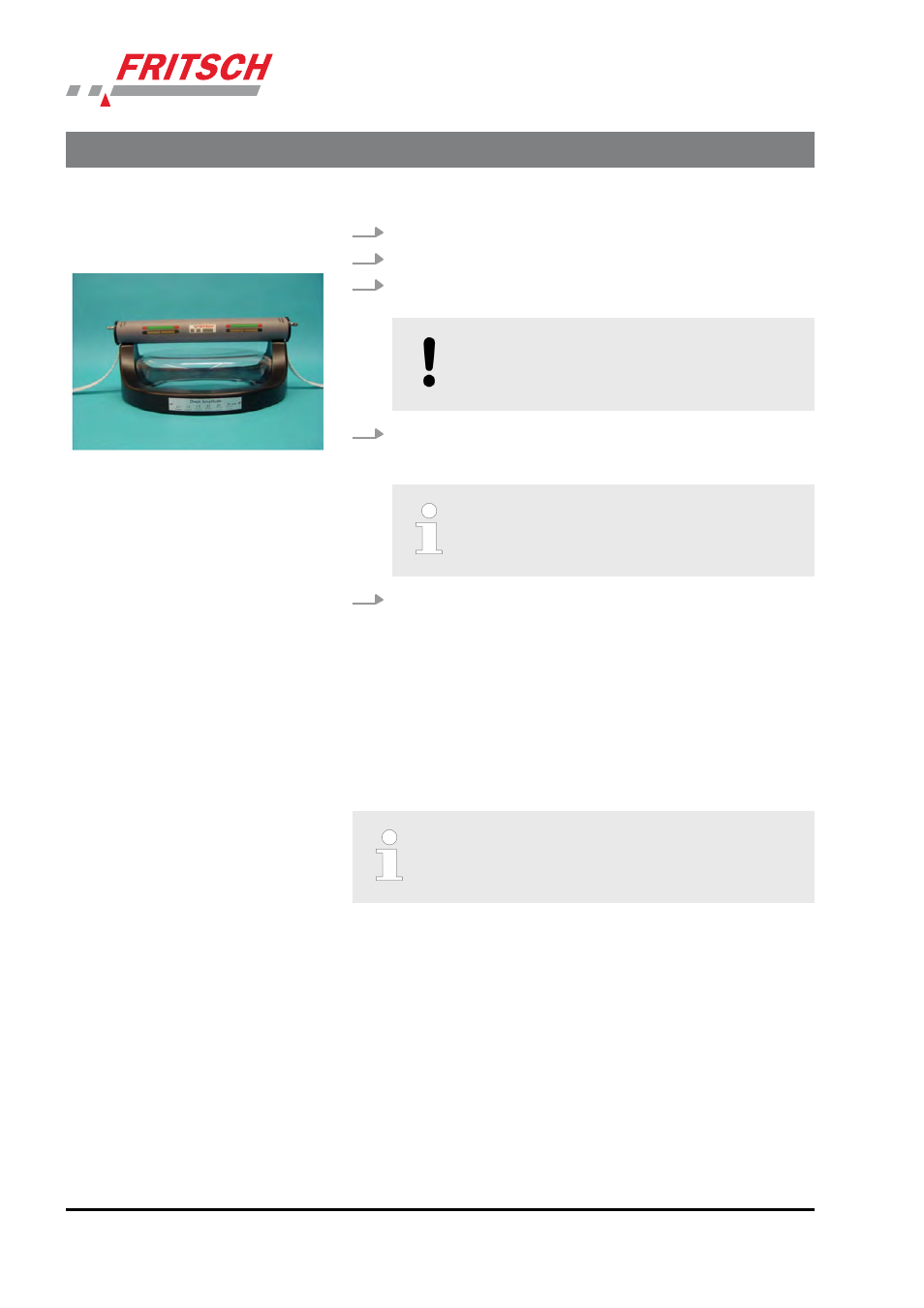

5. Place the clamping unit on the clamping lid. The clamping unit
must be fitted as centrally as possible.
NOTICE!
This symmetry is ensured by correctly adjusting and
securing the toothed belt.
6. Lightly tighten the toothed belts on both sides and move the
clamping lever upwards, as described in Ä Chapter 6.1.1 ‘Fitting
and clamping the sieves’ on page 23 under point 9.
Make sure that both indicators remain in their central
position.
7. The clamping system can now be clamped using the cordless
screwdriver.
7.4.2 Clamping the TorqueMaster
Clamping with a cordless screwdriver until it disengages applies a repro-
ducible force of ~ 1 kN to the sieve cover.
Clamping processes during which the friction clutch of the cordless
screwdriver does not disengage (e.g. due to defect, dead battery or
operating error) do not provide the desired clamping force.
The correct clamping force is only achieved if the friction
clutch of the cordless screwdriver triggers during the
clamping process.
The clamping unit must be operated with the defined disengagement
torque of the control element (cordless screwdriver). This disengage-
ment torque must be set by the clamping system manufacturer. Thus
other cordless screwdrivers, which were not set by Fritsch, must not be
used. If cordless screwdrivers with too high a torque are used, it will
cause irreparable damage to the clamping system for which no liability
can be assumed.
The use of cordless screwdrivers that merely have a lower torque will
result in the sieve stack being clamped with an insufficient clamping
force.
