Erica Synths Fusion VCF User Manual

Page 3

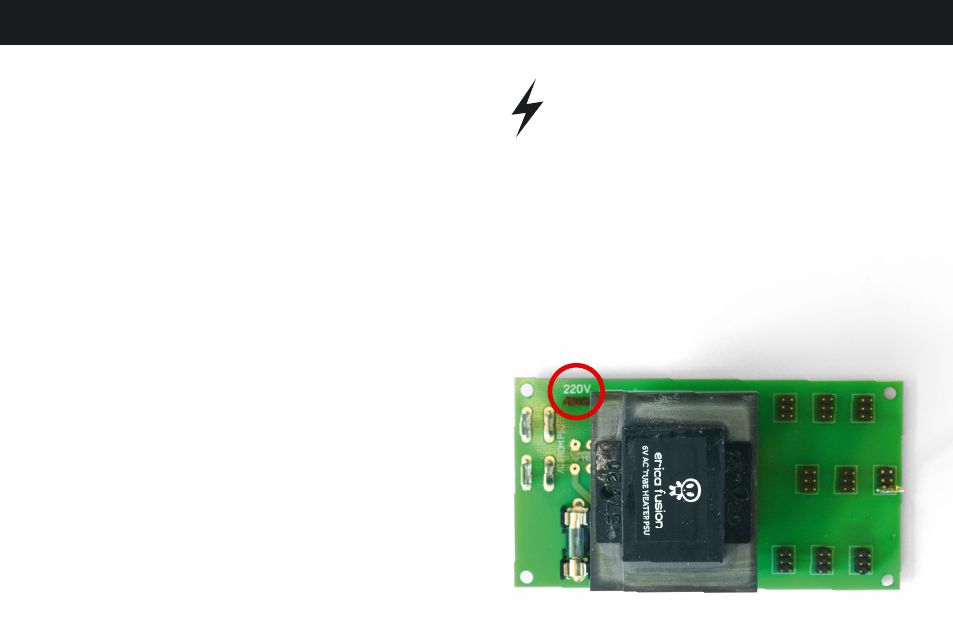

Make sure your Erica Fusion 6VAC PSU is conﬁgured for

power supply voltage in your country!

It is advised that installation is performed by

person, who has experience working with

220/110V voltages. Before installing the PSU,

make sure your modular system is turned oﬀ and discon-

nected from wall power socket.

Follow simple instructions below, and you will not go

wrong with the installation!

ERICA FUSION 6V AC PSU INSTALLATION

TECHNICAL SPECS:

FILTER TYPE: Bandpass

INPUT SIGNAL LEVEL: up to 20V ptp

OUTPUT LEVEL: 10V ptp (up to 20Vptp with extreme

resonance)

PANEL WIDTH: 16HP

MODULE DEPTH: 30mm

POWER SUPPLY: bipolar +-12V , eurorack standard and

Erica Synths 6VAC PSU

POWER CONSUMPTION: 13mA@+12V, 10mA@-12V,

300mA@6VAC

YOU GET: Erica Fusion VCF module, eurorack power cable,

6VAC power cable, user manual.

CHECK THE DEMOS OF ERICA FUSION DELAY AND OTHER

ERICA SYNTHS MODULES ON WWW.ERICASYNTHS.LV!
