Thunderclap Kit Instructions V2
Page 2 of 11
Board-mounted Parts
All of the board-mounted parts are supplied in a little plastic bag to keep them together.

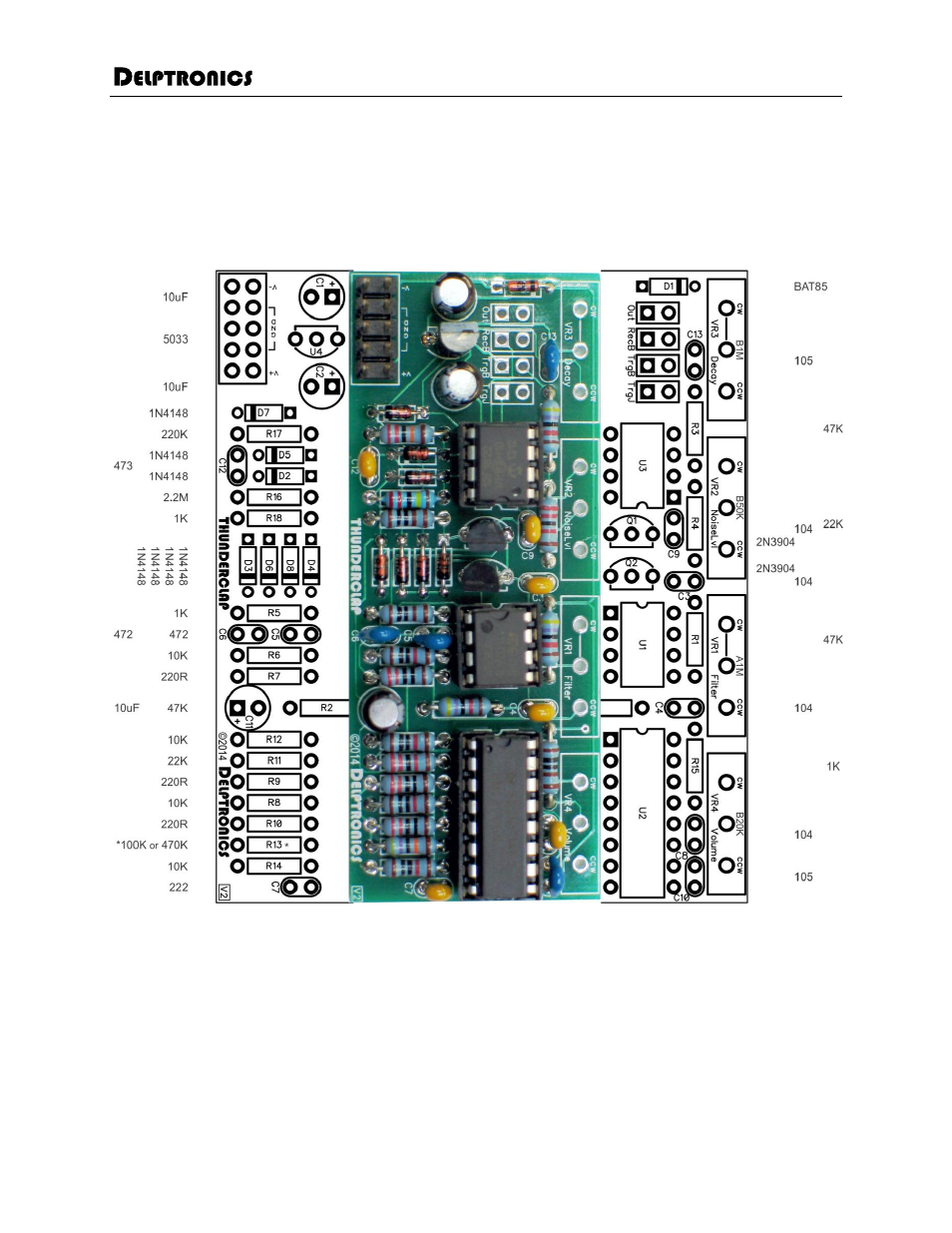

Refer to the diagram below when assembling the printed circuit board. The numbers along the top and bottom of the
diagram are the part values. Experienced kit builders may find that this page is all they need to assemble the PCB.
*R13: Use 100K for line level ≈ 2.5 VPP
Use 470K for synth level ≈ 9.4 VPP
