11

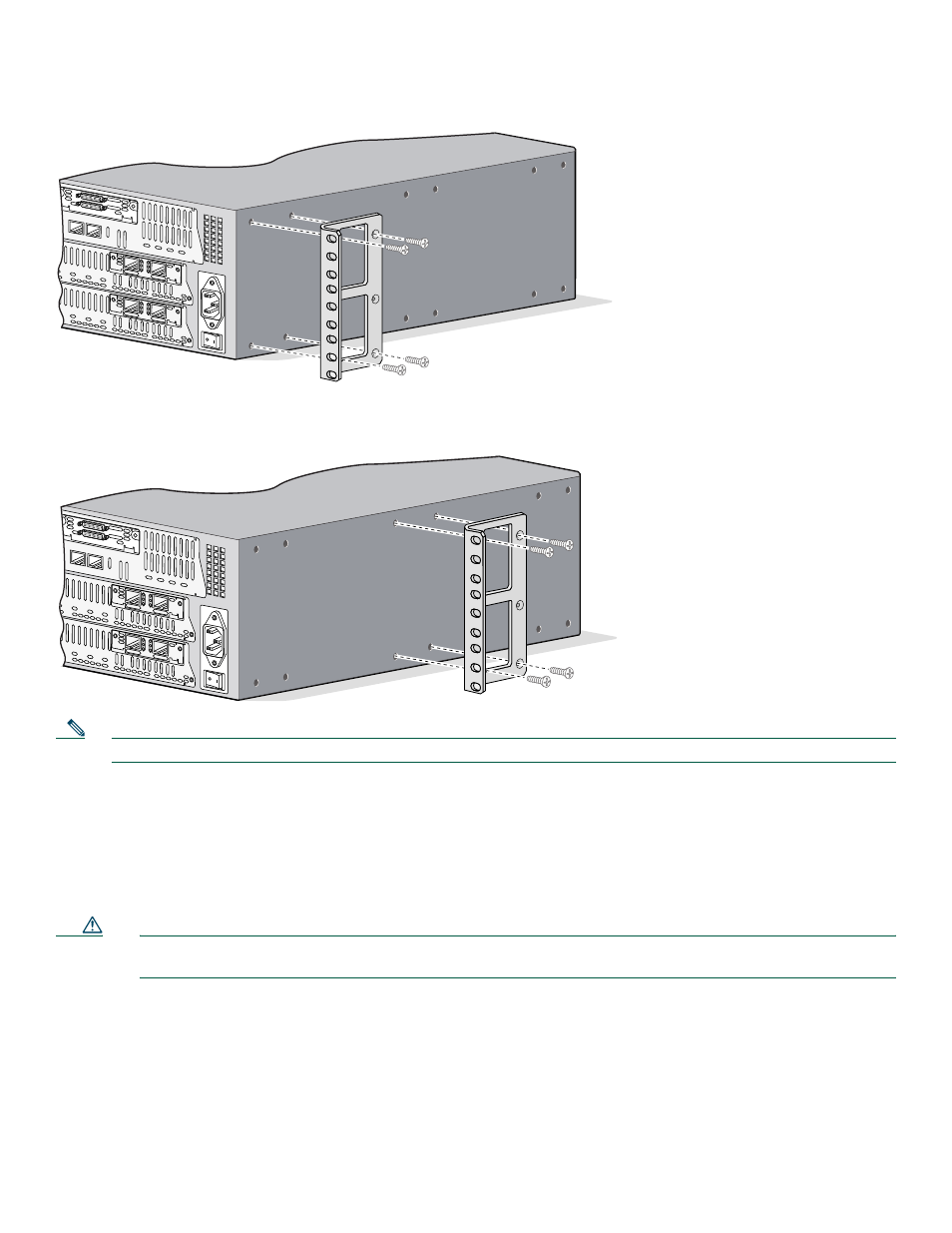

Figure 2 Bracket Installation—Back Panel Forward
Figure 3 Bracket Installation—Back Panel Forward, Center-Mount Rack
Note The brackets can also be installed with the front panel forward.
Installing the Chassis in a Rack
Install the chassis in the rack. Rack-mounting screws are not provided with the router. Use two screws for each side (supplied
with the rack).
Installing on a Desktop
Caution If you place the Cisco 3745 on a desktop, do not place anything on top of the router that weighs more than
10 pounds (4.5 kg). Excessive weight on top could damage the chassis.
Grounding the Chassis
You must connect the chassis to a reliable earth ground; the ground wire must be installed in accordance with local electrical
safety standards.
• For NEBS-compliant grounding, use AWG 6 (13 mm 2 ) wire and the ground lug provided in the accessory kit.
• For NEC-compliant grounding, use AWG 14 (2 mm 2 ) or larger wire and a user-supplied ring terminal.
63387
EN
V0
BANK 3 BANK 2 BANK 1 BANK 0
VWIC
2MFT-E1
SEE
MANUAL
BEFORE INSTALLA TION
CTRLR E2
CTRLR E1
AL
LP
CD
EN
V0
BANK 3 BANK 2 BANK 1 BANK 0
VWIC
2MFT-E1
SEE
MANUAL
BEFORE INSTALLA TION
CTRLR E2
CTRLR E1
AL
LP
CD
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN WIC 2T
63388 EN
V0
BANK 3 BANK 2 BANK 1 BANK 0
VWIC 2MFT-E1 SEE
MANUAL
BEFORE INSTALLA TION
CTRLR E2
CTRLR E1
AL
LP
CD
EN
V0
BANK 3
BANK 2 BANK 1 BANK 0
VWIC 2MFT-E1 SEE
MANUAL
BEFORE INSTALLA TION
CTRLR E2
CTRLR E1
AL
LP
CD
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN WIC 2T
