Manual Lift
1. Park the vehicle safely on level ground and set parking

brake.

2. Empty cargo by hand and unlatch cargo box by

pushing down on the cargo latch. See (A) Figure 13.

3. While holding the latch down, lift the cargo box (B).
4. Lower and allow bed to re-latch cargo box before

operating unit.

Electric Lift (Optional)
1. Park the vehicle safely and turn key to the RUN

position.

2. Raise cargo box by pressing and holding top of elec-

tric lift switch. Release switch when box is at desired
dump height or when maximum height is reached.

NOTE: A ratcheting noise will indicate cargo box is at full
extension. The same noise will also be heard when cargo
box is at the full down position. If lift capacity of the power
lift is exceeded, a ratcheting will also be heard.
3. To lower cargo box, push on bottom of electric lift

switch. Turn ignition switch to the STOP position.

4. Release brake pedal and apply pressure to the

accelerator pedal.

5. Release accelerator and apply brake pedal evenly

and firmly to slow down or stop.

Engaging Differential Lock

The Differential Lock Switch is located on the left side of
the dash panel. See Figure 13.
1. To engage, stop or slow vehicle speed and pull

knob. The differential will then lock giving continu-
ous power to both rear wheels. While in the pulled
position, the differential lock will remain engaged.

IMPORTANT: Engage the differential when the left and
right side wheels are turning at slightly different speeds.

WARNING: To avoid transaxle damage,
injury, or turf damage, go slow when
operating vehicle with differential lock
engaged as steering response is noticeably
reduced.

Disengaging Differential Lock

1. To disengage the differential lock, simply push the

knob in and the lock will disengage.

Torque must be equal on both axles for differential lock
to release. It is best to slow down and drive straight
ahead at a constant speed when disengaging the
differential.

Raising & Lowering Cargo Box

WARNING: To prevent the possibility of
bodily injury from unintentional lowering
of the cargo box, be sure vehicle is on a
level and stable surface and parking brake
is locked before raising cargo box.

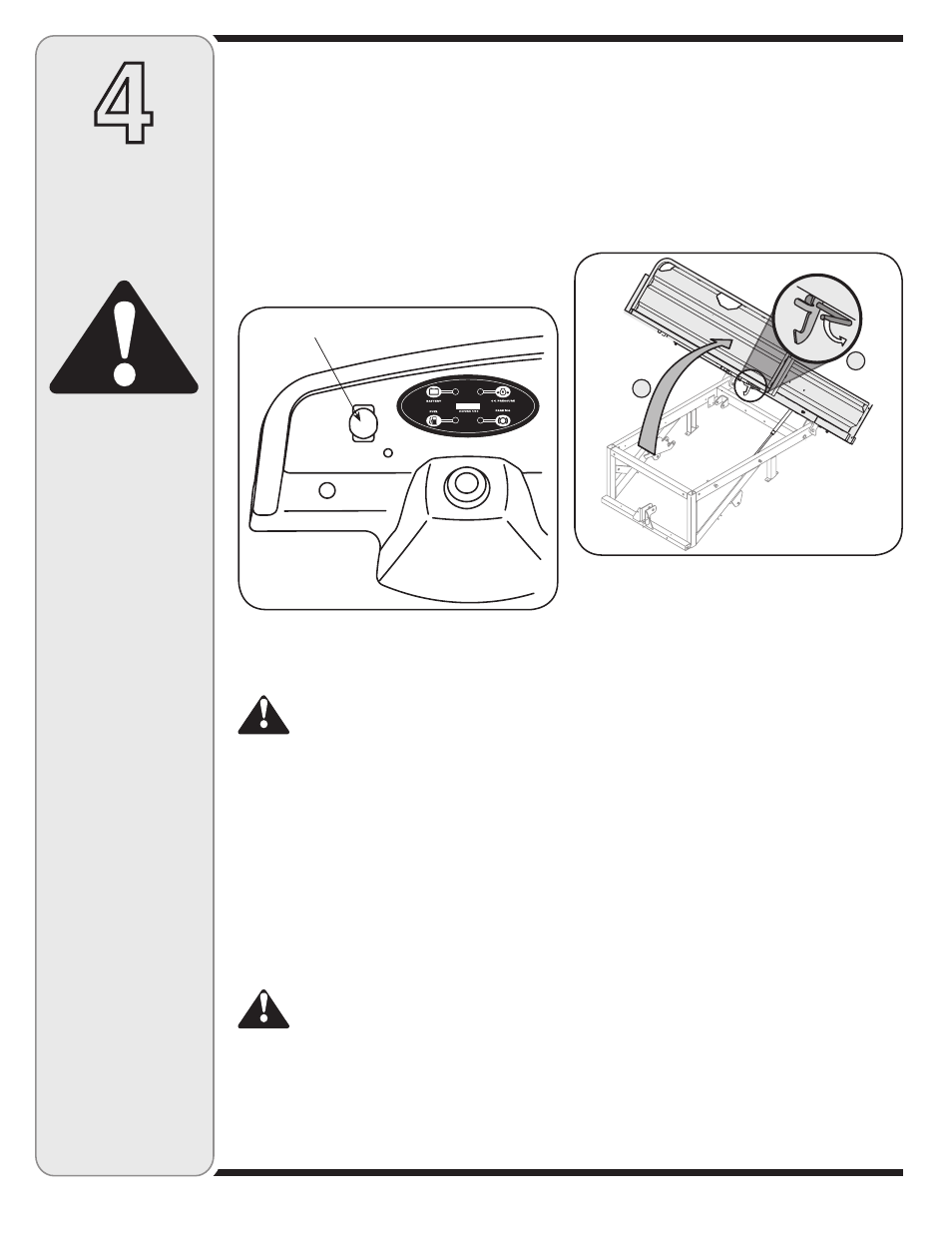

Figure 13

Differential Lock Knob

4

Operation

WARNING

To avoid transaxle

damage, injury, or

turf damage, go

slow when operating

vehicle with differen-

tial lock engaged as

steering response is

noticeably reduced.

To prevent the

possibility of bodily

injury from uninten-

tional lowering of the

cargo box, be sure

vehicle is on a level

and stable surface

and parking brake is

locked before raising

cargo box.

A

B

Figure 14
