ALEC OFF ON ON ON OFF ON
3

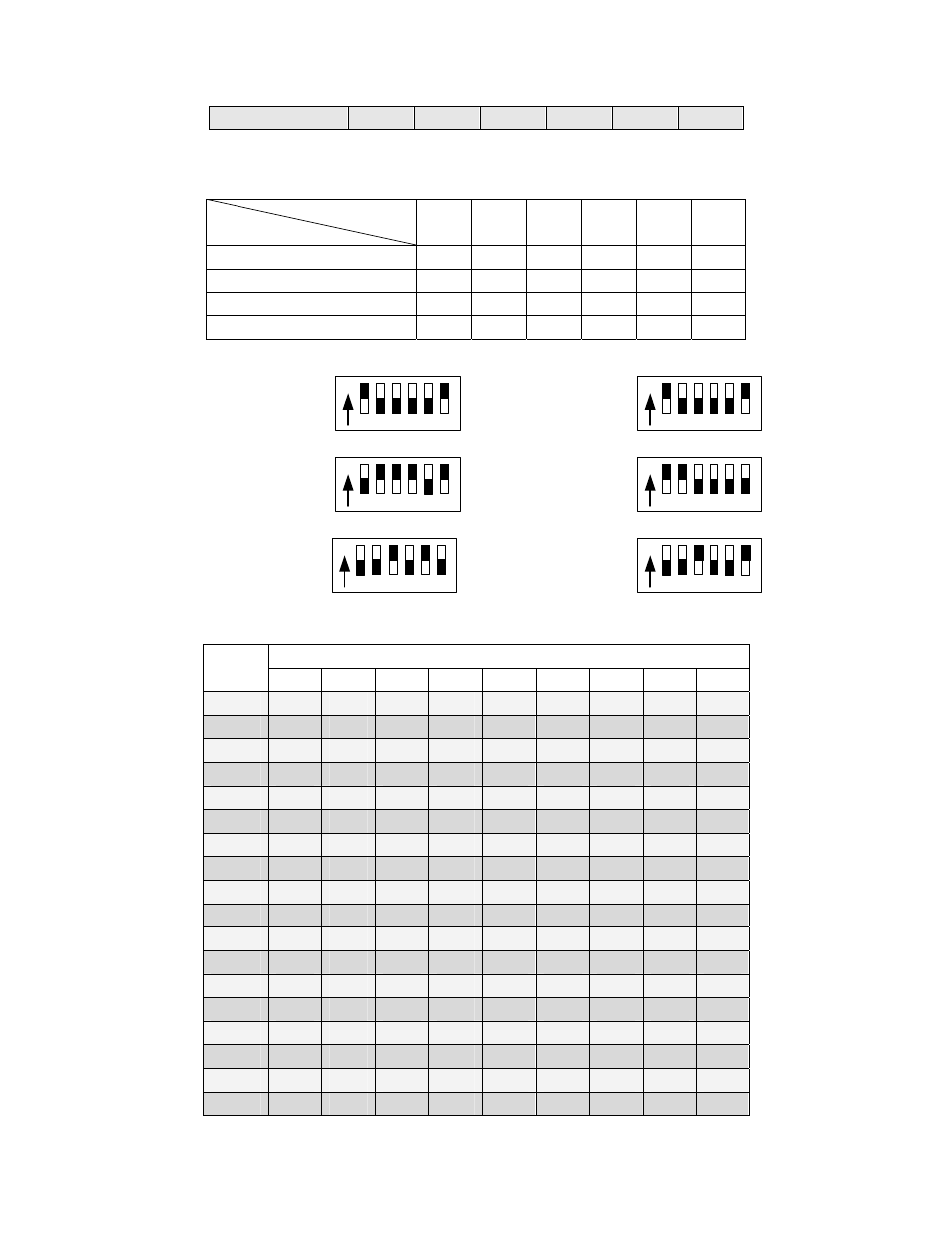

．The setting of the baud rate:
Dip-switcher
Baud Rate
1 2 3 4 5 6
2400bps OFF OFF
4800bps ON OFF
9600bps OFF ON
19200bps ON ON
AELC/ 9600Bps
ON
1 2 3 4 5 6
SAMSUNG/ 9600Bps
ON
1 2 3 4 5 6
PELCO- D/ 2400Bps
ON
1 2 3 4 5 6
PELCO- P/ 4800Bps
ON
1 2 3 4 5 6
PELCO- P/ 9600Bps
ON
1 2 3 4 5 6
B01/ 9600Bps
ON
1 2 3 4 5 6
4
．Address setting：
Dome
Address
Dip-switcher
DIP-1 DIP-2 DIP-3 DIP-4 DIP-5 DIP-6 DIP-7 DIP-8 DIP-9
1 ON OFF OFF OFF OFF OFF OFF OFF OFF
2 OFF ON OFF OFF OFF OFF OFF OFF OFF
3 ON ON OFF OFF OFF OFF OFF OFF OFF
4 OFF OFF ON OFF OFF OFF OFF OFF OFF
5 ON OFF ON OFF OFF OFF OFF OFF OFF
6 OFF ON ON OFF OFF OFF OFF OFF OFF
7 ON ON ON OFF OFF OFF OFF OFF OFF
8 OFF OFF OFF ON OFF OFF OFF OFF OFF
9 ON OFF OFF ON OFF OFF OFF OFF OFF
10 OFF ON OFF ON OFF OFF OFF OFF OFF
11 ON ON OFF ON OFF OFF OFF OFF OFF
12 OFF OFF ON ON OFF OFF OFF OFF OFF
13 ON OFF ON ON OFF OFF OFF OFF OFF
14 OFF ON ON ON OFF OFF OFF OFF OFF
15 ON ON ON ON OFF OFF OFF OFF OFF
16 OFF OFF OFF OFF ON OFF OFF OFF OFF
17 ON OFF OFF OFF ON OFF OFF OFF OFF
18 OFF ON OFF OFF ON OFF OFF OFF OFF
