23
4.5.2 Trigger Edge setting (External Mode)
Select Positive or Negative edge.

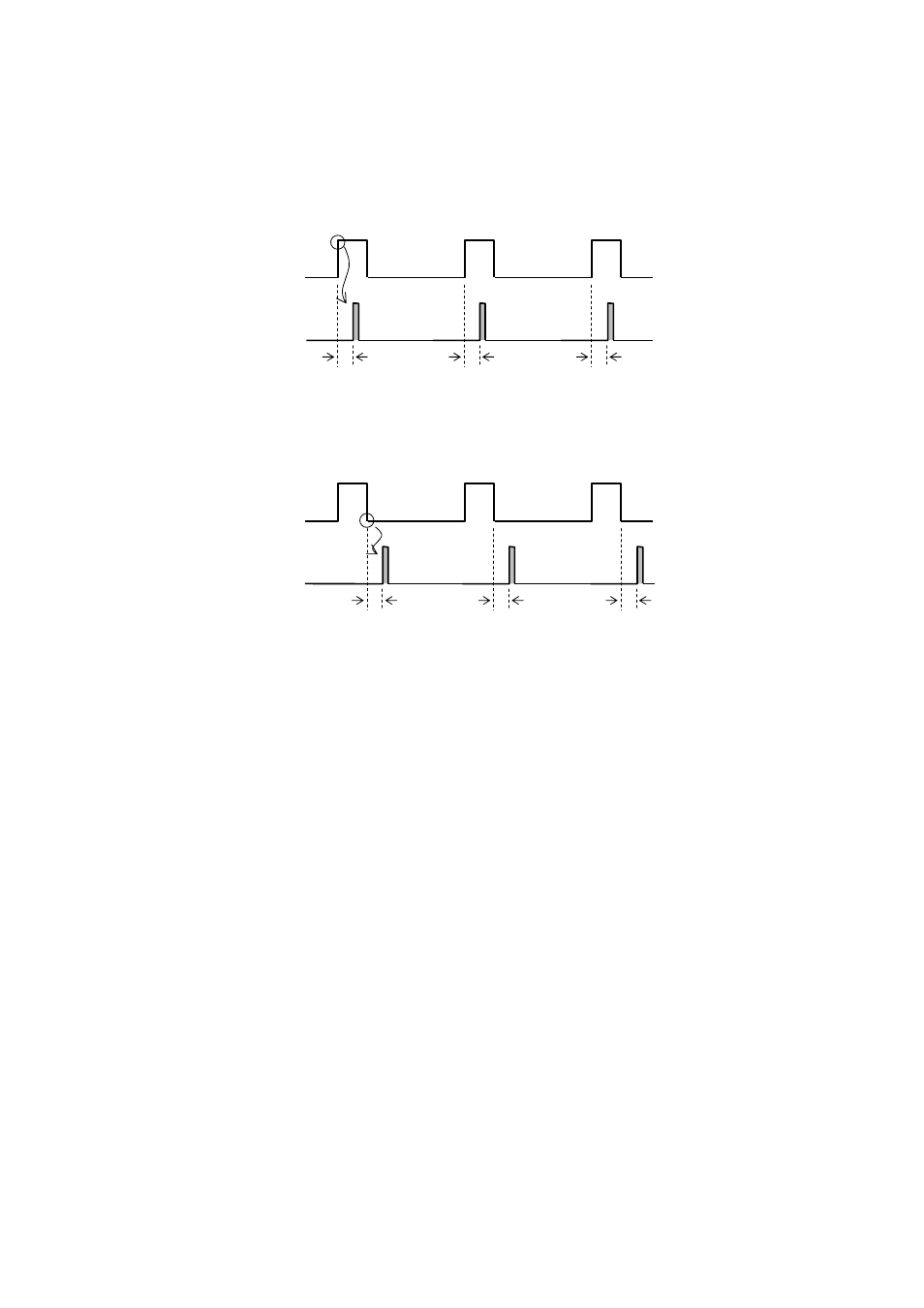

Examples:
-When trigger edge setting is set to “Positive Edge”, the flash will occur on the leading edge of the input
pulse (when delay setting is zero).
-When the trigger edge setting is set to “Negative Edge”, the flash will occur on the trailing edge of the input
pulse (when delay setting is zero).
External Pulse signal
from machine/sensor
Stroboscope flash
*Delay time (based on the delay settings of parameter)
* * *
Stroboscope flashing
:*Delay time (based on the delay settings of parameter)
* * *
External Pulse signal
from machine/sensor
