– 4 –
3.0 OVERVIEW

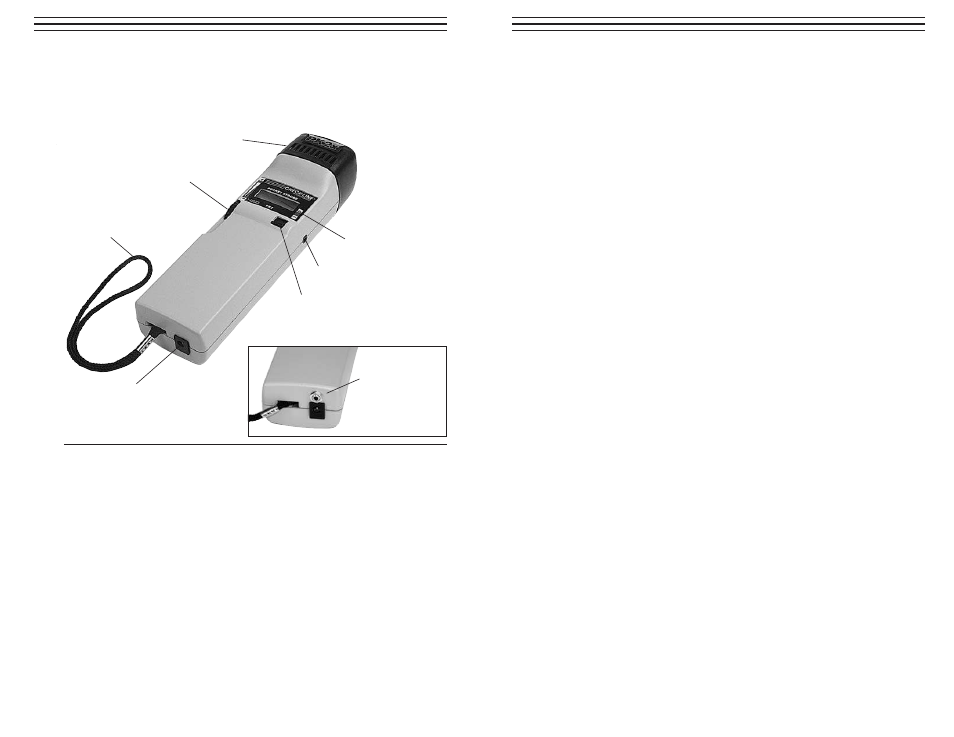

3.1 Front Side
Lens/Bezel Assembly Removed for flash tube replacement.
LCD Display Shows flash rate, low battery indicator and
error messages.
Flash Rate Adjustment Adjusts the flash rate. The speed with which the flash
Knob rate changes is controlled by how quickly the knob is
rotated.
Quick rotation = flash rate changes in large increments.
Slow rotation = flash rate changes in small increments.
Hand Strap Used as wrist trap (if desired).
External Trigger INPUT Used for control of flash rate via external sensor
or controller.
On/Off Switch Turns on power and flashing.
DC-Input Jack for Used to recharge internal battery
AC-Adapter/Charger or operate via AC-Power.
Flash Rate Adjustment Knob
Lens / Bezel Assembly
Hand Strap
On / Off Switch
LCD Display
DC-Input for AC-Adapter / Charger
External Trigger INPUT
Output Trigger
OT Model only
– 21 –
15.0 OPTIONAL & REPLACEMENT ACCESSORIES
PK2X-TBE Spare Xenon flash tube for PK2X (different tube then PK1 or PK2).
PK2X-BAT Replacement Lithium Battery Pack for PK2X.
. (Requires minor soldering for replacement.)
PK2X-AC-BC Replacement Universal AC-Adapter/Charger for PK2X and PK2X-AC
(100–240 VAC, worldwide use).
PK2-HLT Padded-vinyl & leather belt-clip holster.
PK2-PHONO Connection jack for external trigger input or optional trigger output
signal
PK2-TRI Tripod for PK2X.
PK2-BNC External Trigger Cable, 6 feet in length, 1/8" to BNC male.
PK2-8M External Trigger Cable, 6 feet in length, 1/8" male to 1/8" male.
