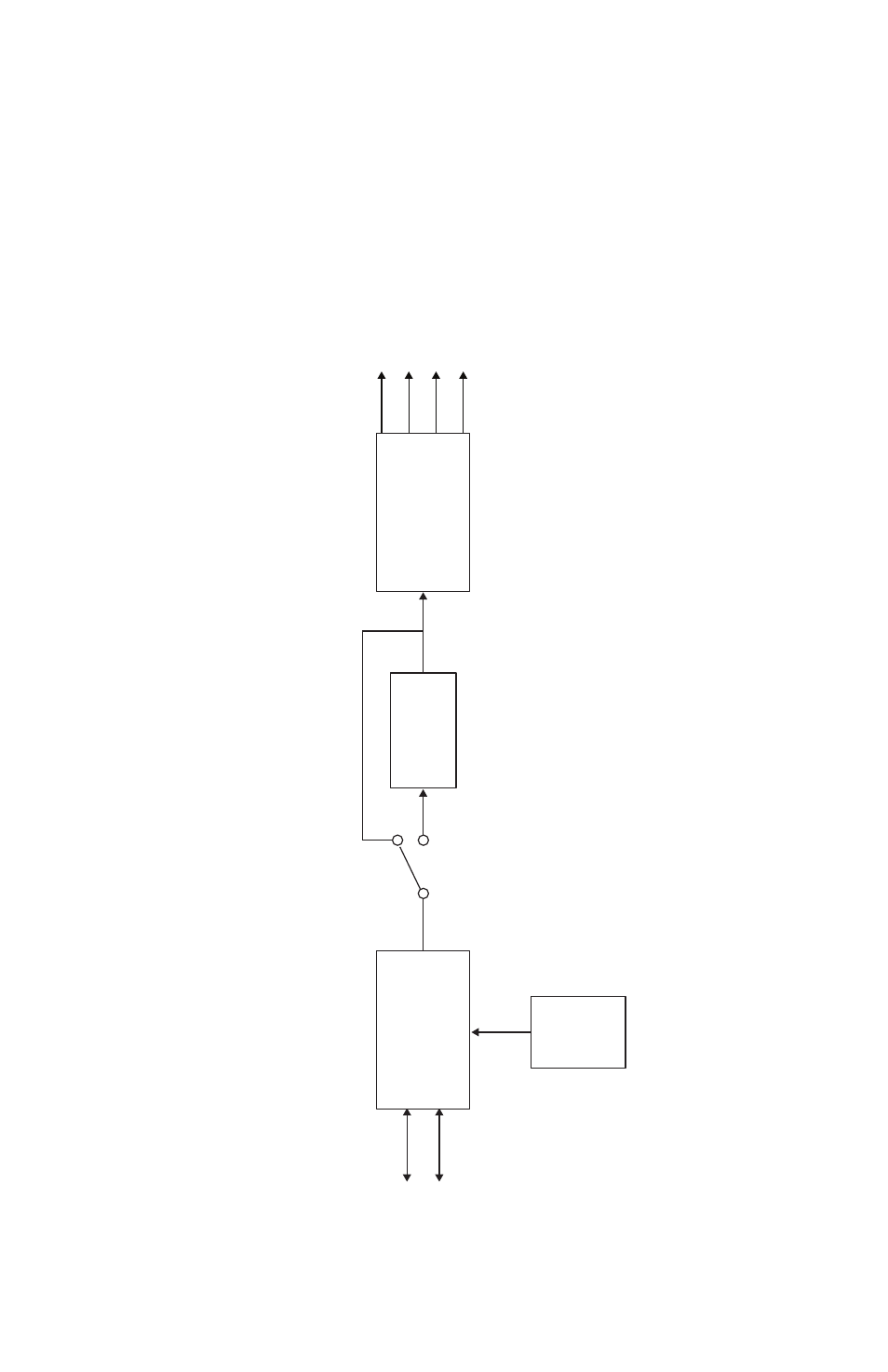

Block diagram, Pro16 a-net – Aviom ASI User Manual
Page 34
26
s
PeciFicAtioNs
Pro64
A-Net
64 Channels @
44.1/48kHz
Channels 1-16
Channels 17-32
Channels 33-48
Channels 49-64
Pro16
A-Net
Pro64 Control Logic
1-16
17-32 (44.1/48, 88.2/96 only)
33-48 (44.1/48 only)
49-64 (44.1/48 only)
Pro64 Control Logic
Pro64 Control Logic
Pro64 Control Logic
Pro64
A-Net
32 Channels @
88.1/96kHz
Channels 1-16
Channels 17-32
Pro16
A-Net
Pro64
A-Net
16 Channels
@
176.2/192kHz
Channels 1-16
Pro16
A-Net
Sample Rate Conversion
to 48kHz
Sample Rate Conversion
to 48kHz
Pro16 A-Net
Pro64 A-Net
Sample rate converter (to 48kHz)
Signal
-10dB
Clip
User Config. Settings
to/from network
Block Diagram
