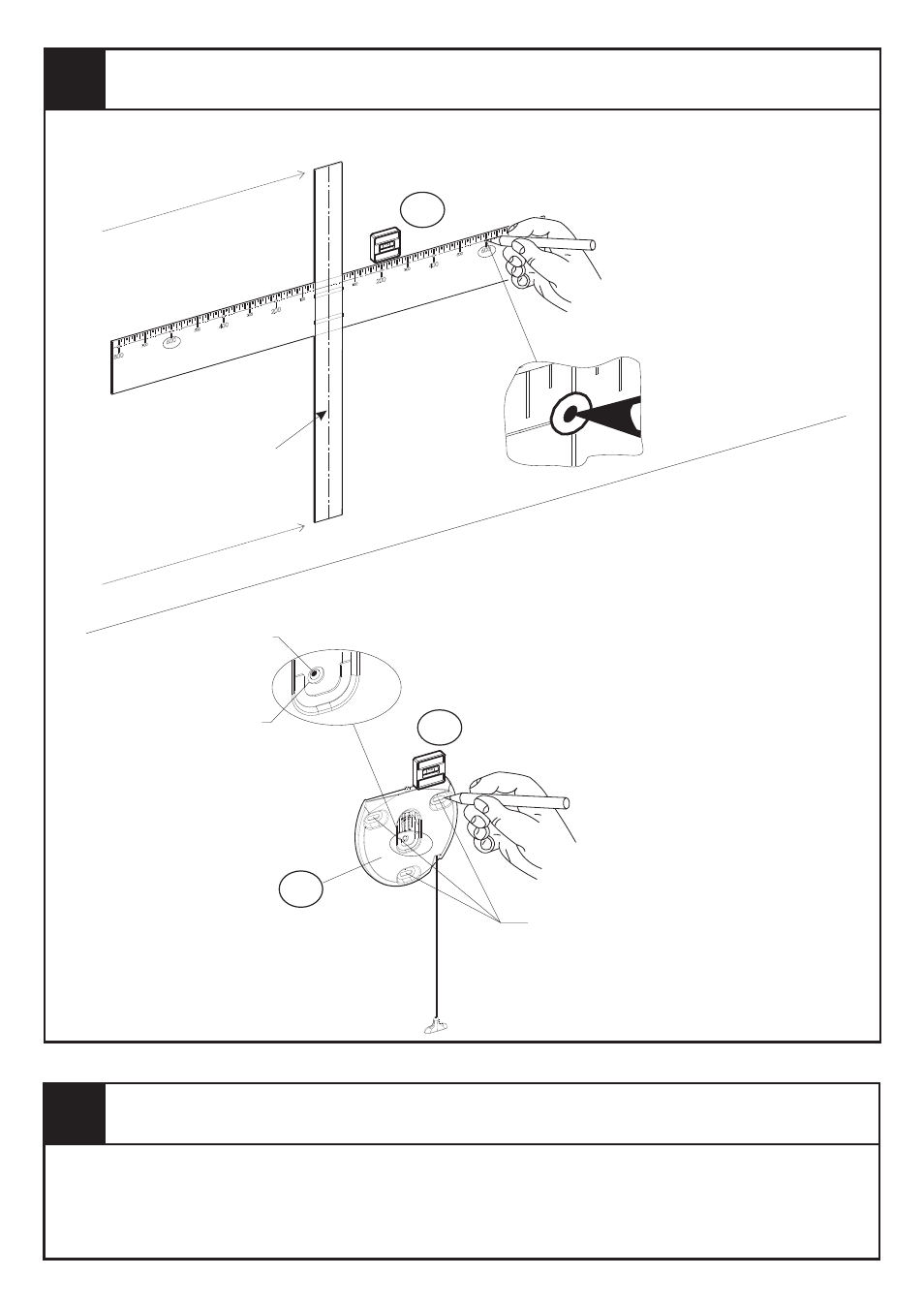

7 Marking Wall For Drill Points
Use your template to mark two points on the wall that correspond with the top fixing centres of
your TV.
Next, use the Wall Bracket (A) as a template and
position it over one of the PENCIL MARKS you
have made, so that the mark is in the middle of the
CENTRAL HOLE of the Wall Bracket (A). Ensure
the bracket is level and mark the three DRILL
POINTS with a pencil. Repeat for both brackets.
Drill points.
Pencil Mark
Central Hole
8 Planning & Preparation
Determine the wall type that you have (i.e. Brick/Stud/Plasterboard/Sheetrock).
Ensure the drilling area is free from mains services (Gas/Electric/Water).
Drill six 3mm diameter pilot holes to verify the wall type and select the appropriate fixings (See
Section 9).
A
Q
Represents the top
of your TV
.
Represents the base
of your TV
.
Represents the
centre of your TV.
Q
