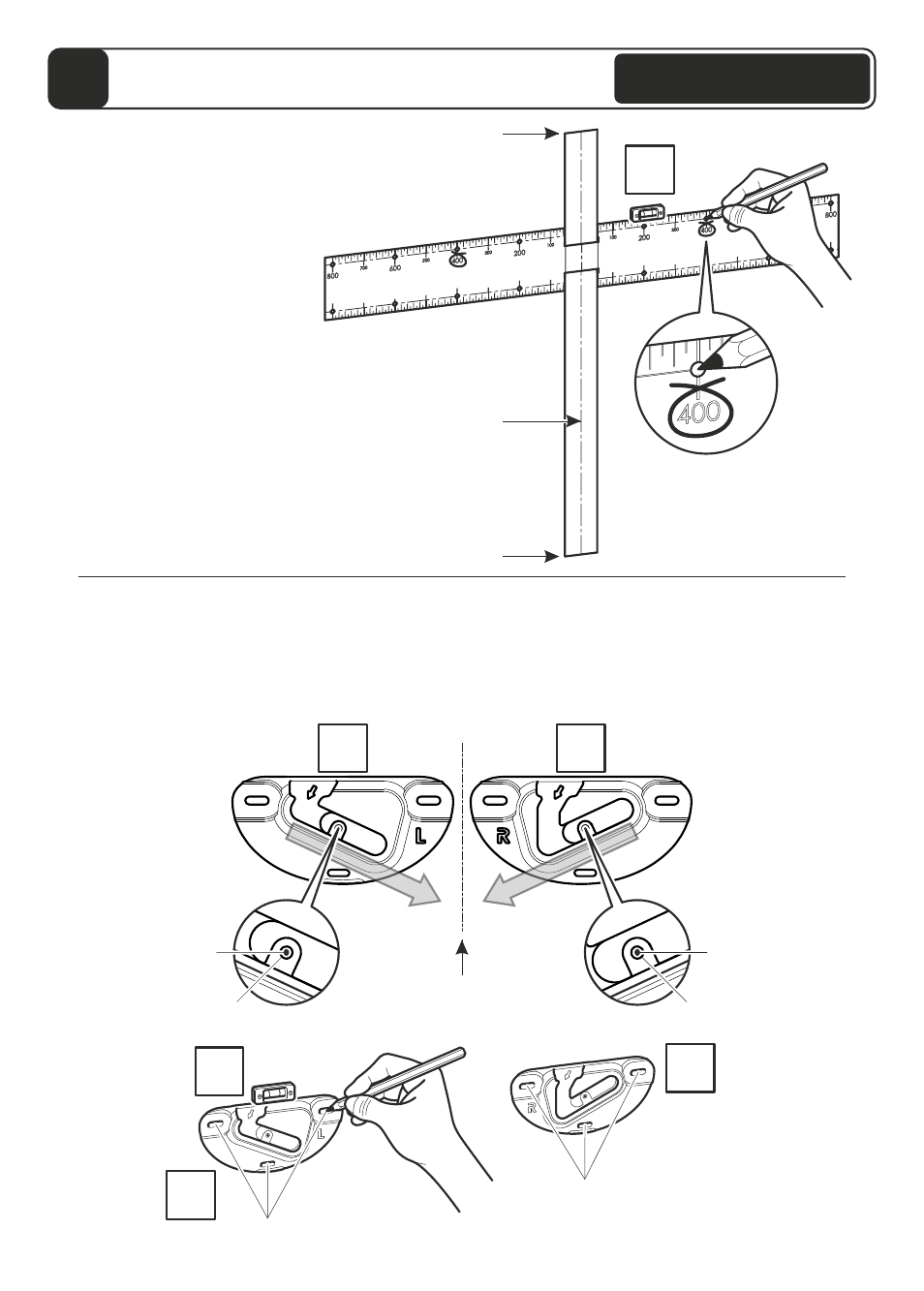

Marking Wall For Drill Points
12
Use your template to mark
two points on the wall that
correspond with the top
fixing centres of your TV.
Represents the
top of your TV.
T
Represents the
bottom of your TV.
Represents the
centre of your TV.
DRILL POINTS
T
Next, use the Wall Brackets and as a template and position them over the appropriate
PENCIL MARKS you have made, so that the mark is in the middle of the
CENTRAL HOLE of the Wall Bracket. Ensure the bracket is level and mark the three
DRILL POINTS with a pencil. Repeat for other bracket. A B
Drill six 3mm pilot holes and select appropriate fixings (see section 13)
B
DRILL POINTS
A B
A
PENCIL MARK
CENTRAL HOLE
PENCIL MARK
CENTRAL HOLE
Without Adaptor
Represents the
center of your TV.
Before marking the wall,
determine the wall type that
you have (i.e. Solid Wall/
Dot & Dab/ Plasterboard/
Wood Stud/Metal Stud).
Ensure the drilling area is
free from mains services
(Gas/Electric/Water).
