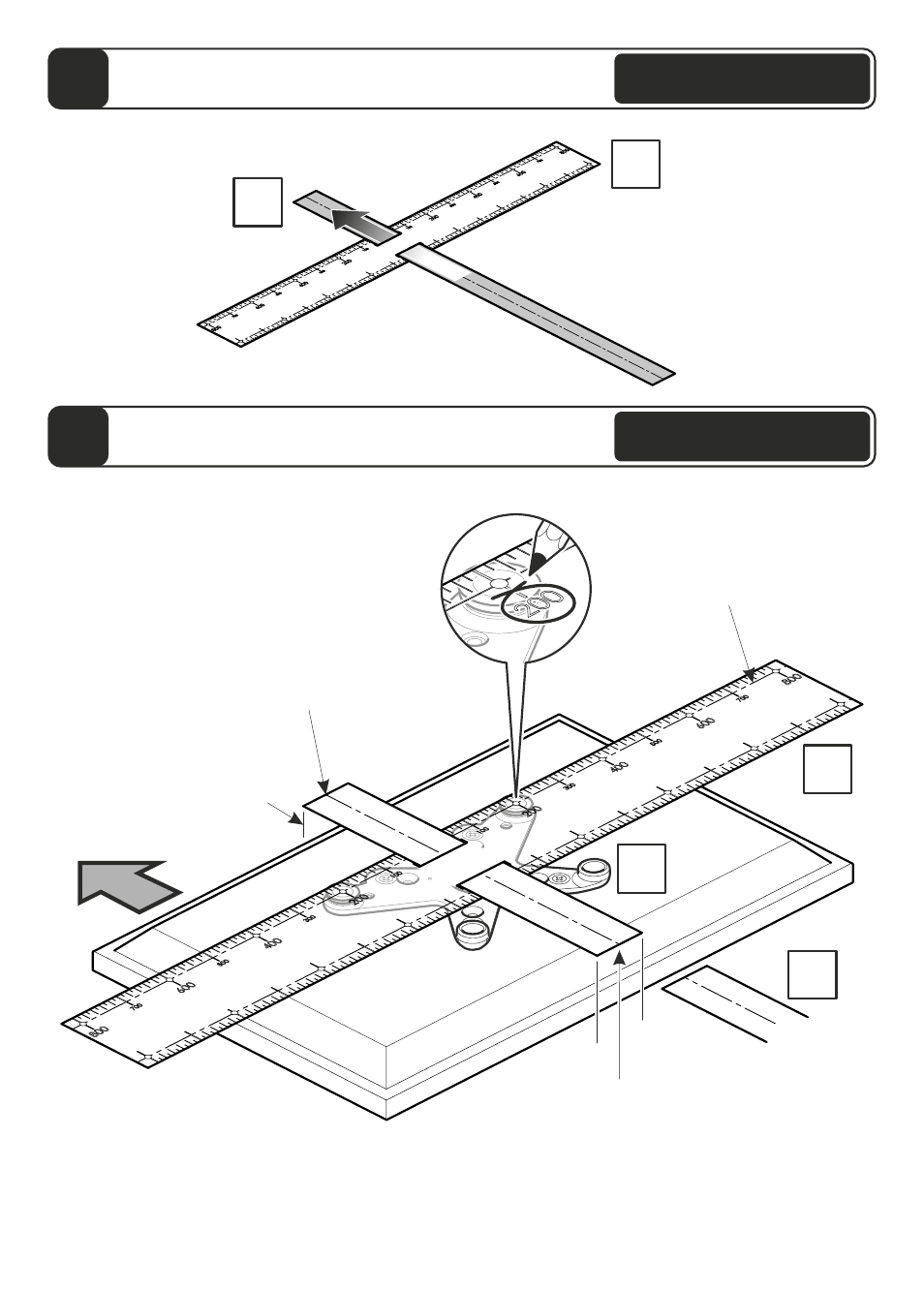

Assemble Positioning Template
3
U
2
U
1
Determine Bracket Hole Centres
4
Top
Lay the template on the back of the TV and follow the instructions below.
Cut the template U2 so it is flush with
the bottom of your TV so that when the
template is on the wall you can see
exactly where your TV will be vertically
(distance from the floor and ceiling).
U
1
U
2
Place the top row of holes on
template U1 over adaptor V.
Mark off the 200 centres
Top row holes
V
The centre line of the
template U2 represents
the centre of your TV.
Line up with top
of the screen.
With Adaptor
With Adaptor
