aW5800T User’s Manual
PaGe 7 www.avalanwireless.com Technical support :: (650) 384.0000

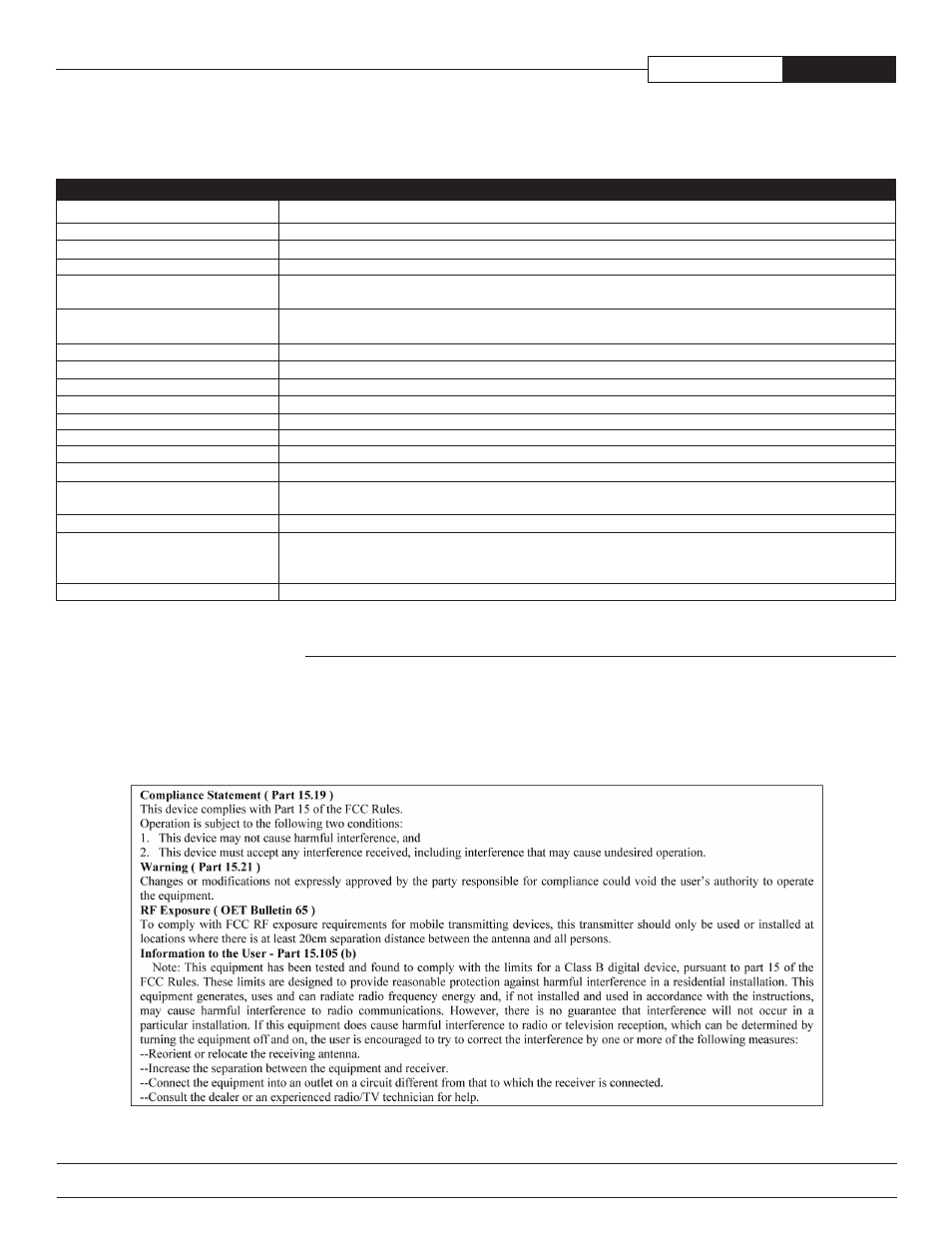

Technical specifications
Limited warranty
This product is warranted to the original purchaser for normal use for a period of 360 days from the date of purchase. If a defect
covered under this warranty occurs, AvaLAN will repair or replace the defective part, at its option, at no cost. This warranty does not
cover defects resulting from misuse or modification of the product.
rF transmission rate
ethernet throughput
Output power
receive sensitivity
radio link budget
line-of-sight range
radio channels/bandwidth
Manual frequency select
Connector types
status leDs
error correction technique
adjacent-band rejection
regulator type
Power consumption
Voltage
Temperature range
Transmit current draw
size
1.563 Mb/s
935 Kb/s
+21 dBm (20 Watts EIRP used with 23 dBi antennae AW23-5800)
-98 dBm at 10e-4 BER (-121 dBm with 23 dBi antennae AW23-5800)
128 dB with 5 dBi antenna AW5-5800
164 dB with 23 dBi antennae AW23-5800
1 mile LOS with 5 dBi antenna AW5-5800
40 miles LOS with 23 dBi antennae AW23-5800
58 non-overlapping with 2.0833 MHz spacing and 1.75 MHz occupied bandwidth
Channel selected with DIP switch
RF RPTNC Female / Ethernet RJ45 10BaseT / Power Jack P5-2.1 mm ID
Power, Ethernet Link, RF RX, RF TX, 6/Channel, and 6/Link Quality
Sub-block error detection and retransmission
SAW receiver filter attenuates cellular and pager interference
Indoor uses linear regulator and outdoor uses switching regulator
Transmit: Indoor — 2.4 W
Indoor: 5 VDC-7 VDC
Outdoor: Power over Ethernet 9-48 VDC over Ethernet -4/5 positive and 7/8 ground
-40
o C to 70 o C
Indoor: 410 mA Outdoor: 210 mA at 9 VDC
150 mA at 12 VDC
40 mA at 48 VDC
Indoor: 140 x 85 x 30 mm Outdoor: 200 x 80 x 55 mm
CHaraCTerIsTIC sPeCIFICaTIOn / DesCrIPTIOn
Outdoor — 1.9 W receive: Indoor — 1.2 W Outdoor — 1.0 W
