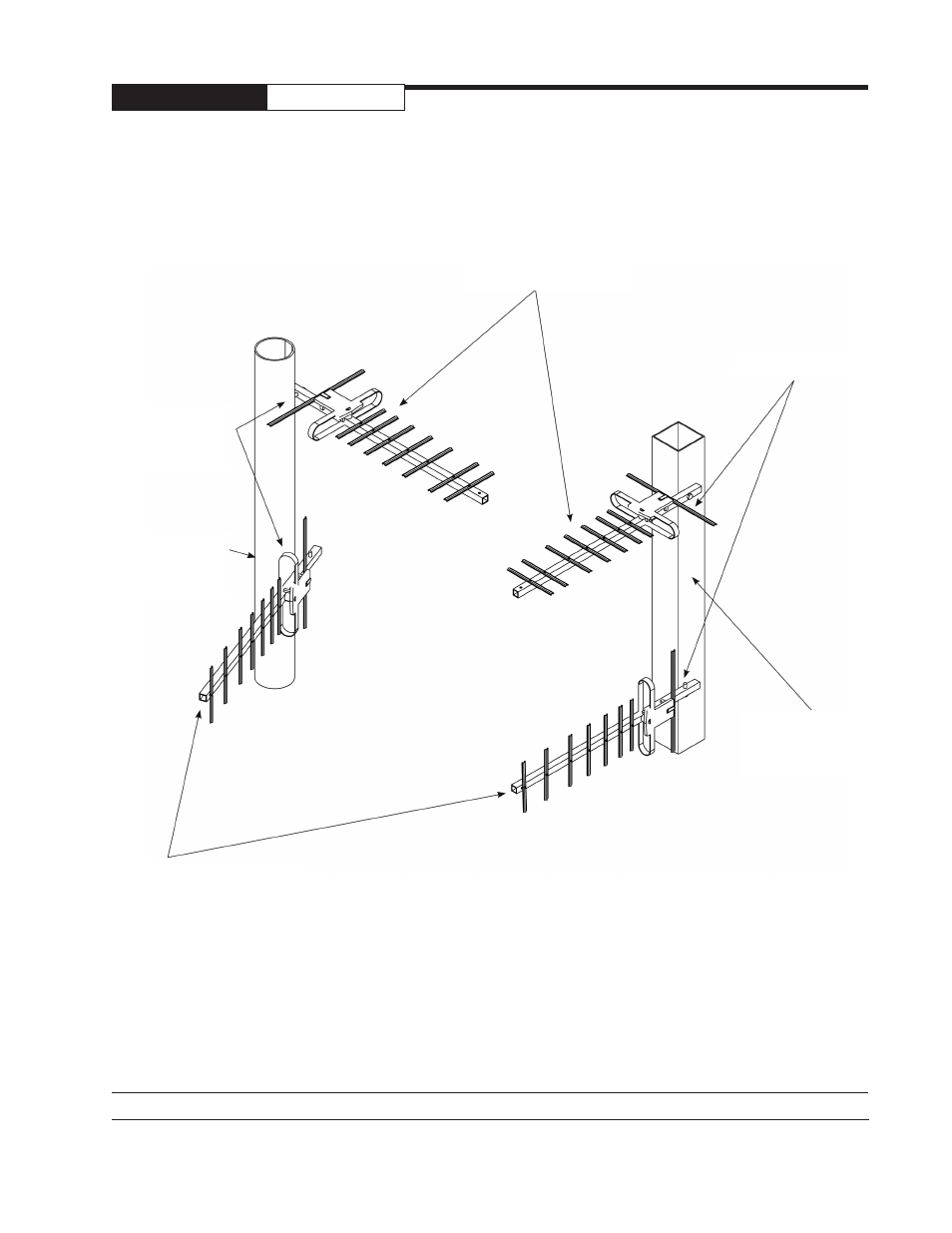

ATTENTION: When multiple 900 MHz antennas are installed in one area and face the same direction,
antennas should be spaced a minimum of 12 feet apart. When multiple antennas are installed in one
area and face different directions, antennas should be spaced a minimum of 5 feet apart.
Horizontal polarization
0-deg. separation
45-deg.
separation
5 ft physical
separation
12 ft physical
separation
Vertical polarization
