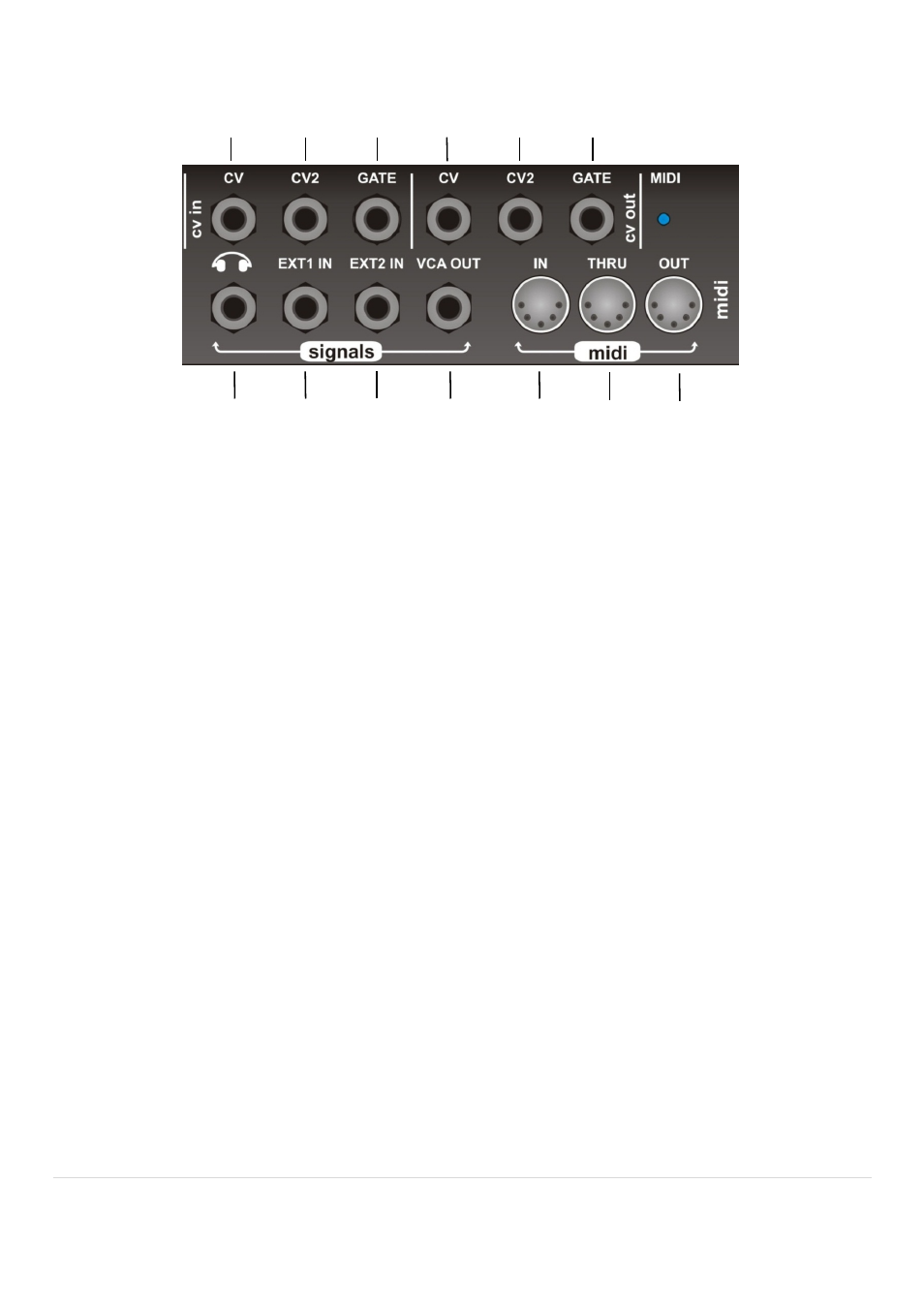

Telemark-K Rear Panel Audio Connections
 
CV IN: This is a pitch CV input socket if you
want to control Telemark-K’s pitch from an
external synth. Scaling is 1v/Oct.
 
CV2 IN: This is a CV input socket if you want
to control Telemark-k's the ‘MIDI2’ patch points
(selected via the rotary switches) using an
external synth.
 
GATE IN: This is a Gate input socket if you
want to trigger the two envelope generators via
an external synth. Triggering is positive 5v or
more signal.



CV Out: The pitch CV signal is fed out here
from the MIDI to CV converter.
 
CV2 Out: The MIDI2 aux/controller CV signal
is fed out here from the MIDI to CV converter.
 
GATE Out: The gate signal is fed out here
from the MIDI to CV converter.
 
HEADPHONE: The signal is mono. Level is
controlled together with the main output socket
level using the volume control on the front panel
 
EXT1 IN: This an audio input socket to feed
audio signals directly into mixer.



EXT2 IN: This a second audio input socket to
feed audio signals directly into mixer.



VCA OUT: This is the main audio output from
Telemark it is the signal output from the VCA,
post Volume control.


MIDI IN: Plug your MIDI cable in here to all
another MIDI device to control the Telemark.

MIDI THRU: The MIDI data coming into the In
socket is copied to the Thru socket. This is so you
can control additional devices from your MIDI
controller without the need of a MIDI thru box.
The Thru socket will not function when in Poly
mode.



MIDI OUT: Use this socket to allow the
Telemark to control other MIDI devices or use it
as a master keyboard in your MIDI setup.
     
      
