Leipzig-S/SK User Manual
Analogue Solutions | LEIPZIG-SK Rear Panel Audio Connections
31

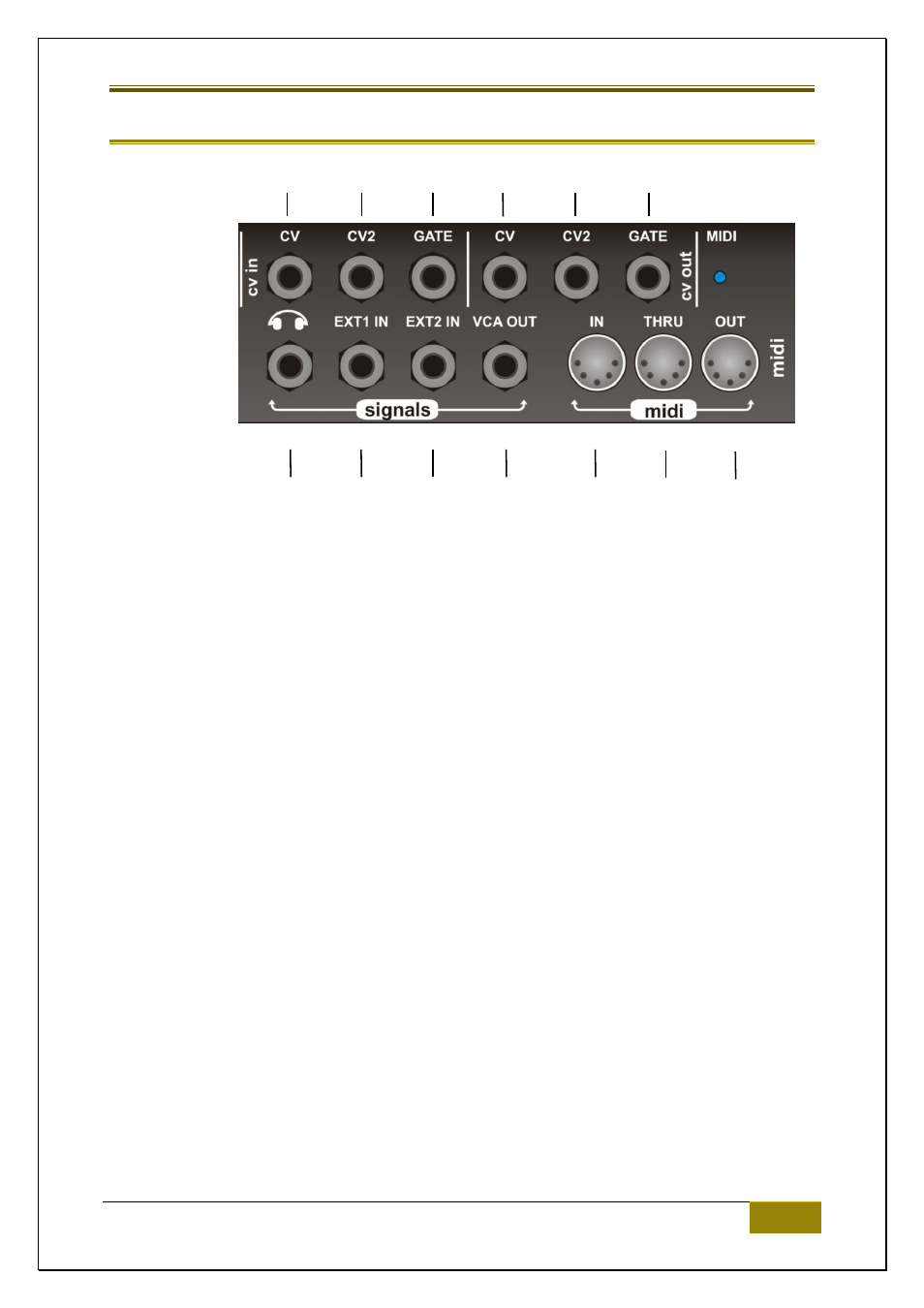

LEIPZIG-SK REAR PANEL AUDIO CONNECT IONS
CV IN: This is a pitch CV input socket if
you want to control the synth’s pitch from an
external synth. Scaling is 1v/Oct.
CV2 IN: This is a CV input socket if you
want to control the synth’s ‘MIDI2’ patch
points (selected via the rotary switches) using
an external synth.
GATE IN: This is a Gate input socket if
you want to trigger the two envelope
generators via an external synth. Triggering is
positive 5v or more signal.
CV Out: The pitch CV signal is fed out
here from the MIDI to CV converter.
CV2 Out: The MIDI2 aux/controller CV
signal is fed out here from the MIDI to CV
converter.
GATE Out: The gate signal is fed out here
from the MIDI to CV converter.
HEADPHONE: The signal is mono. Level
is controlled together with the main output
socket level using the volume control on the
front panel
EXT1 IN: This an audio input socket to
feed audio signals directly into mixer.
EXT2 IN: This a second audio input
socket to feed audio signals directly into
mixer.
VCA OUT: This is the main audio output
from the synth. It is the signal output from the
VCA, post Volume control.
MIDI IN: Plug your MIDI cable in here to all
another MIDI device to control the synth.
MIDI THRU: The MIDI data coming into the
In socket is copied to the Thru socket. This is
so you can control additional devices from
your MIDI controller without the need of a
MIDI thru box. The Thru socket will not
function when in Poly mode.
MIDI OUT: Use this socket to allow the
Telemark to control other MIDI devices or use
it as a master keyboard in your MIDI setup.
