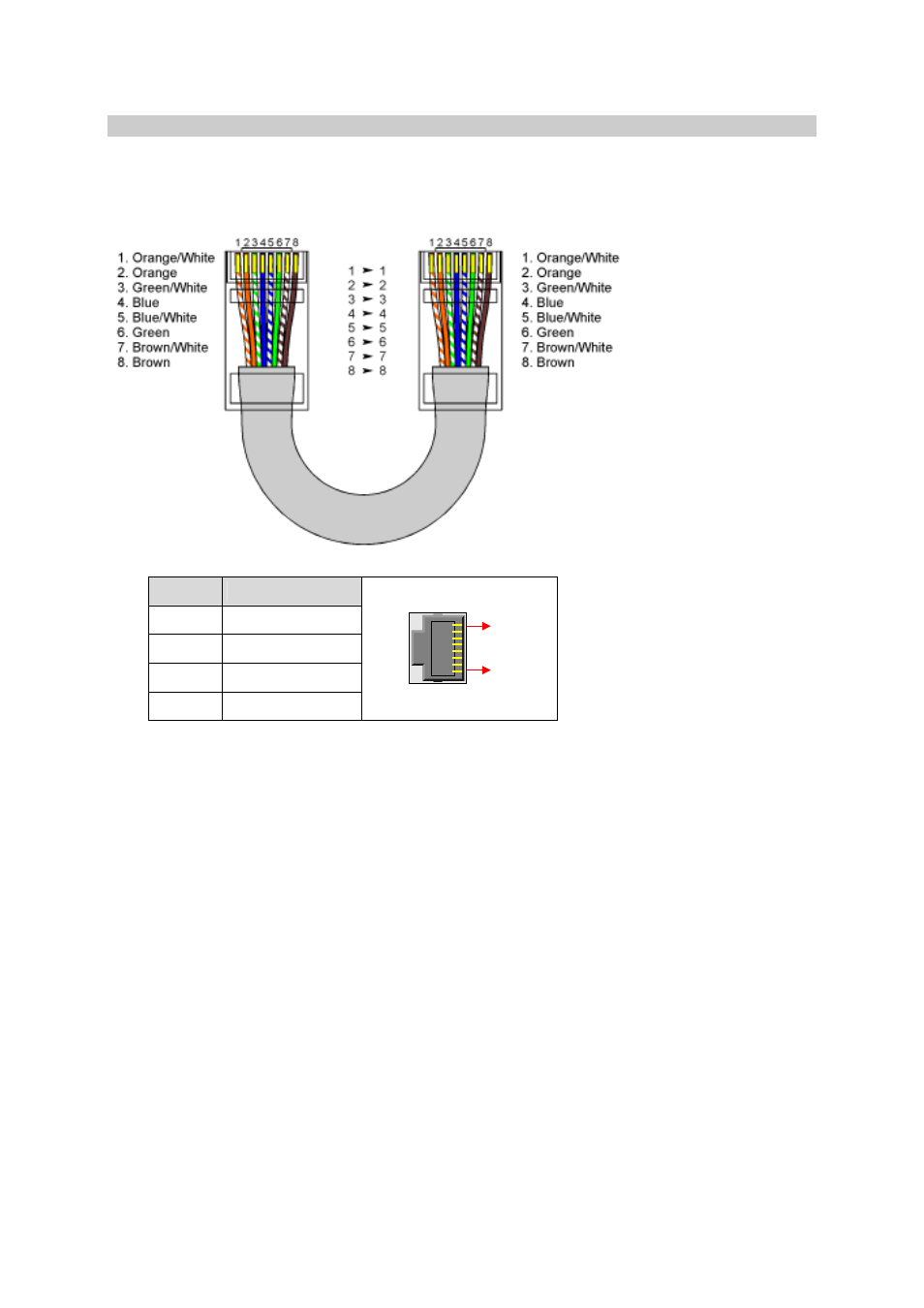

How to wiring the Ethernet cable ?
If you want to build your own Ethernet cable, dont worry, use CAT5 cable, RJ45 connectors
and a crimping clamp.
The maximum lenght for a single cables are 120 meters
Pin
Function
1 TX+
2 TX-
3 RX-
6 RX+
1
8
