HM2 EQ Hammer ™ Owner’s Manual

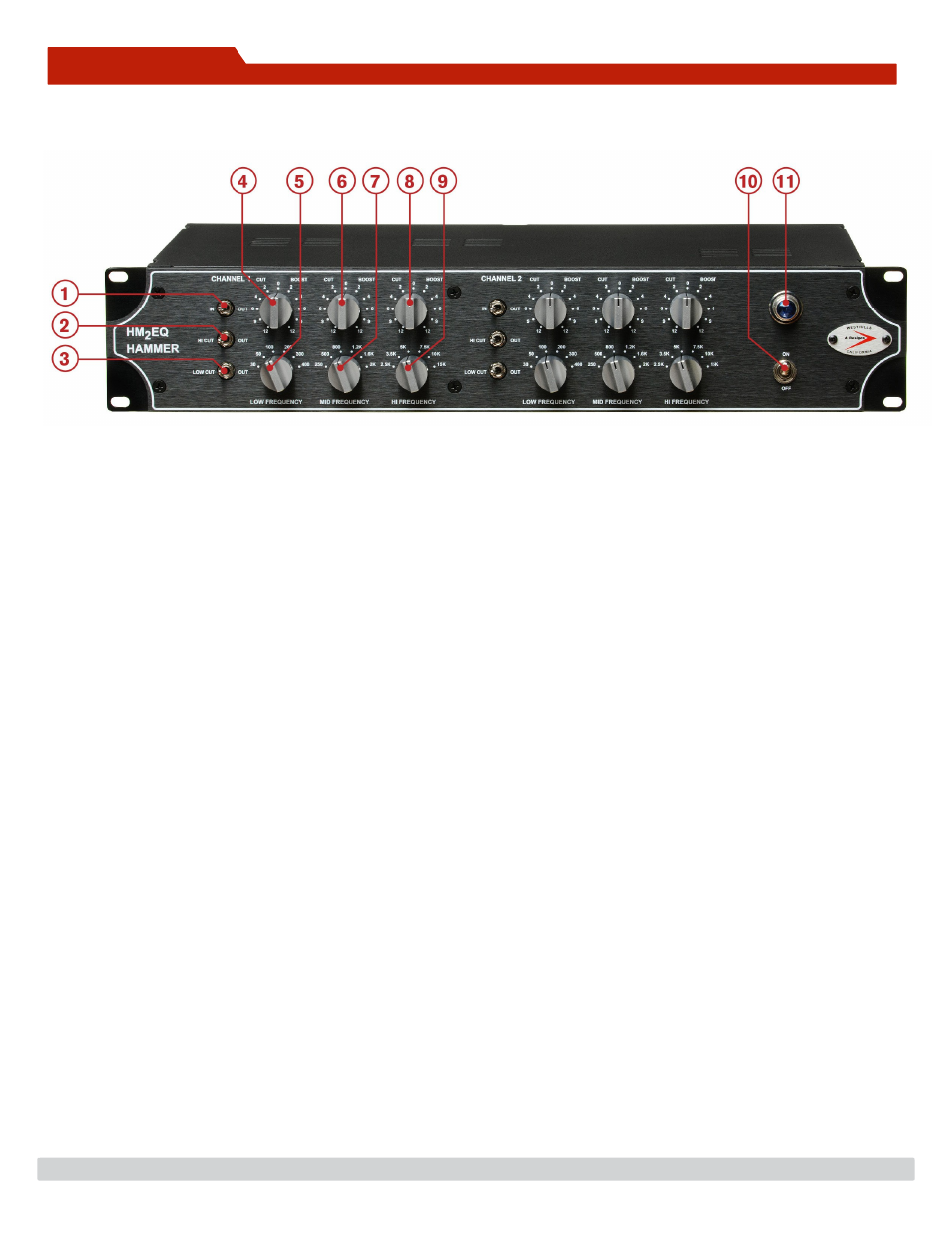

Functions
Front
1 By-pass Switch
2 Hi Cut Switch
3 Low Cut Switch
4 Cut/Boost Knob - For Low Frequency
5 Low Frequency Switch (30/50/100/200/300/400)
6 Cut/Boost Knob - For Mid Frequency
7 Mid Frequency Switch (250/500/1.2k/1.6k/2k)
8 Cut/Boost Knob - For Hi Frequency
9 High Frequency Switch (2.5k/3.5k/5k/7.5k/10k/15k)
10 Power Switch
11 Power Indicator Light
