TB0334B Page 8 of 9 10/18/03

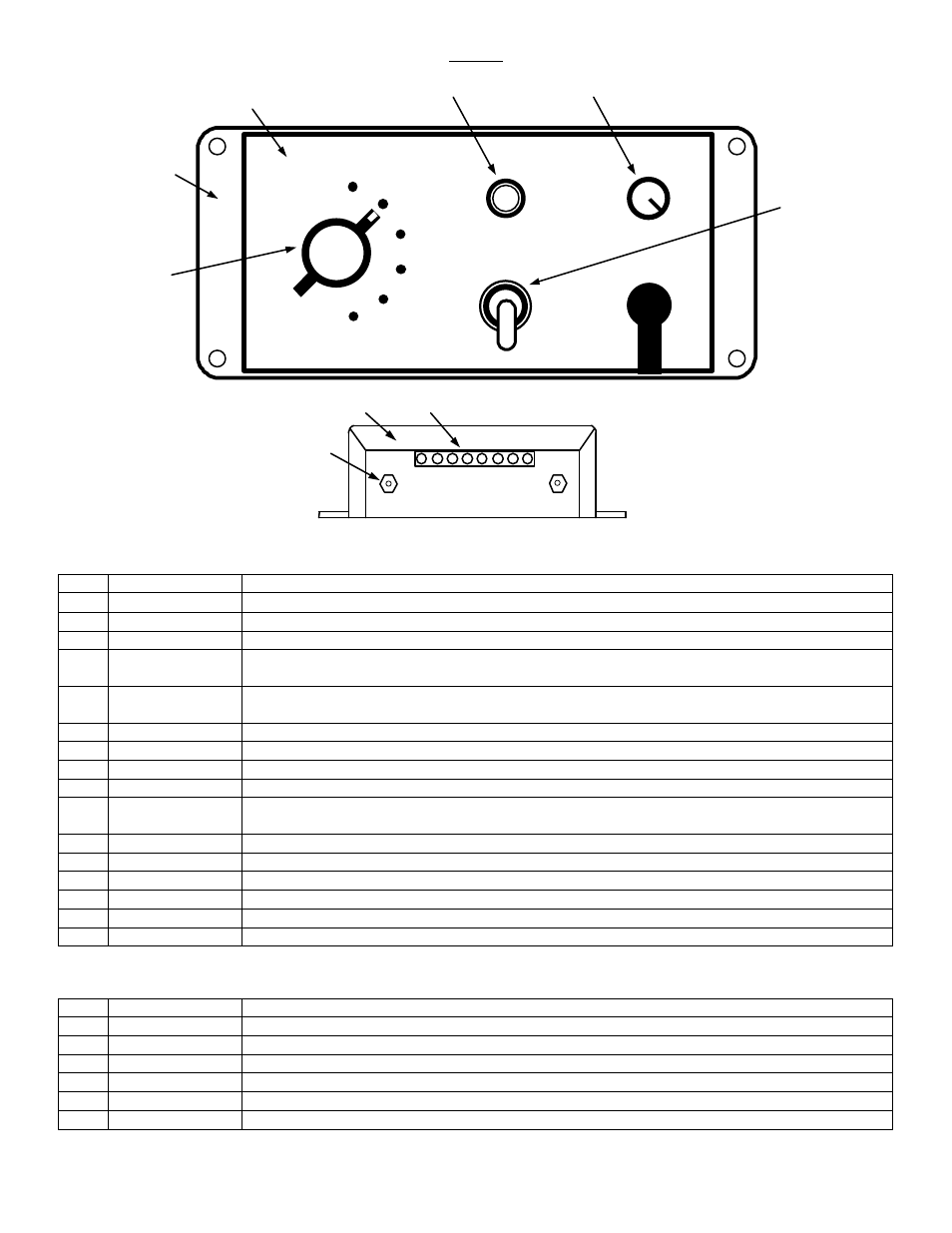

PARTS
3
9
6
5
RADIO RADIO
HORN HORN
MAN MAN
WAIL WAIL
YELP YELP
PHASER PHASER
SIREN SIREN
PA PA
VOL VOL
SA 430 SA 430
POWER POWER
ON ON
1
7 2
4
8
12
11 10
Control Head
Item Part # Description
1 8025 DRS/CAP Button, red w/ dress nut (C&K #801803000 Cap, #702501201 Nut) (for pushbutton switch)
CP3040 Cable, control head power
ES00003-09 Cable, microphone extension 8FT (CP3850 is 18FT) (for SA-430-83FX version)
2 CP3046
CP4000 Control, PA volume (1K ohm) (for all other PCB's)
Control, PA volume no face mount (1K ohm) (for PCB CP3873 Rev. E and higher)
CP3045
CP3880 Cover, control head back (for PCB CP2602)
Cover, control head back push on (for PCB CP3873)
3 CP4852 Knob, rotary function switch
4 CP4853 Knob, PA volume control
5 CP3149 Label, control head front panel
JKL#7001PSBL Lamp, T-1-3/4 14V Bi-pin (JKL #7001)
CP3570
ES00028-10 Microphone (for SA-430-83F version)
Microphone with locking connector (for SA-430-83FX version)
CP3633 Microphone clip with mounting screws
6 CP3035-1 Panel, control head front
SR3055 Rivet, plastic snap for CP3045 back cover (Richco #SR-3055B)
7 8121D2V40 Switch, pushbutton siren (C&K #8121SD2V4GE)
8 7101-T-C-Q Switch, toggle power (C&K #7101TCQ)
9 CP3599 Switch, rotary function
Amplifier
Item Part # Description
CP3877-1 Cable, amplifier power
CP3889 Cable, radio and control line
10 640584-1 Connector, power (AMP #640584-1)
11 CP3876 Cover, amplifier (does not include CP3875 chassis)
CP3408 Fuse holder
12 CP4119 Transistor, output (2 required) (Industry standard TIP36C, Not Texas Instruments)
