Complete Off-Grid Solar Kit Manual
Revision 2.0
4.7 F USING Y OUR S YSTEM
It is necessary to add fuses or circuit breakers to the Complete Off-Grid Solar Panel Kits. While the systems will
function without fuses or circuit breakers, fusing protects the system from accidental short circuits, power
surges, and accidental incorrect wiring. An ATC fuse can be used (available at auto parts stores) or a circuit
breaker can be purchased at most hardware stores. The table below shows the recommended fuse/breaker size
for each system based on 12 or 24 volt configurations.
Solar Kit Size
12 Volt System
Breaker Size
24 Volt System
Breaker Size
100W 10 Amps N/A
200W 20 Amps 10 Amps
300W 30 Amps N/A
400W 40 Amps 20 Amps

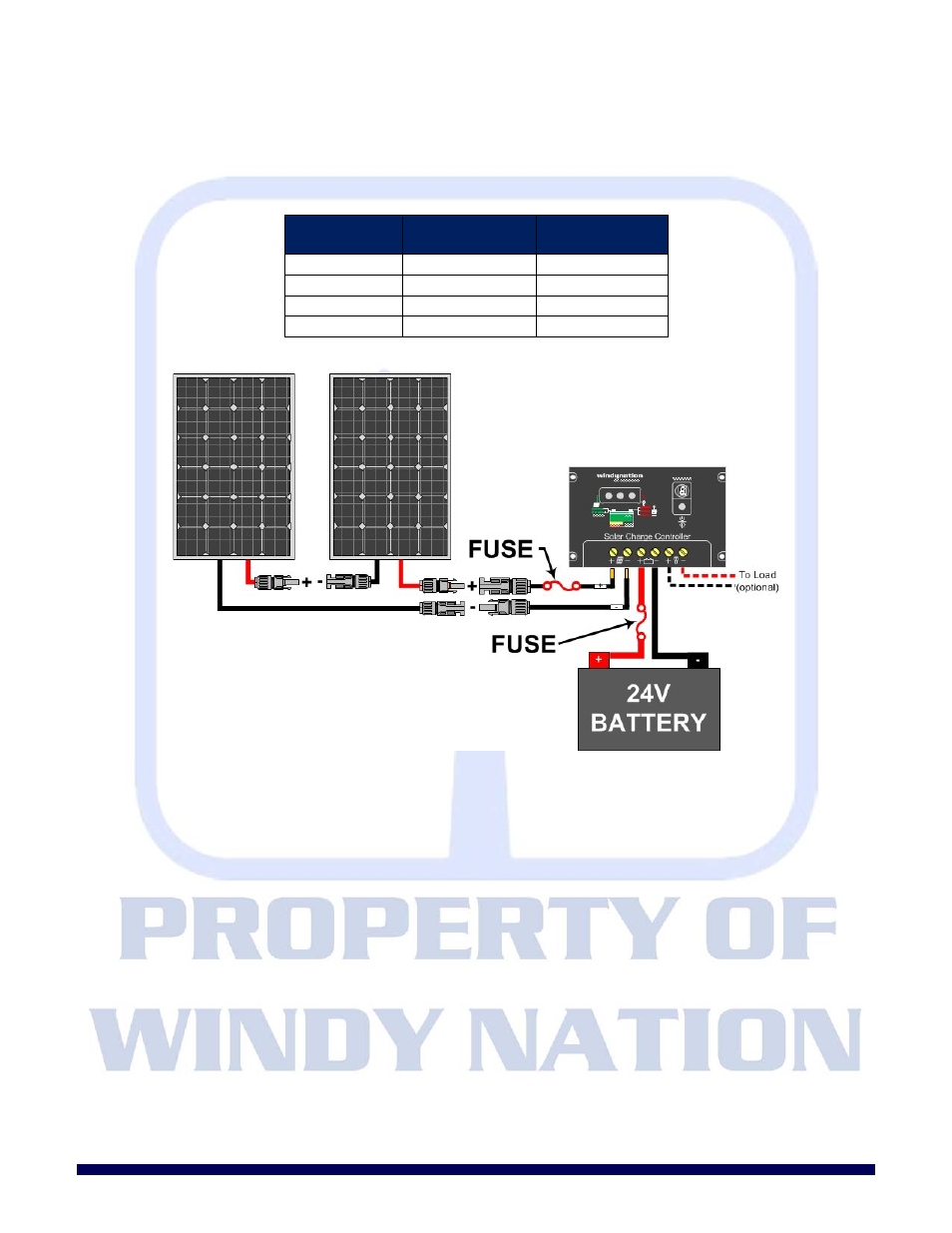

The figure below shows where the fuses or circuit breakers should be placed.
Wiring diagram example of two 100 Watt solar panels wired for 24 volt battery charging showing the
fuse/breaker locations.
4.8 G ROUNDING
Although not required for low voltage, the panel can be grounded by connecting a conductive wire the frame.
