July 2006 TPM-V Installation Manual 1

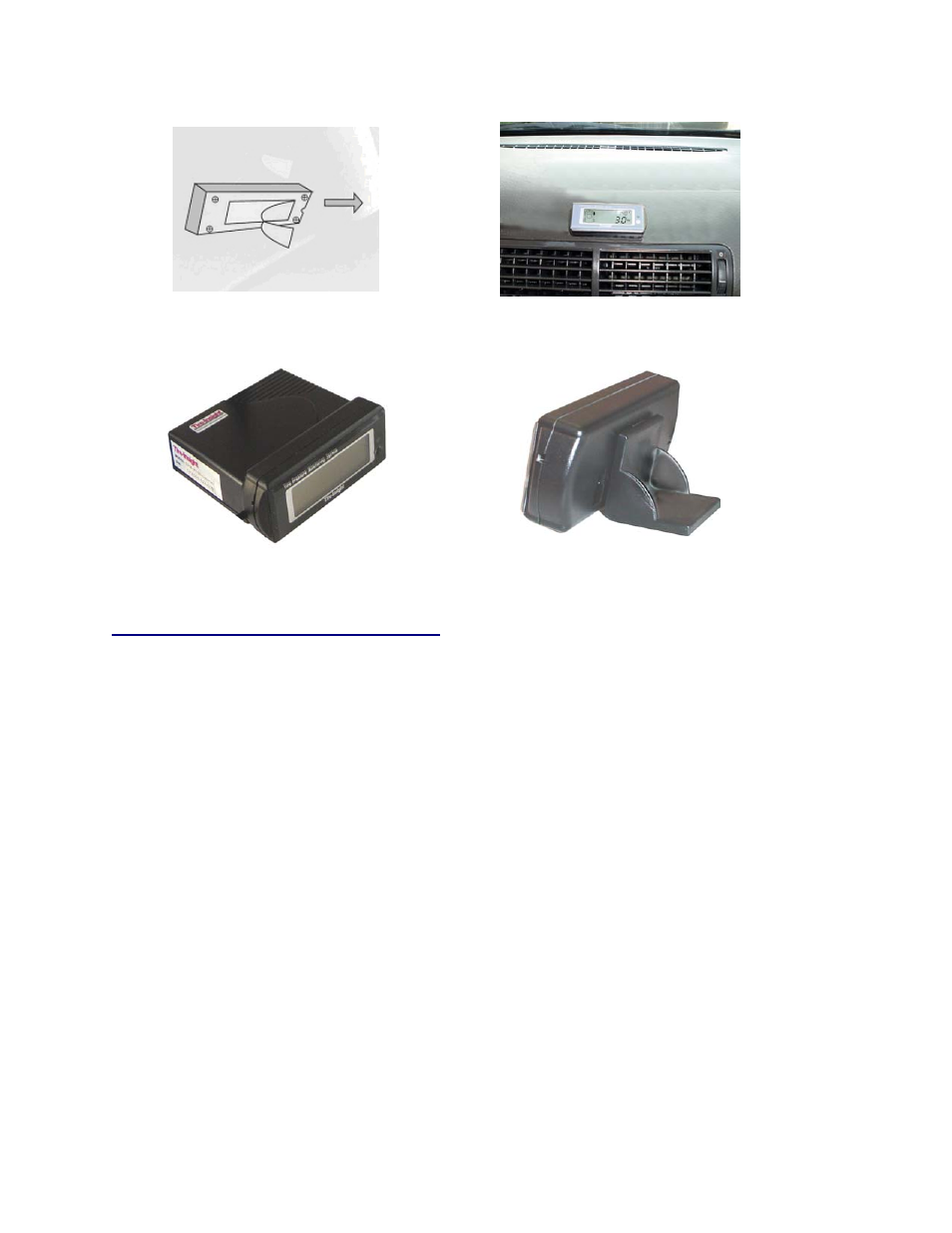

Display Mounting Example 2
Display Mounting Example 3 Display Mounting Example 4
2.3, Receiver and Display Installation
a)
Display – Attach Support Clip or Stand to the Display and place the Display in the desired
viewing location. Or attach Display to the receiver and secure with the 2-sided Adhesive
Strip. Plug the Display data cord into the Receiver data jack.
b) Receiver - Plug the Power Cord into the power jack. Place the Receiver at the desired
location on dash. Secure Receiver with 2-Sided Adhesive Strip or other user preferred
means.
c) Power - Run the Power Cord wires from the Receiver to an ignition switch controllable
power source. Connect the red wire directly to +12-24 VDC. Connect the yellow wire to the
switch controllable +12-24 VDC. Connect the black wire to ground.
d) Turn on vehicle power; observe that the Display LCD lights up and the screen showed the
pressure readings for individual tires. At this point the sensors are not yet installed and
therefore no real data is available.
e) After verifying correct receiver-display installation, turn off vehicle power and then proceed
to sensor installation.
