1

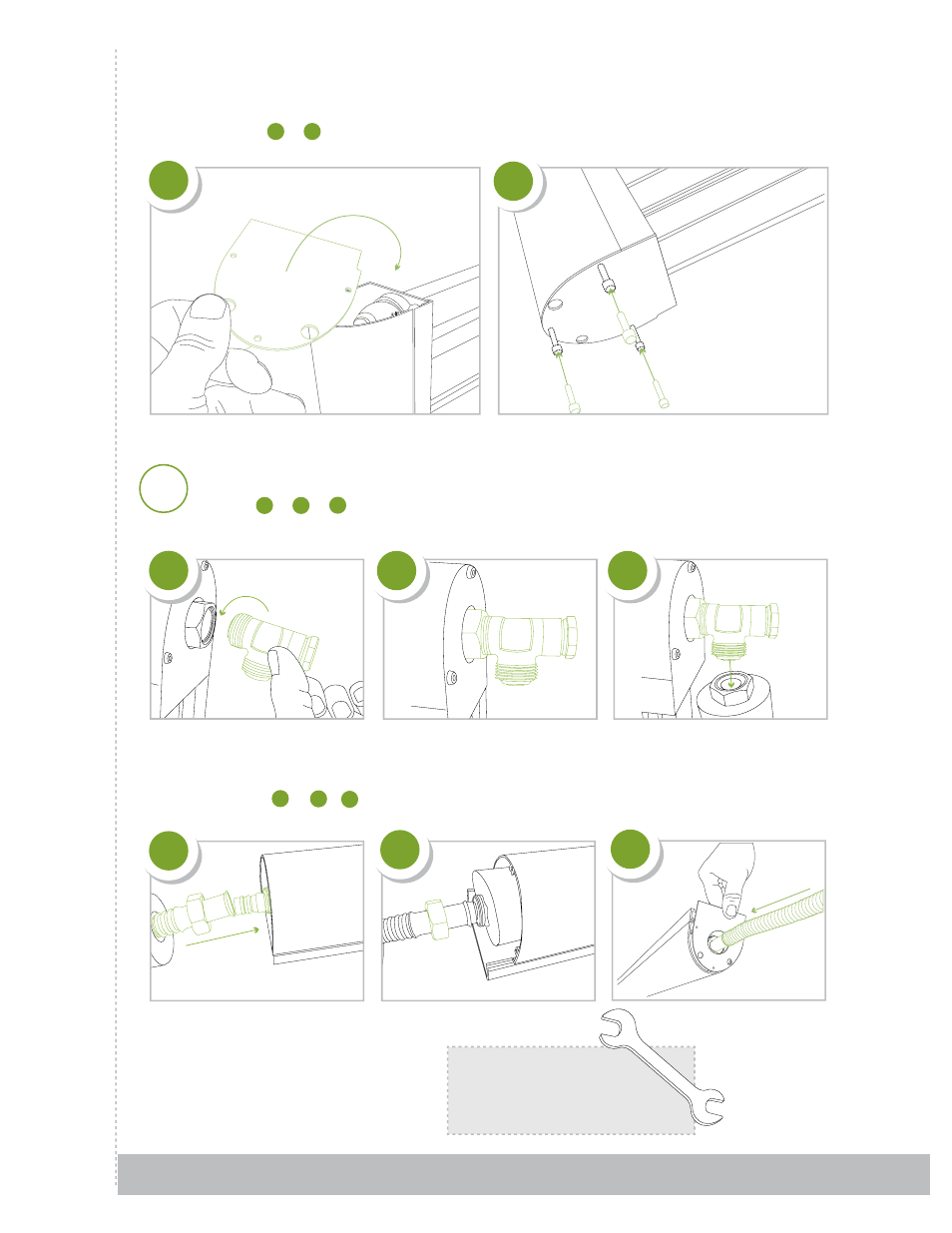

For all types of installations:
Mount the end cap. +
16 17
20 19 18
Screw on the connections,
pull tight with a spanner and
push the insulation over the
corrugated hose.
16 17
i
Caution! The euro-conus connector or the sensor T-piece should always be mounted ont he
collector discharge side. For laterally-inverted connections, the adapter (Art.-No. 791069) should
be used.
+ + 18 19 20
21 22 23
On the left hand side: lubricate the o-ring of the collector connection with silicone grease, connect the
corrugated hose, push the side cap over the corrugated hose and mount. Following this pull the insula-
tion over the hose.
+ + 21 22 23
14
Installation instructions
•
SP-20
•
SP-30
