Low voltage wires MUST
never enter any line
voltage enclosure.
IMPORTANT
LOW VOLTAGE ELECTRICAL CONNECTIONS - ROOM
THERMOSTAT
A low voltage (24VAC) room thermostat is required for room temperature
control with the Comfort Plus Hydronic system. Steffes recommends using a
digital thermostat. If utilizing a mechanical thermostat, a load resistor may be
necessary due to the low current draw (.01 amps) on the heat call input circuit
of the Comfort Plus system. Contact the factory for information on thermostats
available from Steffes.

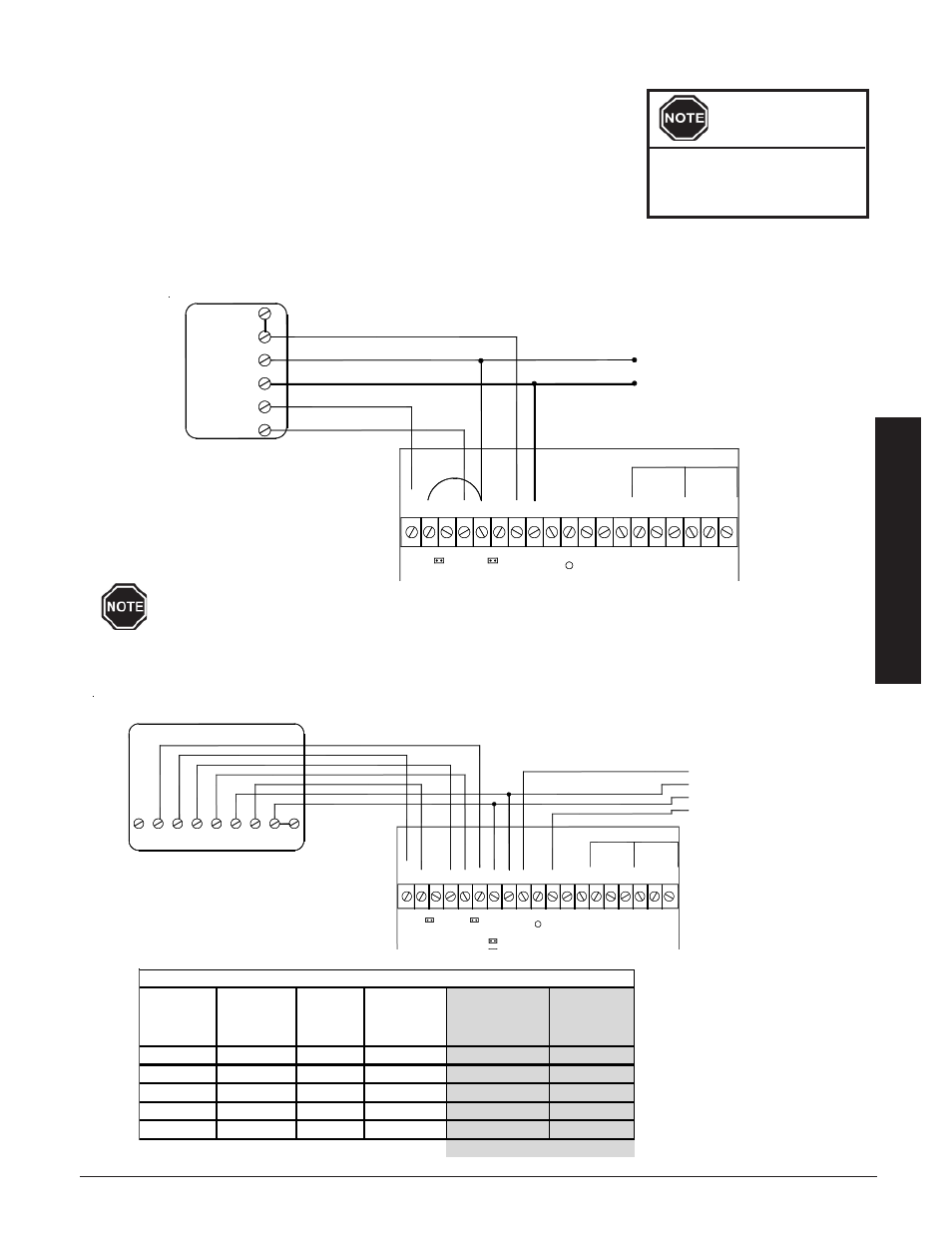

STAND ALONE FURNACE APPLICATION WITH VARIABLE SPEED BLOWER
CONNECTIONS SHOWN FOR SINGLE STAGE HEATING / SINGLE STAGE COOLING
(UNCONTROLLED AIR CONDITIONING)
FIGURE 14
SINGLE STAGE HEAT PUMP APPLICATION WITH VARIABLE SPEED BLOWER
FIGURE 15
I M P O R T A N T
If installing a mechanical thermostat or thermostat with anticipator, a resistor kit is required
(Order Item #1190015).
I M P O R T A N T W/
N
O
N
C
C
O
M
O
u
tdo
o
r
O
u
tdo
o
r
C R H/E
A
O
W-E Y1-Y2
Blower
Speed
AUX G Y2 Y1 O
2 2
Y1 Y2 RP
2
AP P
TH5110D
R
G
W
C
Y
Honeywell
R
c
To Air
Aux.
Relay
Peak
Inputs
C
Y
The Y1-Y2 Jumper must be installed.
The W-E Jumper must be installed.
Conditioner
W/
N
O
N
C
C
O
M
O
u
td
o
o
r
O
u
td
o
o
r
C R H/E
The Y1-Y2 Jumper must be installed.
A
B
Speed
Blower
Y1-Y2 W-E
Y2 Y1 AUX O G RP
2 2
Y1 Y2
2
O AP P
R L E Aux G O/B C Y R
Honeywell TH5220D
To Heat Pump
O - Reversing Valve
R - Low Voltage Hot
C - Low Voltage Common
Y - Compressor
c
Inputs
Peak Aux.
Relay
The W-E Jumper must be installed.
Thermostat
Stage
Thermostat
Output
Heat
Pump
Stage
% of
Selected
CFM
Heat Call Status
on Digital
Display*
Discharge Air
Temperature
Target
1 Y1/G 1 100% HC1 L048
2 Aux/Y1/G 1 100% HC2 L049
Fan G 0 400 cfm HCF N/A
Cool Y1/G/O 1 100% COOL N/A
Emergency H/E 0 100% HC3 L049
SINGLE STAGE HEAT PUMP
Contractor Use Only
* If multiple inputs are active,
system will display highest
Heat Call values.
