Panasonic WV-7130D - Manual (Page 5)

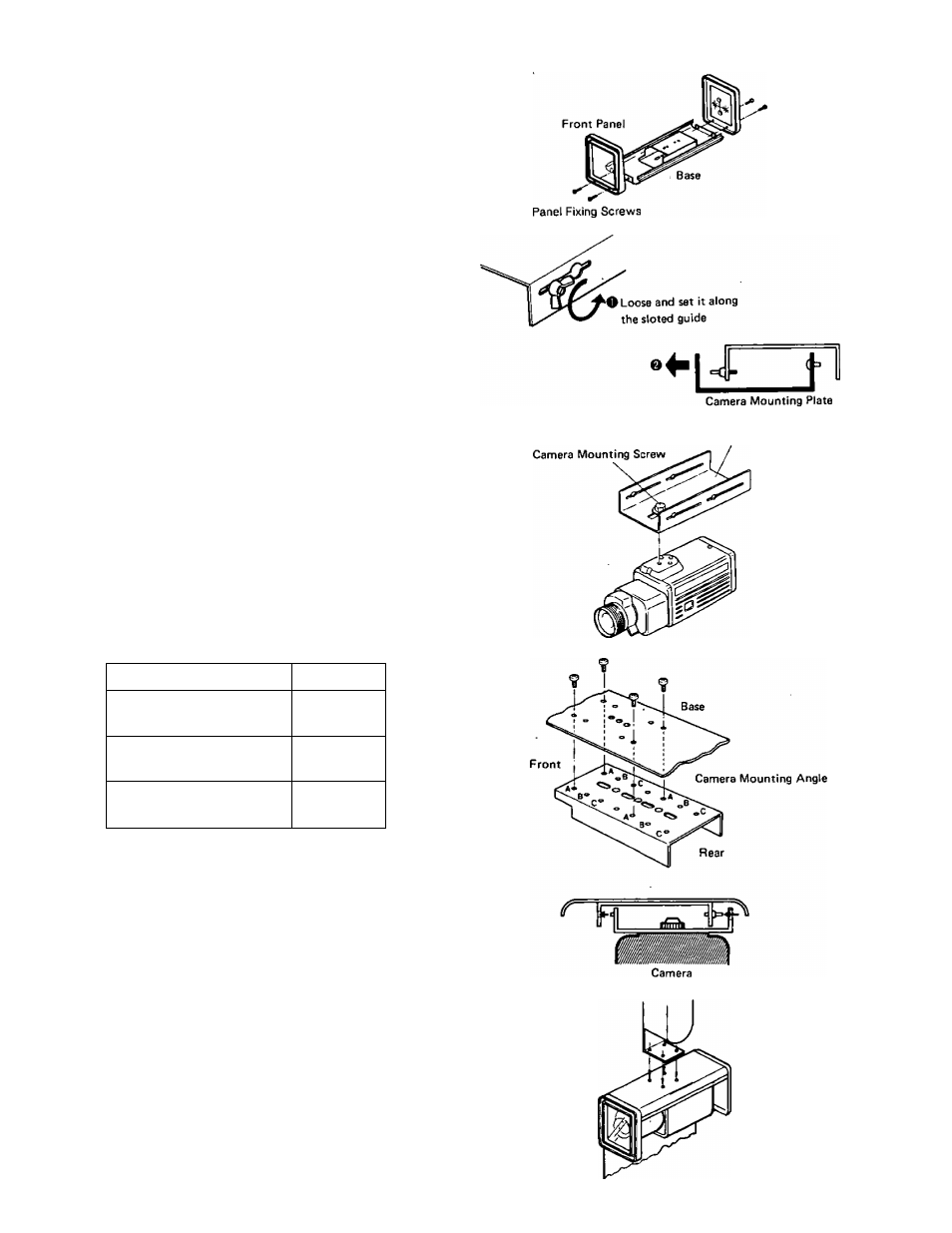

1. Attach the front and rear panel to the base with four
panel fixing screws (provided).
INSTALLATION
Rear Panel
2. Take off the camera mounting plate from the camera
mounting angle.
(1) Loosen the two butterfly screws and set them
along the slotted guide.
(2) Slide the camera mounting plate and take off.
3. Mount the camera to the camera mounting plate with
camera mounting screws.
4. If the lens or camera dimensions require it, remove the
camera mounting angle and reposition by selecting the
appropriate mounting holes. See chart below.
Camera length Holes
7-1/8"-6-5/16'
" (200-160 mm)
A
6-1/2"-4-15/16"
(165- 125 mm)
B
5-1/8’ -
(130- )
C
9
Preset on A position at factory.
5. Mount the camera to the camera mounting angle.
6. Adjust the camera position. Then fix with two butterfly
screws.
7. Mount the camera housing to the mounting bracket or
pan- tilt mechanism.
Camera Mounting Plate
-
2
-
