INSTALLATION
I Mounting the camera onto the top of
the roof of the vehicle.

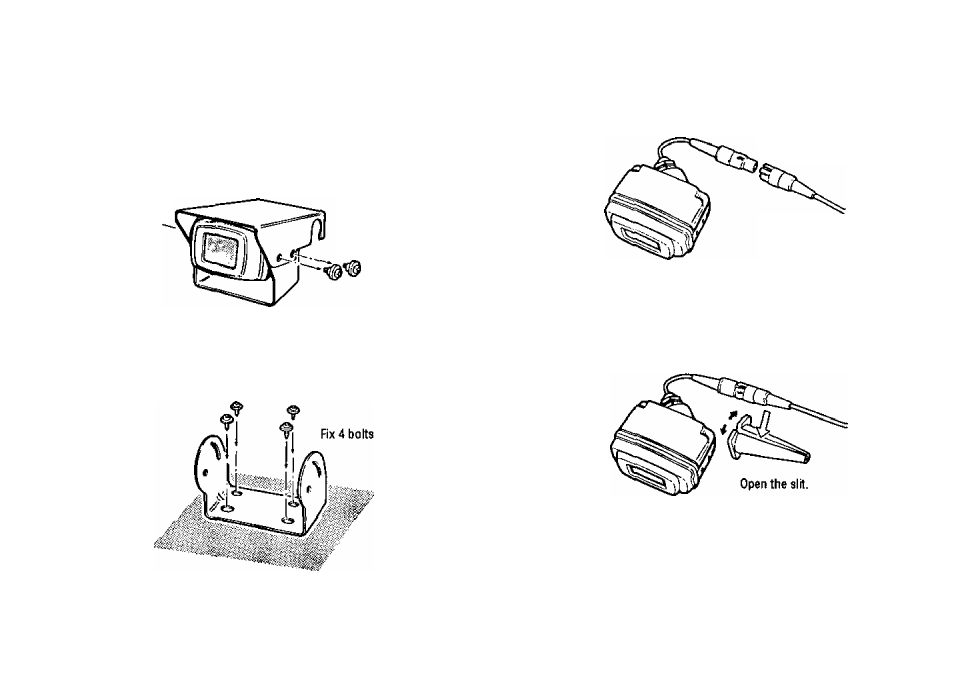

1, Remove 4 Camera Angle Adjusting Screws and
remove the Camera Unit from the Bracket.
Remove 4 Angle
Adjusting Screws
2. Secure the Bracket into the top of the roof by using
4 bolts (obtained locally (6 mm/diameter bolt)).
3. Connect the Optional Camera Cable to the Camera
Cable Connector (4).
4. Open the slit on the Connector Cover, and cover
the optional Camera Cable and Camera Cable
Connector.
Note;
Set the Connector Cover so that the slit is in
the up position.
- 6 -
