Digital TV
-
Set-Top Box (DTV-STB) Connection

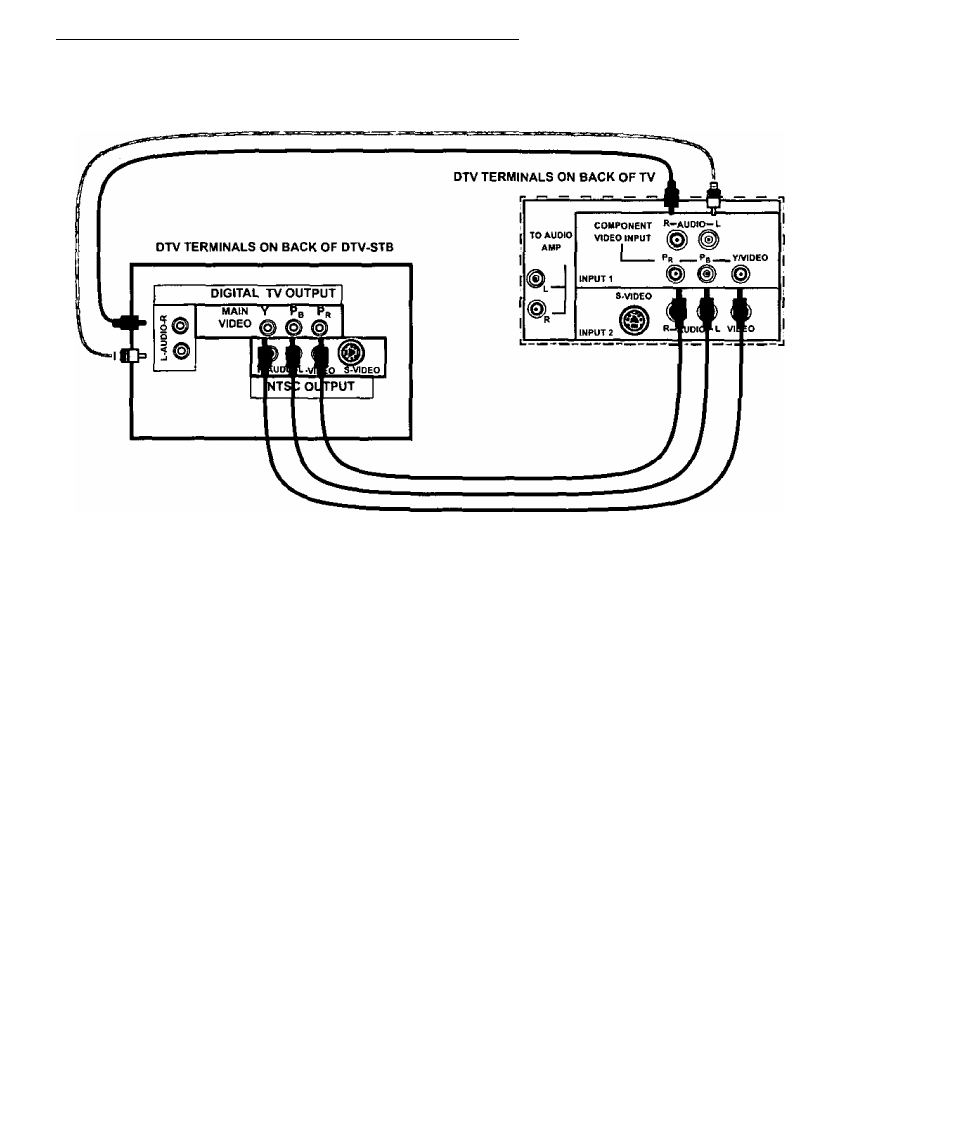

Use this diagram to connect the Panasonic DTV-STB (Digital TV-Set-Top Box) to the
back of your TV.
Note:
There are three video inputs, XP
b
^ and P
r
. Separate component color inputs provide
luminance and color separation. Use the L (left) and R (right) audio inputs.
