Chapter 5 Panel Views and Descriptions
12
5: Panel Views and Descriptions
Features Status and Indications
Steady
Yellow Compex WPE54G is operating at the
speed of 10Mbps. 1 LAN Link/Act
LED
Steady
Green Compex WPE54G is operating at the
speed of 100Mbps.
Steady
Green More than 1 wireless client is present in
the wireless network. 2 WLAN Link/Act
LED
Blinking
Green Activity is detected in the wireless
network.
Steady
Green The device is in access point or
gateway mode.
Blinking
Green The device is booting.
3 Diagnostic LED
Off The device is in Client mode.
Steady Blue Power is supplied to the device. 4 Power LED
Off No power is supplied to the device.
5 External
Antenna
Rotatable antenna
6 LAN RJ45
Ethernet Port
Using RJ45 Ethernet cable for connection.
5
3
4
1
2
5
8
7
6
U

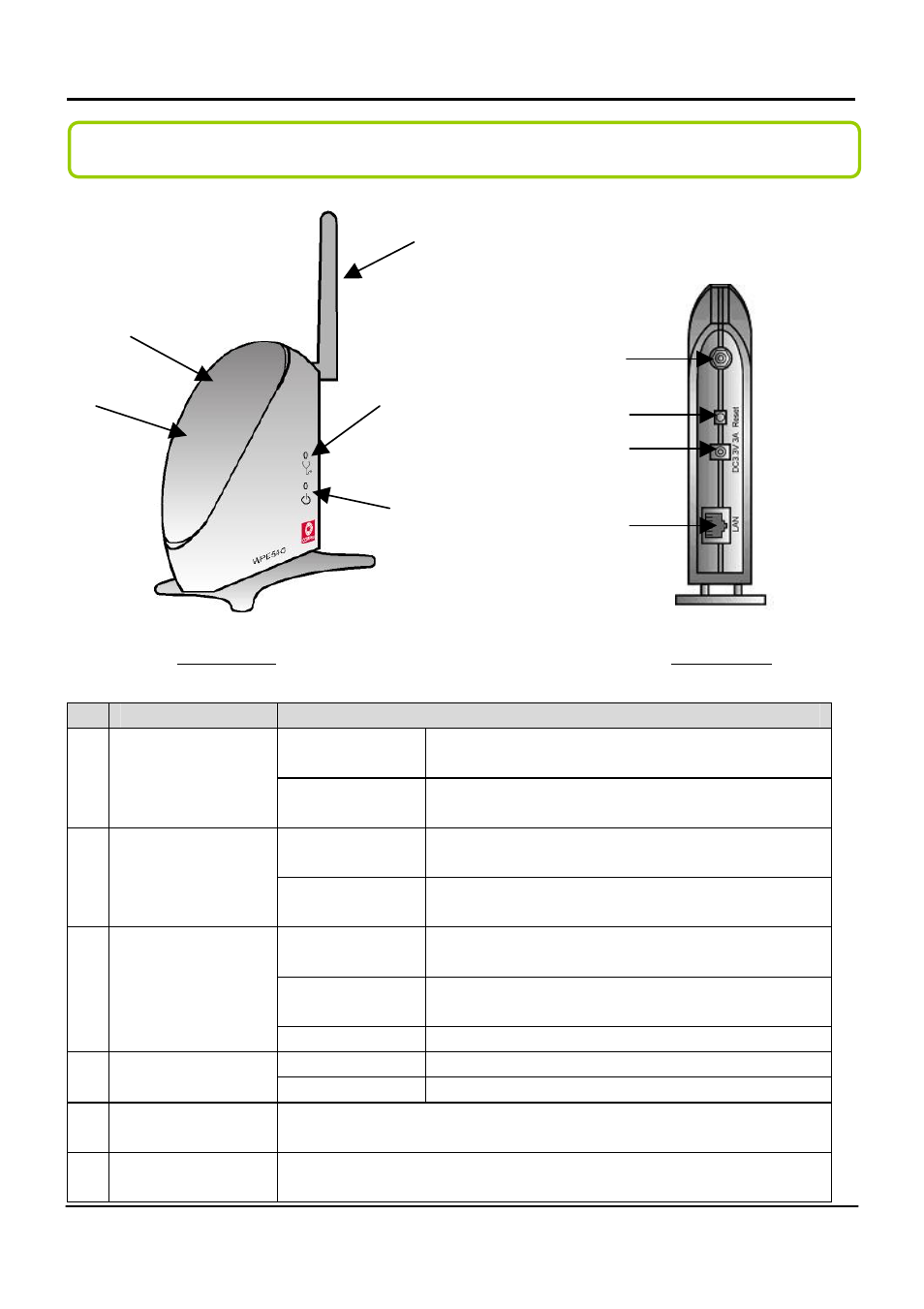

Front View
U
Back View
