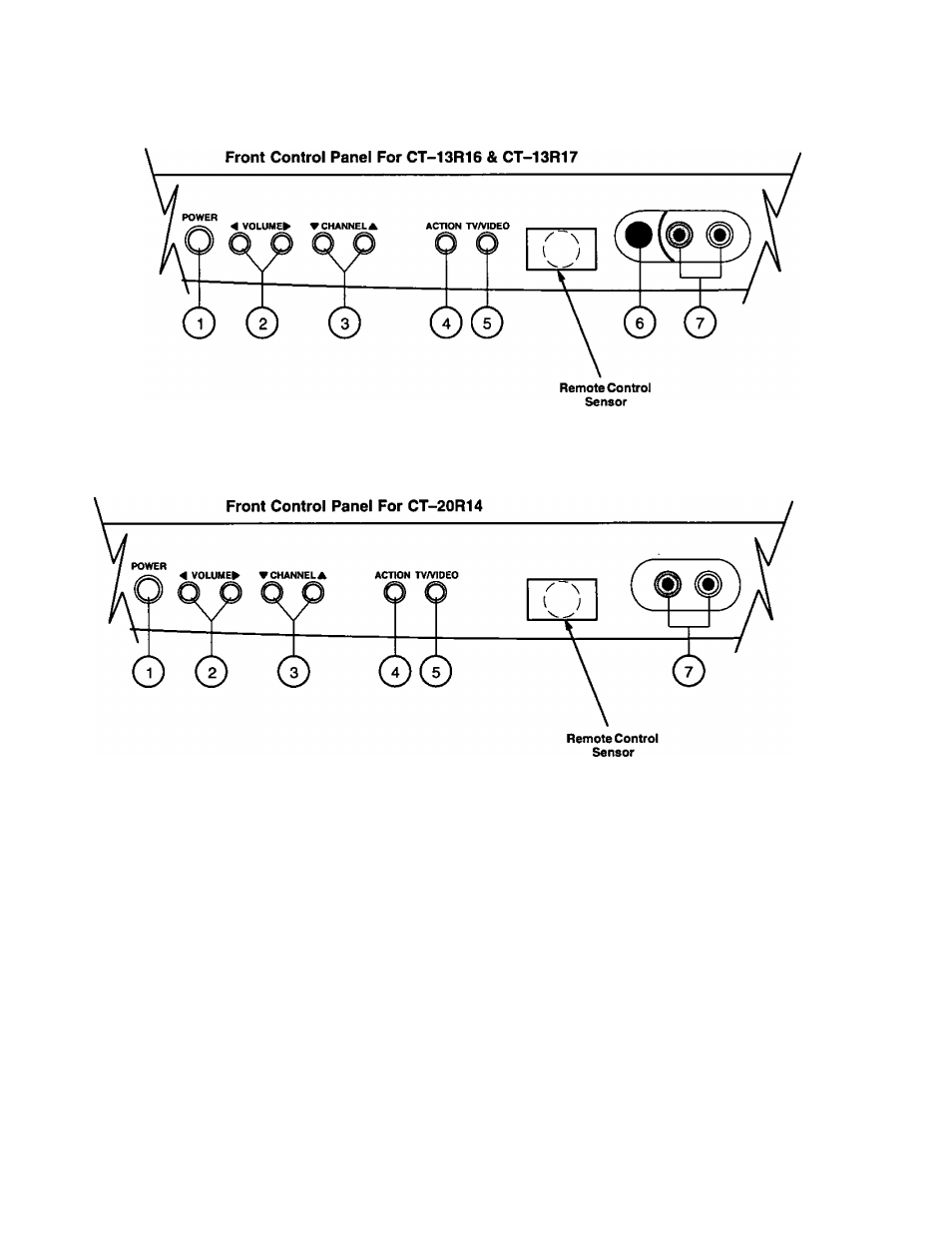

Location of Controls Receiver
Power Button
- Press to turn ON or OFF.
Volume Buttons
- Press to adjust Sound Level. Press to adjust Video Menus and select operating features when
menus are displayed.
Channel Buttons
- Press to select programmed channels. Press to highlight desired features when menus are
displayed.
Action Button
- Press to display Main Menu and access On Screen feature and Adjustment Menus.
TV/VIdeo Button
- Press to select TV or Video Input.
@ Earphone Jack (13” Models Only)
- Plug in an optional earphone for private monitoring of sound. This jack
accepts an earphone with a 1/8” mini plug.
Front A/V Input Jacks
- Used to connect a camcorder or other video devices to the front of the TV. (Refer to
Audio/Video Connection section for operation.)
- 9 -
