Installation Instructions KSA1021
5
13. Orient horizontal tray mounting bracket (G) as shown in
figure below. (See Figure 2)
14. Secure horizontal tray mounting bracket (G) to vertical tray
mounting bracket (H) using one carriage bolt (J) and one
knob (E). (See Figure 2)

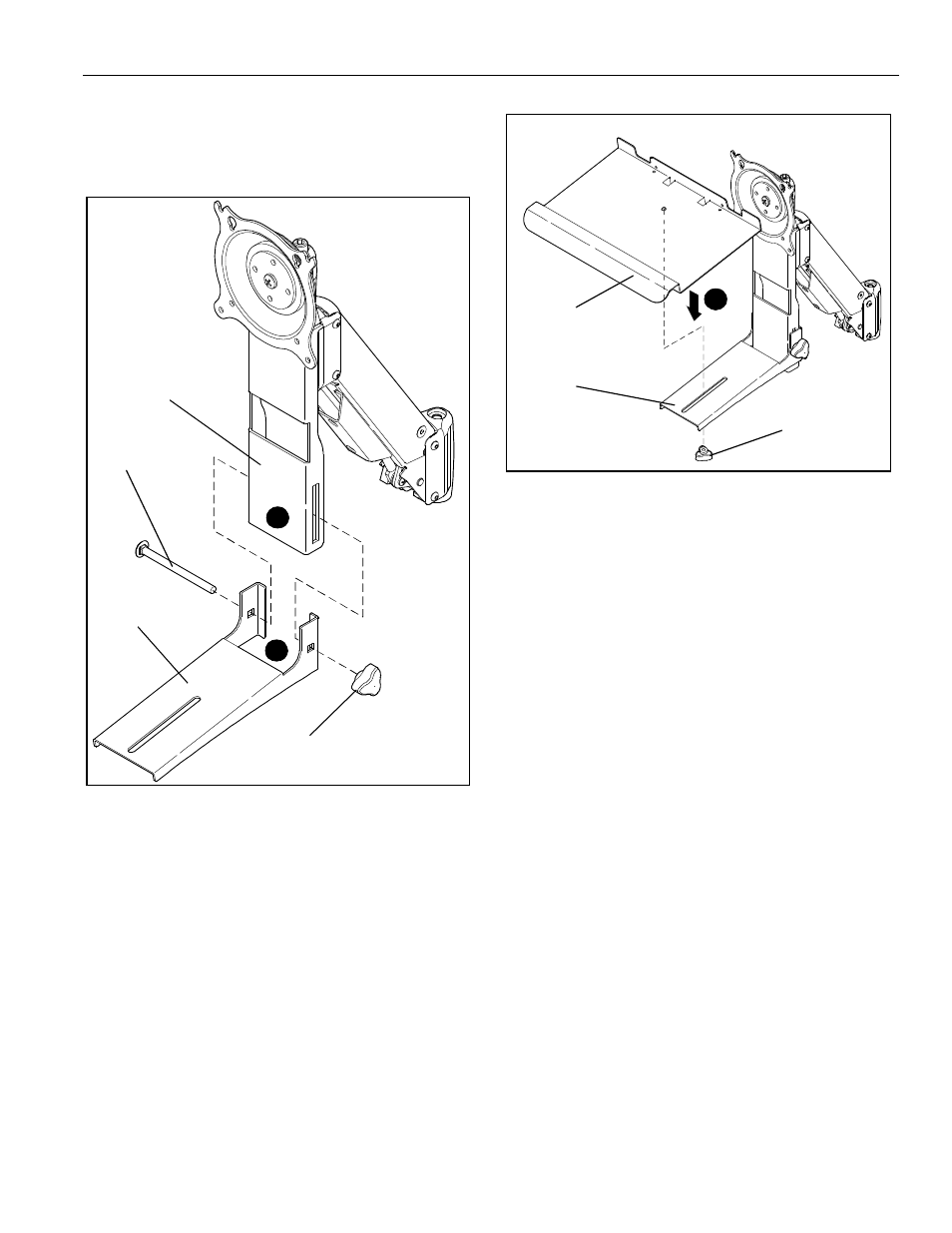

Figure 2
15. Orient tray (A) as shown. (See Figure 3)
16. Secure tray (A) to horizontal tray mounting bracket (G)
using one knob (E). (See Figure 3)
Figure 3
13
(G) x 1
(E) x 1
(J) x 1
14
(H) x 1
15
(A) x 1
(E) x 1
(G) x 1
