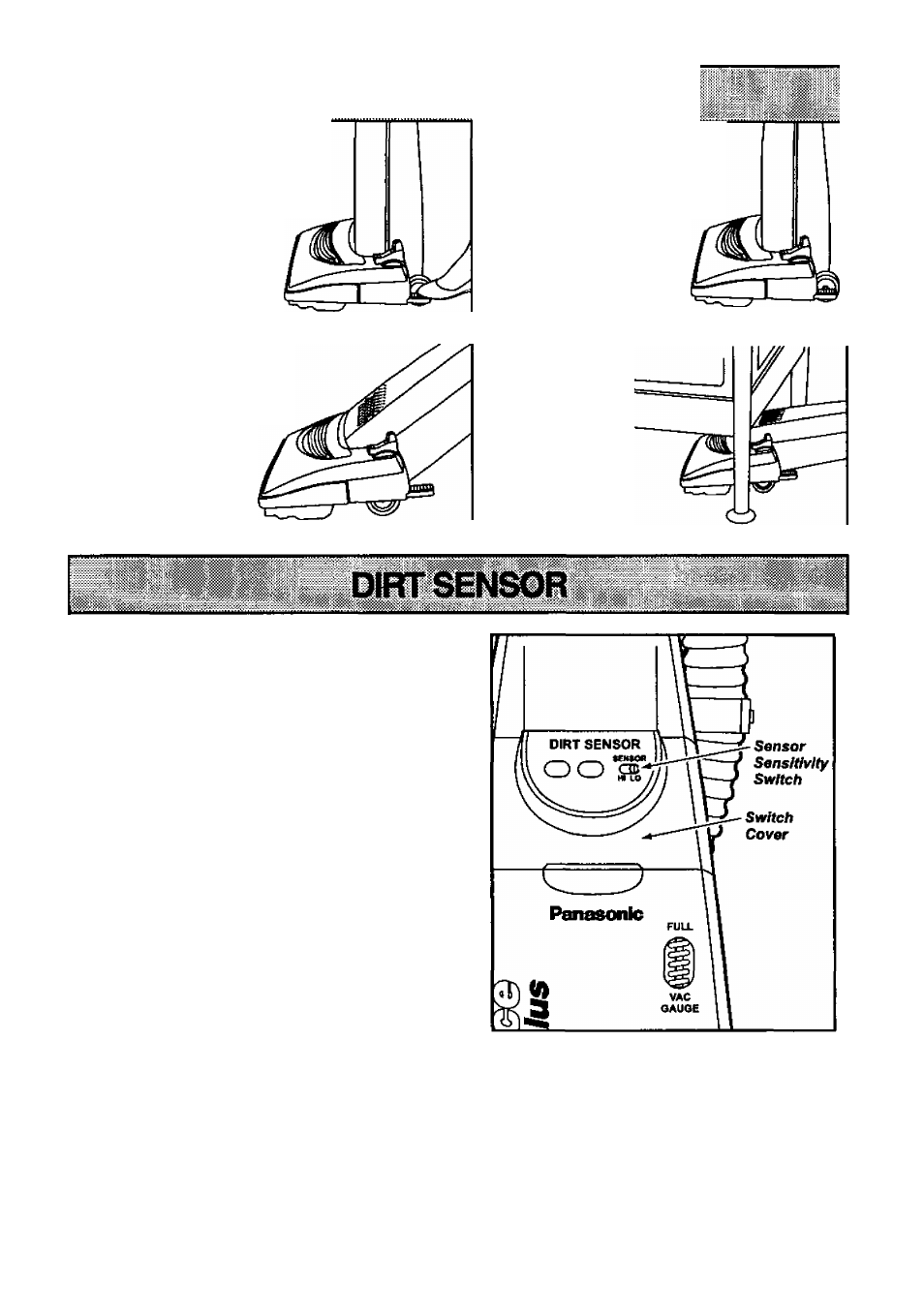

The handle may be lowered to
any position required. Step on
the handle release pedal as
indicated by the illustra'
tion and lower the
handle as desired.
1. Upright position
The handle locks in this posi­
tion for storage. The
handle should always
be in an upright posi­
tion when the attach­
ments are used.
2. Middle position
This position is for normai
cleaning.
3. Low position
This position
is used for
cleaning under
furniture.
OPERATION - As you vacuum, the red indica­
tor light will come on and stay on as long as the
sensor detects a high concentration of particles
passing through the cleaner.
The green light indicates that most of the
cleaning is complete.
The sensor switch allows you to select the
sensitivity of the dirt sensor. The switch can
be set to HI or LO sensitivity.
Set the sensor switch to the Hi position when;
• Cleaning bare floors.
• Cleaning carpet with low pile height.
Set the sensor switch to the LO position when:
• Cleaning heavily soiled areas.
• Cleaning carpet with deep pile.
• Cleaning new carpets.
Even with the sensor switch in the LO position, the dirt sensor will detect carpet fuzz, especial­
ly on new carpet, which may cause the red light to remain on longer than expected.
- 1 2 -
