1. Battery Case
2. Group Selection Switch
Refer to page 10.
3. Channel Selection Switch
Refer to page 10.
4. Windscreen (Metal)
5. Windscreen (Foamed Urethane)
6. Microphone Holder Clip
7. Condenser Microphone
8. Antenna (Provided)
9. Audio Input Level Trim [LEVEL]
to. Battery Status Indicator [ВАТТ]
This indicator light changes to red from green to
indicate need for battery replacement,
11. Audio Peak Level Indicator [PEAK]
•
This indicator lights on high audio peaks,
•
Adjust the audio level such that this indicator
lights on high audio peaks.

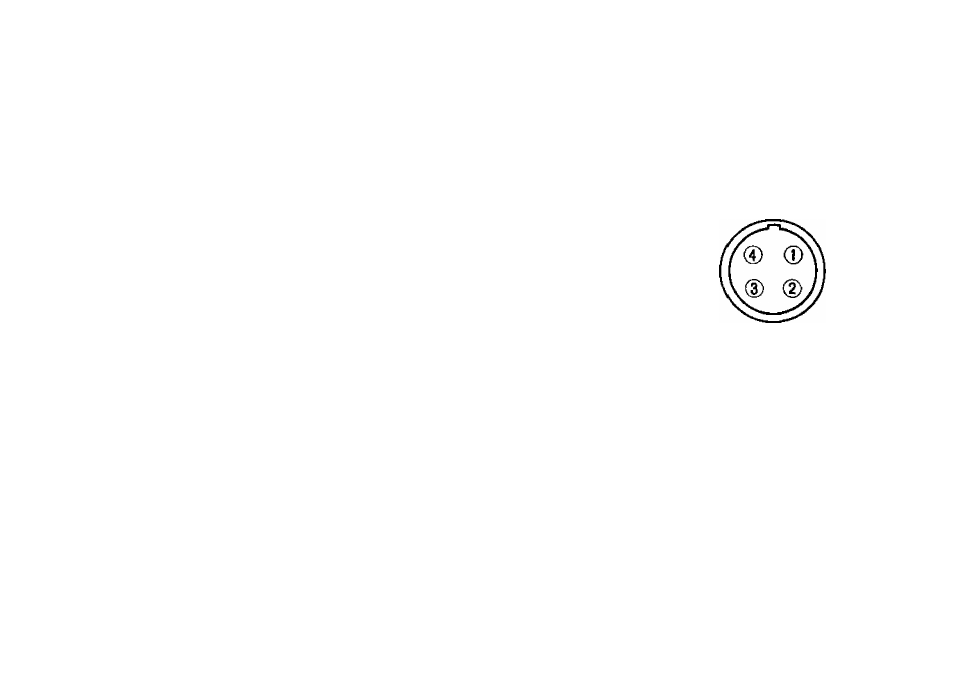

12. Audio Input Connector [IN]
The pin configuration ts shown below,
1. HOT 1 (Condenser Microphone)
2. HOT 2 (Dynamic Microphone)
3. Phantom Power Supply
(+3.1 V 2mA Max.)
4. Ground
13. Power On/Off Switch [POWER, ON/OFF]
14. Antenna Terminal
