Picture In Picture (PIP) Operation

PIP Operation with a VCR and Cabie Box

This television includes a Picture In Picture (PIP) feature. A second video
source (VCR, Camcorder, etc.) is required to provide a second picture.

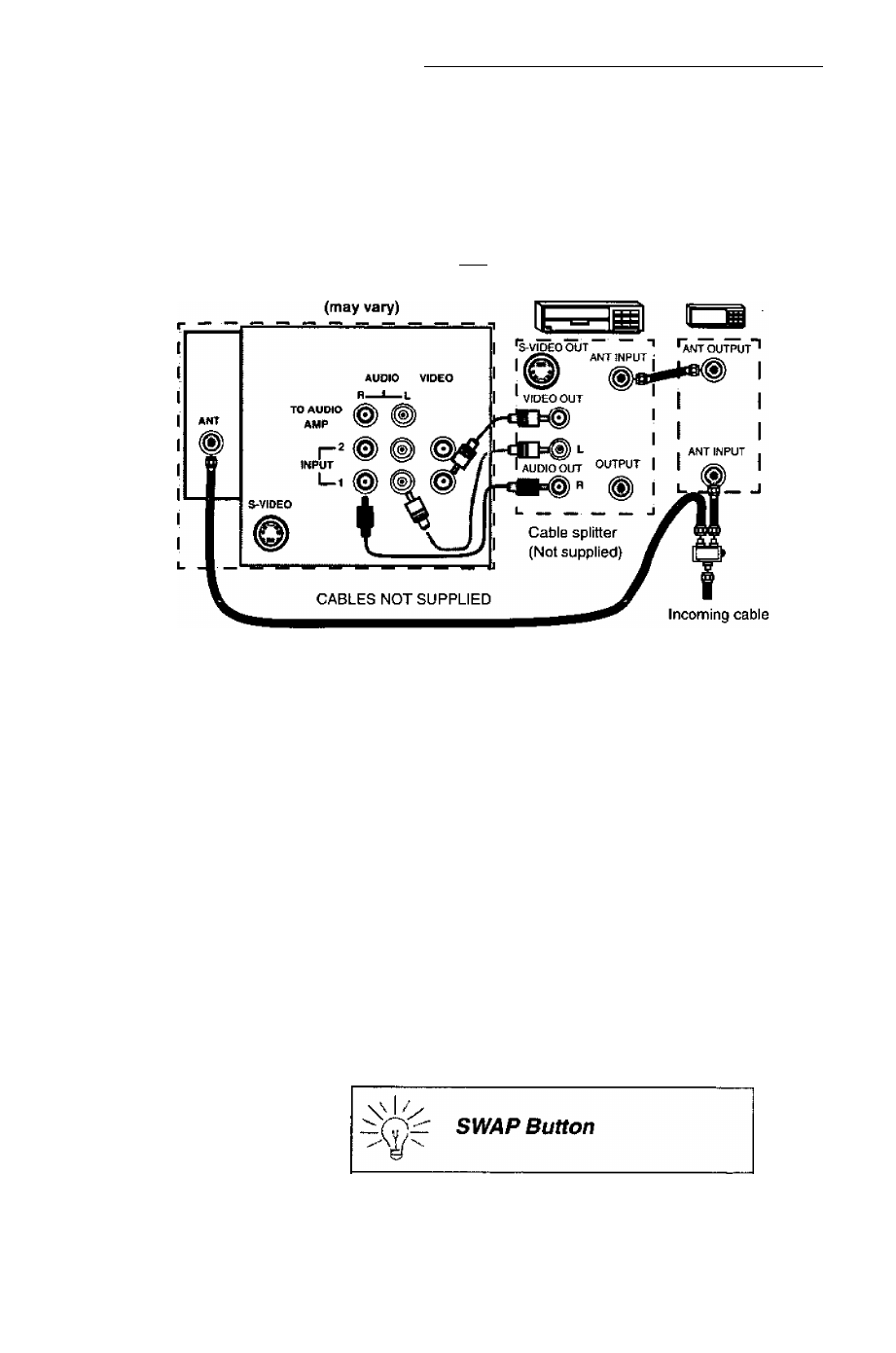

Connect your television to a VCR and Cable Box, as shown. (Some models

have only one video input and some models have an S-VIDEO video input.)

TERMINALS ON BACK OF TV

VCR

CABLE BOX

Note:

The Remote Control must be programmed with supplied codes to

operate the VCR and Cable Box. See

Programming the Remote

Control In the

Remote Control Quick Reference Guide.

Procedure

Press the PIP button on the Remote Control to display the PIP frame.

Note:

The PIP picture is the same as the main fxcture, initially.

To view a different picture in the PiP frame:

•

Press the TV/VIDEO button on the Remote Control to select

the video PiP source.

•

Verify the CABLE BOX and VCR are ON and the VCR is

tuned to channel 3.

•

Choose channeis for the

PIP

frame by pressing the CBL

button on the Remote Controi and using the numeric keypad

or CH up/down buttons.

•

Choose channels for the

Main Picture

by pressing the TV

button on the Remote Control and using the numeric keypad

or CH up/down buttons.

The SWAP button switches the PiP and Main

Picture source. Press the RECALL button for on

screen PIP and Main Picture source status.
