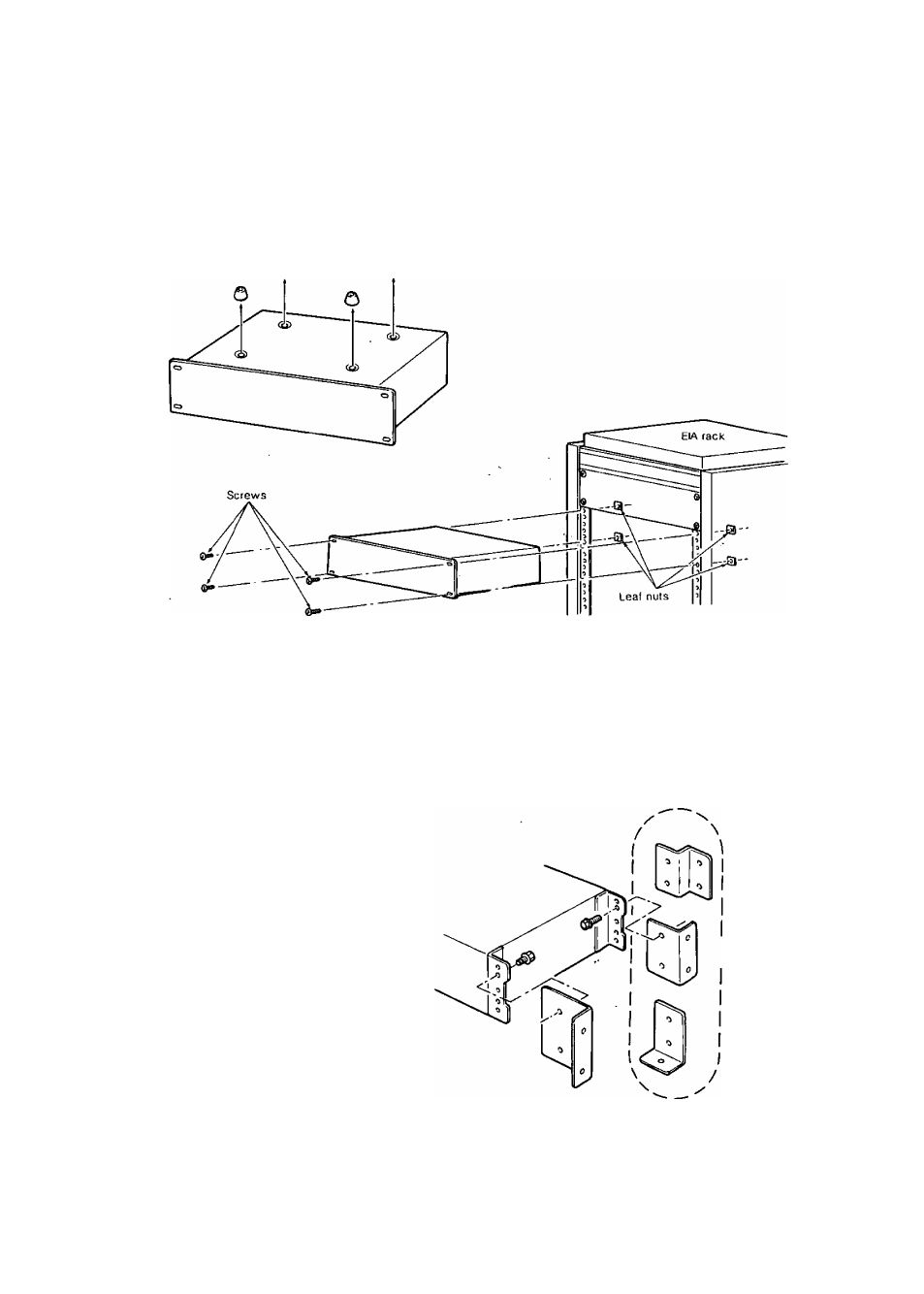

RACK MOUNTING
1. Remove the screws which are inside the rubber feet,
then detach the feet from the bottom of the amplifier.
2.
Mount .the power amplifier to the rack as shown
with four optional rack mounting screws (not supplied,
M5X12).
o
Rubber feet
Note
When transporting the machine while mounted in a
rack, the rear of the amplifier must be secured to the
rack. Use an angle with a thickness of at least 2 mm.
Rear-fixing angle:
Local procurement
A Rear-fixing angle for mounting side of rack.
B
Rear-fixing angle for mounting on bottom of rack.
C
Rear-fixing angle for mounting on rear of rack.
I
c
- 6 -
