170.880UK User Manual

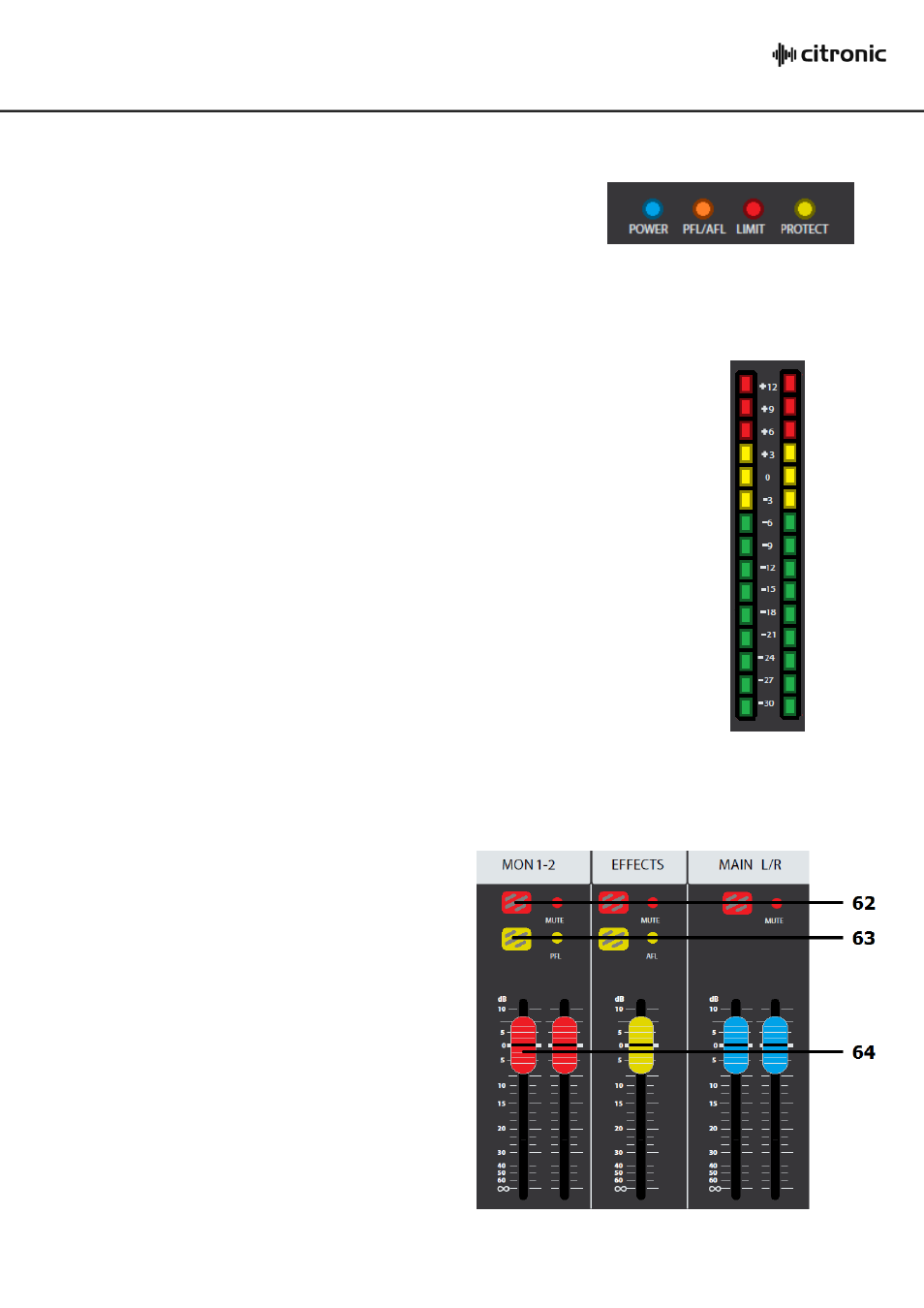

Status Indicators
The master section has 4 status LEDs, which indicate as follows.
POWER When lit, this indicates that the main power is on
PFL/AFL Pre-Fade or After-Fade Listen is active when lit
LIMIT Amplifier output clip limiter is active when lit
PROTECT Amplifier protection is active when lit
The amplifier is not operational when in protect mode, which indicates that a fault is detected.
Main Output Level Meters
The main output level meters comprise a pair of volume ladders with 15 LEDs in each.
These normally display the main left and right output levels unless PFL or AFL is active.
When one or more PFL or AFL buttons are pressed in, these ladders will show the output
of that channel (or those channels) directly.
This enables more detailed analysis of the signal level than can be shown by the channel
signal and clip LEDs alone.
When monitoring any signal levels, it is important to prevent the red LEDs from lighting
for anything longer than a brief flicker. Persistent lighting of the red LEDs indicates
clipping or distortion.
Master Fader Section
The master fader section controls output level for monitors 1 + 2, DSP and main L + R outputs.
62. MUTE Press to mute the relative output(s)
A red LED lights when muted.
63. PFL / AFL Activates Pre-Fader Listen for monitor
outputs or After-Fader Listen for DSP
Effects.The output of either is routed to
the headphones (33) output and
displayed on the main level meters
(see PFL section above)
A yellow LED lights when active
64. Faders Output level 60mm fader controls for
Monitors 1 + 2, Effects and Main L + R
Decibel markings (dB) give a reference
to the level setting applied.
