1
GENERAL INFORMATION
This pilot’s guide contains information about and instructions for operating the KTR
909/909A UHF Comm Transceiver with the KFS 599A UHF Comm Control Head.
The KTR 909 must be installed and operated with a KFS 599A UHF Comm
Control Head. The KTR 909A can be operated with either a KFS 599A UHF
Comm Control Head or a Radio Management System (RMS) using the ARINC 429
interface. This pilot’s guide only covers operation using the KFS 599A UHF
Comm Control Head. Refer to the RMS operating procedures on using the KTR
909A in an RMS installation.

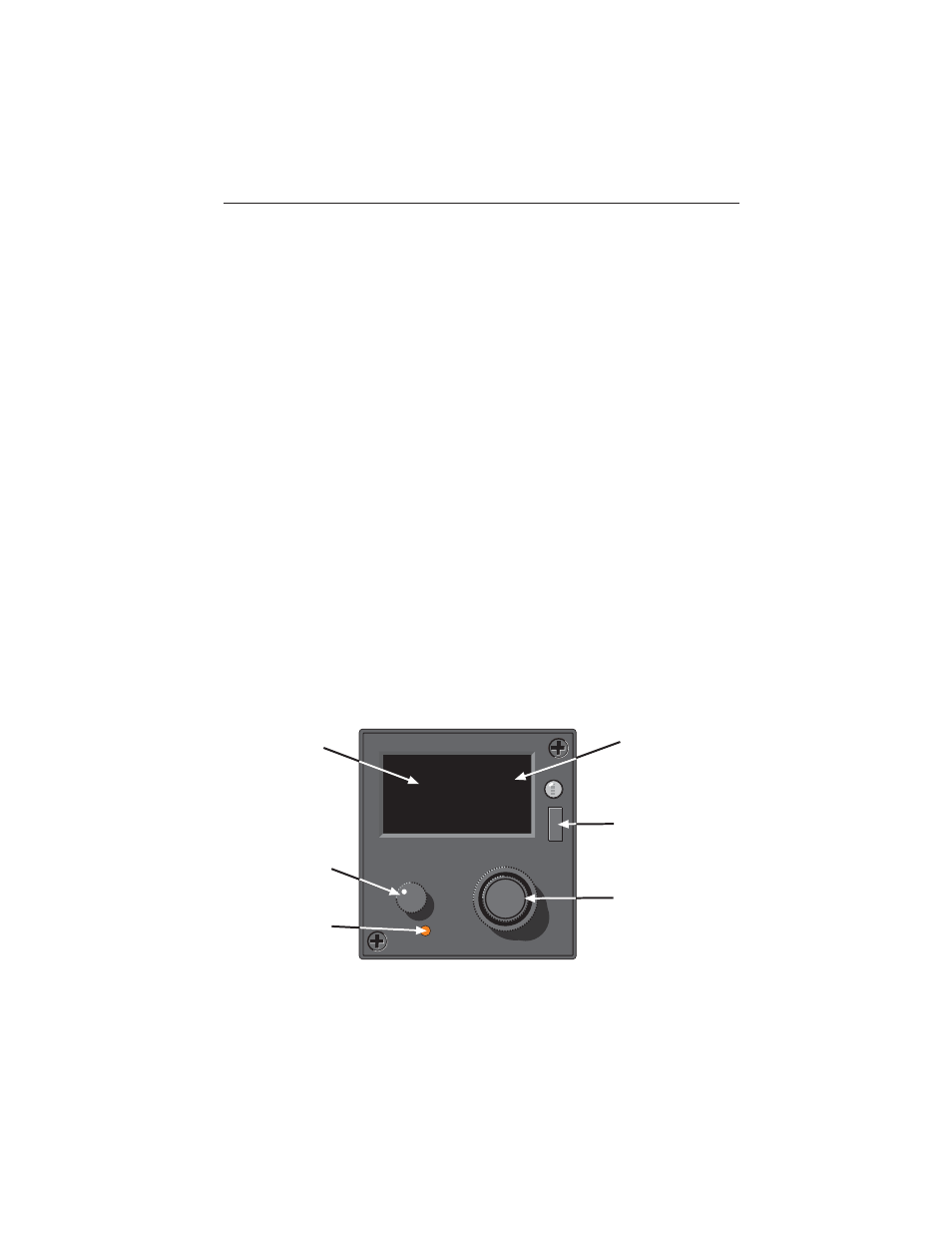

CONTROLS AND DISPLAYS
Controls
This section describes the operational controls of the KFS 599A UHF Comm
Control Head. The following controls are described:
• On/Off/Vol/Test Knob
• Channel Select Button
• Frequency/Channel Select Knob
• Push Tone Button
• Mode Select Button
UHF TRANSCEIVER
UHF
VOL
OFF
PUSH
TEST
B
CHAN
TX
MN
GD
CH20
399.97
PUSH
TONE
M
O
D
E
Annunciators
Mode Select Button
Frequency/Channel
Select Knob and
Push Tone Button
Channel Select
Button
On/Off/Volume
and Test Knob
Display
