FLIGHT PLANNING
Create a Flight Plan (Data View)
1 On the aviation Main Menu, tap the Flight Plan
soft key and then highlight the NEW FLIGHT
PLAN line and tap the NEW FPLAN soft key.
2 Tap on the INSERT soft key to open the virtual
keyboard page.
3 Enter an IDENT, Name, Location or Airway.
4 Tap on the Enter soft key .
5 Tap on the OK soft key to enter the selected
waypoint into the flight plan.
6 Repeat steps 2 to 5 for additional waypoints.
7 Tap on the SAVE & EXIT soft key to create the
flight plan.
8 Select the flight plan just entered.
9 Tap on the FLY FPLAN soft key to activate the
flight plan.
Create a Flight Plan (Map View)
1 On the aviation Main Menu, tap the Flight Plan
soft key and then highlight the NEW FLIGHT
PLAN line and tap the NEW FPLAN soft key.
2 Tap on the MAP VIEW soft key.
3 Pan through map with finger or stylus to locate
and tap on the first waypoint.
4 Tap on the INSERT WPT soft key.
5 Repeat steps 3 and 4 for additional waypoints.
6 When complete, tap on the CLEAR PTR soft key.
7 Tap on the SAVE & EXIT soft key.
8 Select the flight plan just entered.
9 Tap on the FLY FPLAN soft key to activate the
flight plan.
XM WEATHER (Optional)
1 On the Aviation Main Menu, tap on the WEATHER
soft key to show XM weather. You must have the
XM receiver installed properly and an active
subscription before weather can be shown on the
Weather page.
2 Tap on the CHOOSE PRODUCT soft key to select
the type of weather product that shows on the
Weather page.
AUTOMOTIVE
Simple Mode and Advanced Mode methods of
operation are available. This guide uses features found
in Simple Mode.
Go Drive Main Menu
•
Tap on the Find Address soft key to find your
destination and start navigating.

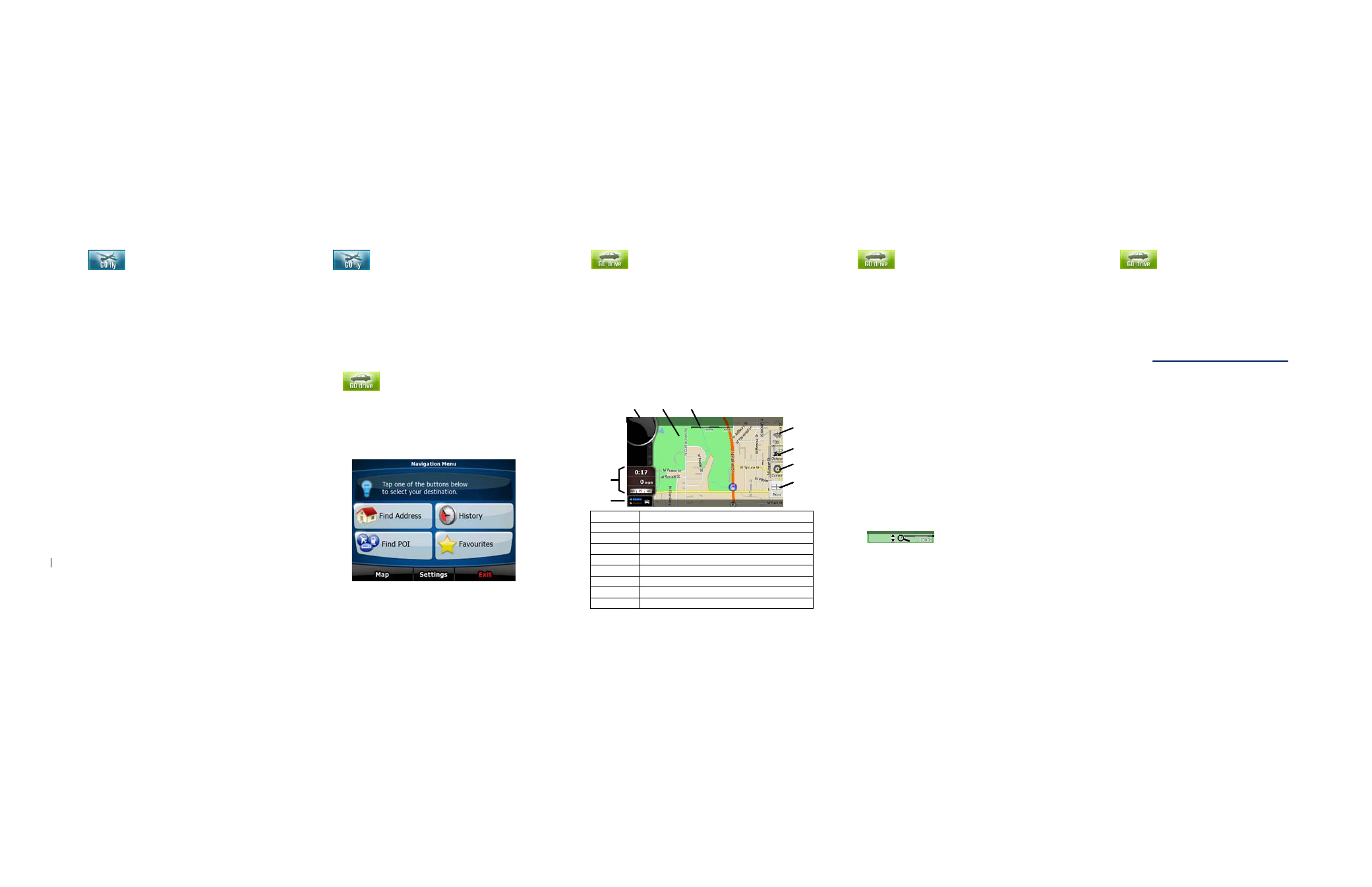

AUTOMOTIVE MAP PAGE
• Tap on the Find POI soft key to find Points Of
Interest.
•
Tap on the History soft key to show a listing of the
points previously visited.
•
Tap on the Favorites soft key to view a listing of
the user’s favorite places.
•
Tap on the Map soft key to show the map page.
•
Tap on the Settings soft key to change the
settings for Go Drive and to enter the Advanced
Navigation mode.
• Tap on the Exit soft key to close the automotive
mode and return to the Main Menu.
1 Turn Preview field
2 Main Map
3 Map Scale (Only in 2D mode)
4 2D / 3D soft key
5 Detour soft key
6 Cursor soft key
7 Menu soft key
8 Status Field (Soft key to Quick Menu)
9 Trip Data Field
AUTOMOTIVE MAP TIPS
Selection of a Destination
1 Pan to and then tap the point on the screen where
you would like to go.
2 Tap on the Cursor soft key (6) to activate the
cursor.
3 Tap on the Navigate To soft key to navigate from
your current position to the selected point.
TO Find a Point of Interest (POI)
(From an active route)
1 Tap on the MENU soft key (7).
2 Tap on the Find POI soft key.
3 Tap on one of the categories.
4 Tap on the Search soft key to display the virtual
keyboard page.
5 Enter the POI name and tap on the Done soft key.
6 Select the POI from the list.
7 Tap on the Select soft key to view the POI.
8 Tap on the Navigate To soft key to start
navigation.
TO Zoom and Tilt the Map
1 Tap on the Map Scale (3) or double tap anywhere
on the map (2).
2 Tap on the Magnifying Glass soft key.
3 Use the Plus and Minus soft keys on the left side
of the page to zoom in and out.
4 Tap the 3D soft key (4).
5 Tap on the Magnifying Glass soft key.
6 Tap the Up Arrow to tilt up, the Down arrow to tilt
down, the Left arrow to pan left and the Right
arrow to pan right.
AUTOMOTIVE MAP TIPS
7 Tap the Magnifying Glass soft key to disable
zooming or tilting.
Manual change between Day-Night Mode
1 Tap on the Status field (8).
2 Tap on the Half Moon soft key.
Advanced Mode Features
•
Trip Data fields are configurable.
•
Trip Computer is available thru the Status Field.
• Multi-point routes can be created.
•
See User manual for complete details.
