6002/6003/6004 WWDM Users Manual 4-1
Chapter 4
Software Interaction
4.1 Universal Chassis System Software
When the rack mount 6002/3/4 models are properly installed in a managed UCS 1000 Chassis,
the DMM module will open the required HyperTerminal™ software. The computer application
will display the screenshots shown in this section.
Note: For additional HyperTerminal access instructions refer to the DMM Users Manual.
To view the UCS Chassis Management screen that identifies installed WDM modules:
• Access the EdgeAccess UCS DMM Main Menu screens as shown in Figure 8.
• Choose number 3, or “Manage or access a specific Chassis”, and press the Enter key.
• The identified UCS Chassis number will be highlighted, [Chassis 1], then press .
• The Chassis Management screen will appear showing the selected module. See Figure 9.

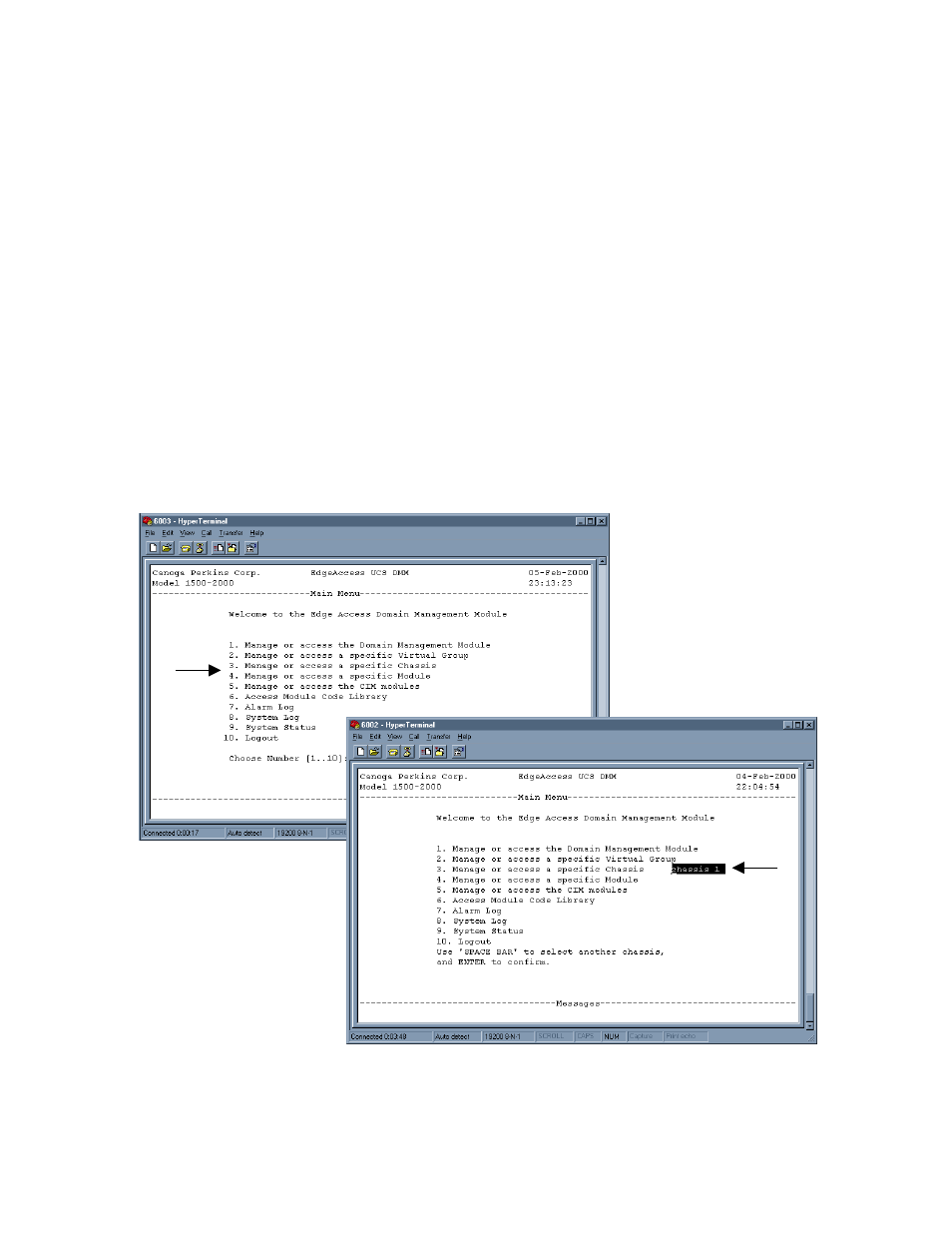

Figure 8. EdgeAccess UCS DMM Main Menu Screens
